Owner’s Manual 11
ENGLISH
Size
This room air conditioner is
designed for installation in standard
double-hung windows with actual
opening widths from 22" to 36".
The upper and lower window sash
must open sufficiently to allow a
clear vertical opening of 13" from the
bottom of the upper sash to the
window stool.
WARNING: This product is a WINDOW AIR CONDITIONER.
As such, a standard single-hung or double-hung window is required
for proper installation. Non-window installations, including using
sleeves, holes in walls, and other installations are not recommended.

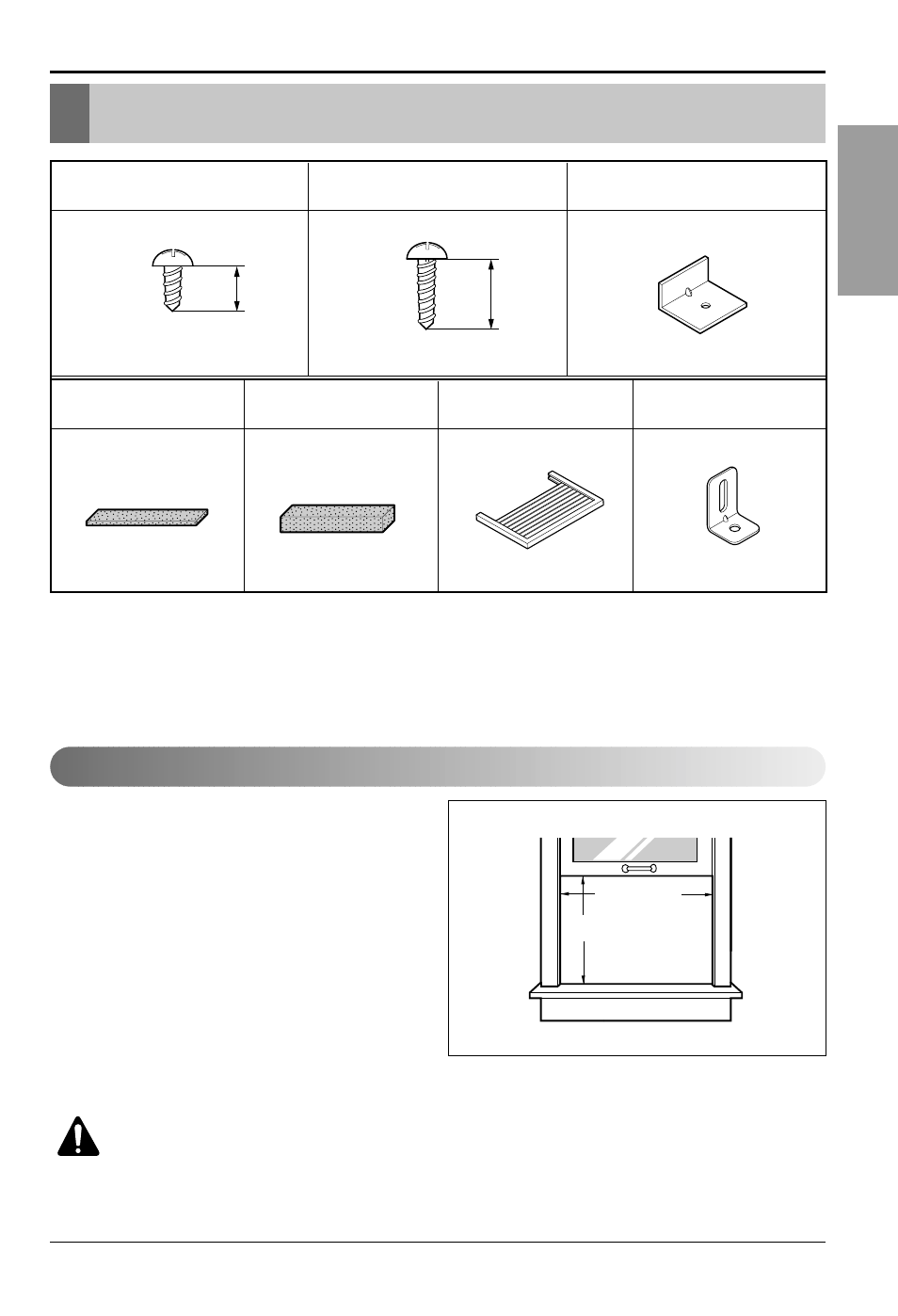

Have the following tools available for installation:
* Screwdriver (Slotted and Phillips) * Ruler
* Knife * Hammer
* Pencil * Level
Installation
Type B: 5 EA
(Wood Screw)
Type A: 11 EA
(Short Screw)
Type C: 3 EA
(L Bracket)
Type E: 1 EA
(Sash Seal)
(Not adhesive backed)
Type D: 1 EA
(Seal Strip)
(Adhesive backed)
Type F: 2 EA
(Guide Panel)
Type G: 1 EA
(Support Bracket)
10mm
16mm
13" min
22" to 36"
Installation
Window Requirements
