Hooking Up the Components
9
US
HT-1800DP 4-244-184-11(2) US
y
AM
FM
75
Ω
COAXIAL
DIGITAL
ANTENNA
MONITOR
SUB
WOOFER
VIDEO 1
VIDEO 2
DVD
MD/TAPE
CD
OPTICAL
VIDEO 2
IN
DVD IN
COAXIAL
IN
OUT
IN
AUDIO IN AUDIO IN
AUDIO OUT AUDIO IN
VIDEO IN VIDEO IN
VIDEO OUT VIDEO IN
VIDEO OUT
AUDIO
OUT
L
R
VIDEO
IN
INPUT
C
IN
VIDEO
OUT
R
AUDIO
OUT
OUTPUT
L
Ç
B
VIDEO
OUT
R
AUDIO
OUT
VIDEO
IN
AUDIO
IN
OUTPUT
INPUT
L
IN
OUT
З
З
B
B
AUDIO OUT
VIDEO
OUT
L
R
OUTPUT
B

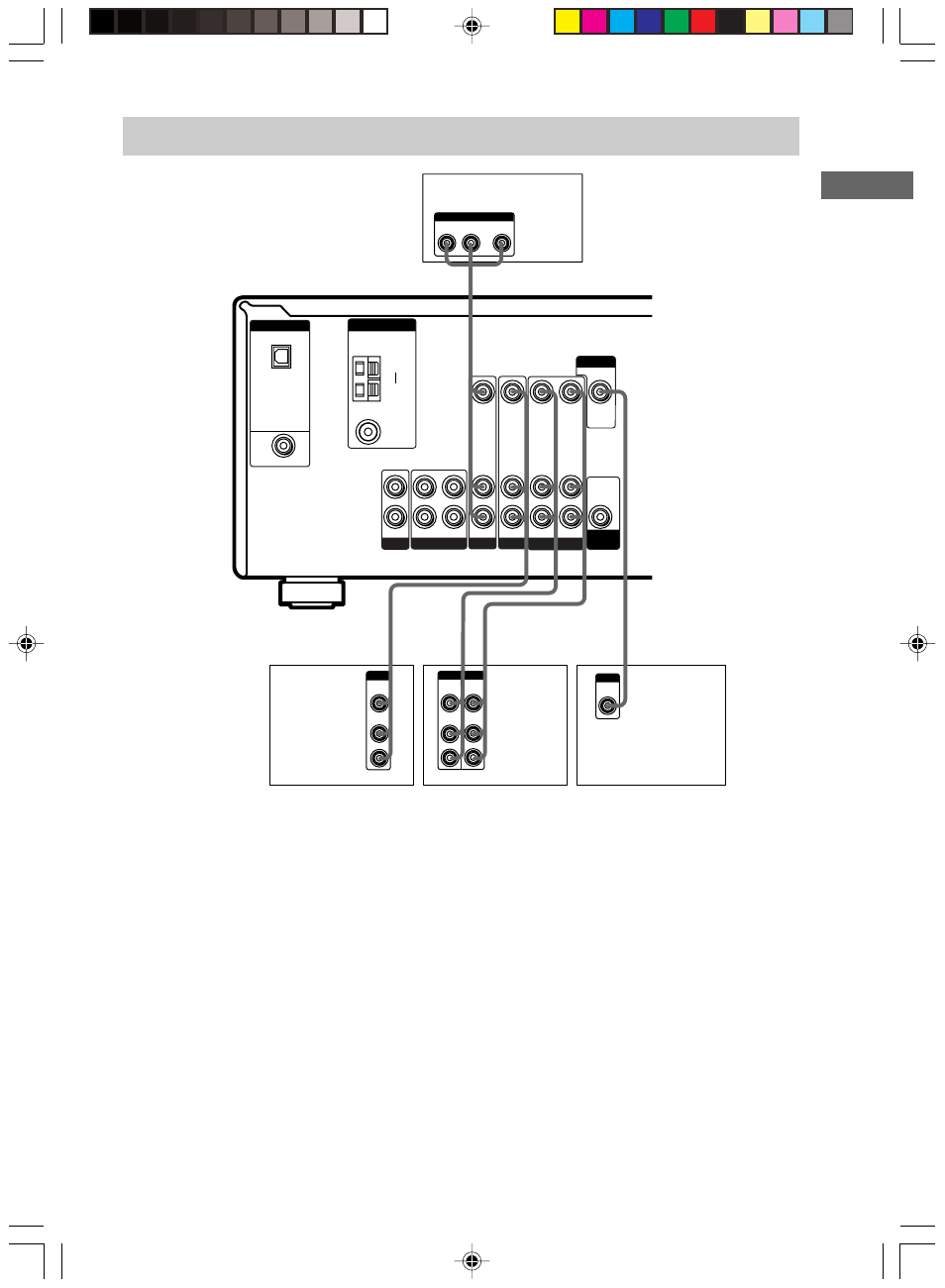

Video component hookups
TV monitor
DVD player
Note on video component
hookups
You can connect your TV’s audio output jacks
to the VIDEO 2 AUDIO IN jacks on the
receiver and apply sound effects to the audio
from the TV. In this case, do not connect the
TV’s video output jack to the VIDEO 2
VIDEO IN jack on the receiver. If you are
connecting a separate satellite tuner, connect
both the audio and video output jacks to the
receiver as shown above.
Satellite
tuner or
VCR
VCR
