AV Bridge CONFERENCE
Vaddio AV Bridge CONFERENCE - Document Number 342-0767 Rev A Page 7 of 32

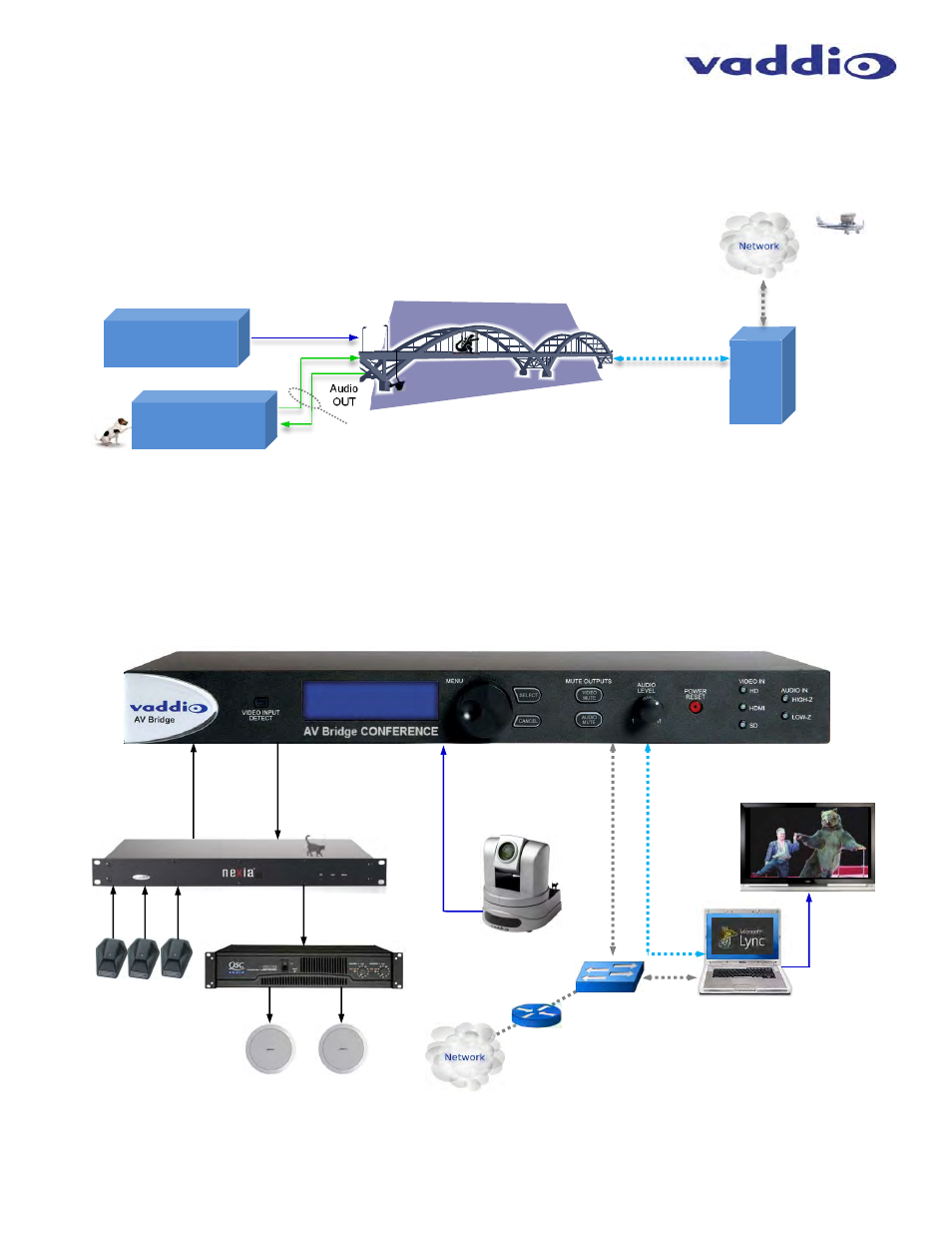

Diagram: The simple way to look at AV Bridge CONFERENCE
The AV Bridge CONFERENCE “bridges” the A/V signals into the PC for applications like UC conferencing, lecture
capture, recording, storage for later playback, editing, distribution and other programs that can manipulate the A/V
content. With the 2-way analog audio, the AV Bridge CONFERENCE is perfect for most UC conferencing
applications.
Diagram: UC Conferencing Application Example
This system diagram depicts the AV Bridge CONFERENCE in a UC Conferencing application using an existing or
new room audio system (providing for 2-way audio), video source, a PC, network and room monitor. The AV
Bridge CONFERENCE will output USB 2.0 streams or IP streams, but not simultaneously.
A/V Bridge CONFERENCE
(It‘s still a Metaphor)
Video Sources to
INPUT of Bridge
PC
USB 2.0 Out
(STD UVC &
UAC Drivers)
HD Video IN
Audio
OUT
Cessna 172
(Still not included)
Audio IN
Room DSP Mixer
with AEC
HD Video Camera or
Video Switcher
Laptop with
MS Lync
USB 2.0, with UVC (video) &
UAC (audio) Standard Drivers
Network
Switch &
Router
Room
Speakers
USB 2.0
Network,
Control or
Streaming
Room Mics
Balanced or
Unbalanced
Audio Line IN
Balanced or
Unbalanced
Audio Line
OUT
Mic Inputs
Line Level
Audio OUT
Room’s PRO
DSP Mixer
w/AEC
PRO
Amplifier
HD Video
HDMI or YPbPr
Speaker
OUTPUTS
2-Way
Analog
Audio
Ethernet
Room Monitor
HD Video Out
(HDMI, DVI or
RGBHV) from
computer
Simulated
Dancing Bear
Video Feed
2-Way Audio
