Edge Lighting Cody LED Picture Light User Manual

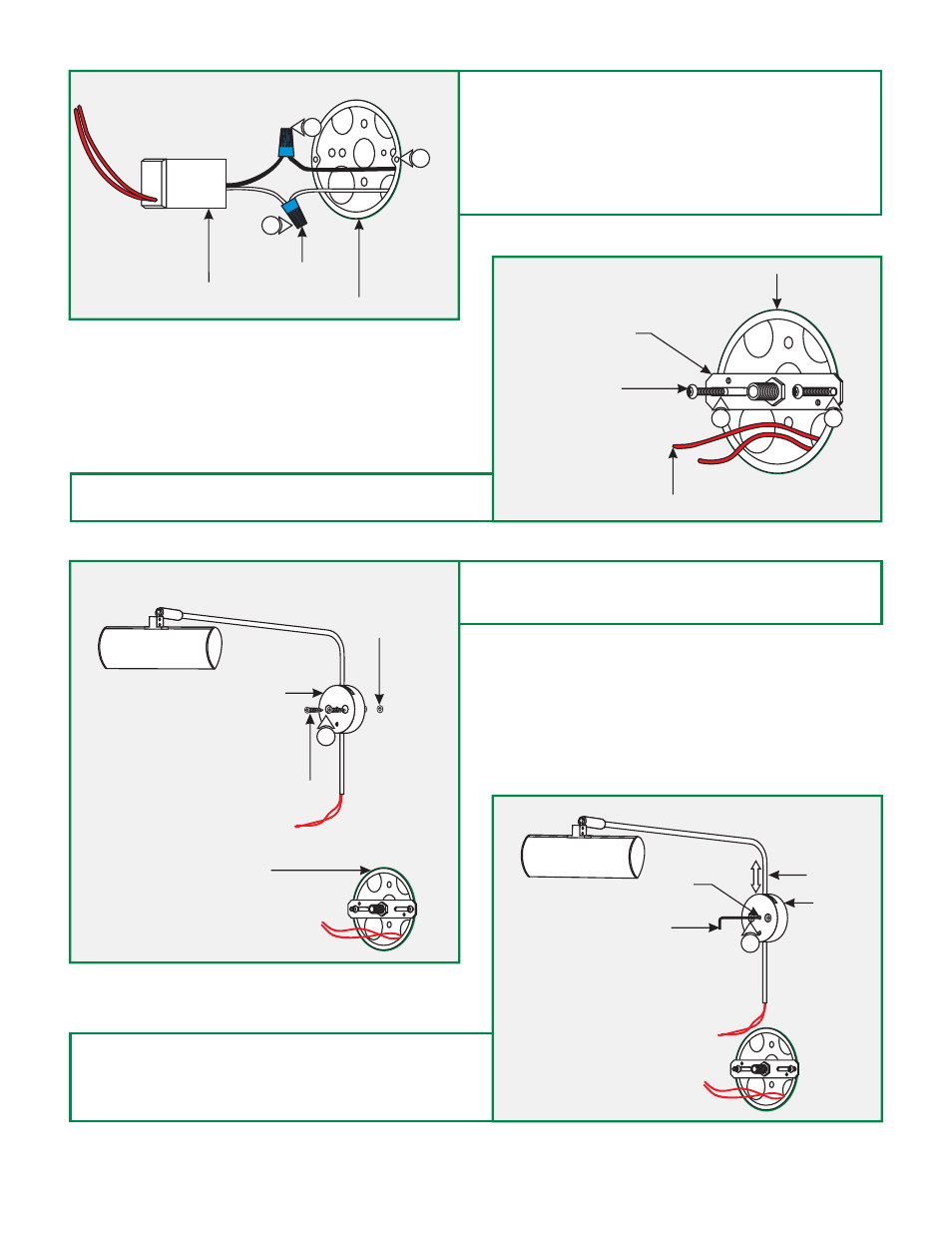

Page 2
2
C
LED POWER SUPPLY
WIRE NUT
5
6
ELECTRICAL BOX
7
5: Connect the white LED power supply wire to the neutral
power wire with a wire nut.
6: Connect the black LED power supply wire to the hot power
wire with a wire nut.
7: Place the LED power supply and all wire connections inside
the electrical box.
D
CROSSBAR
ASSEMBLY
#8-32 SCREW
ELECTRICAL BOX
POWER WIRE
8
8
8: Mount the crossbar assembly to the electrical box holes with
the provided #8-32 screws.
E
ANCHOR
#8 SCREW
MOUNTING
BRACKET
ELECTRICAL
BOX
9
9: Line up the mounting bracket holes with the anchors and
secure the fixture to the anchors with the two #8 screws
provided.
ARM
F
2MM ALLEN WRENCH
M4 SET
SCREW
10
10: To adjust the Cody height, loosen the two M4 set screw on
the mounting bracket with the provided 2mm Allen wrench.
Adjust the Cody by sliding it up or down. When the desired
height is achieved tighten the two M4 set screws with the
2mm Allen wrench.
MOUNTING
BRACKET
