0-10V Dimming
LED +
LED -
L N G
L
N
PDS3
LIGHTOLIER:
ZP600FAM120
CONTROLLER
RED
PURPLE
GRAY
RED
RED/BLACK
BLACK
WHITE
LED SOFT STRIP

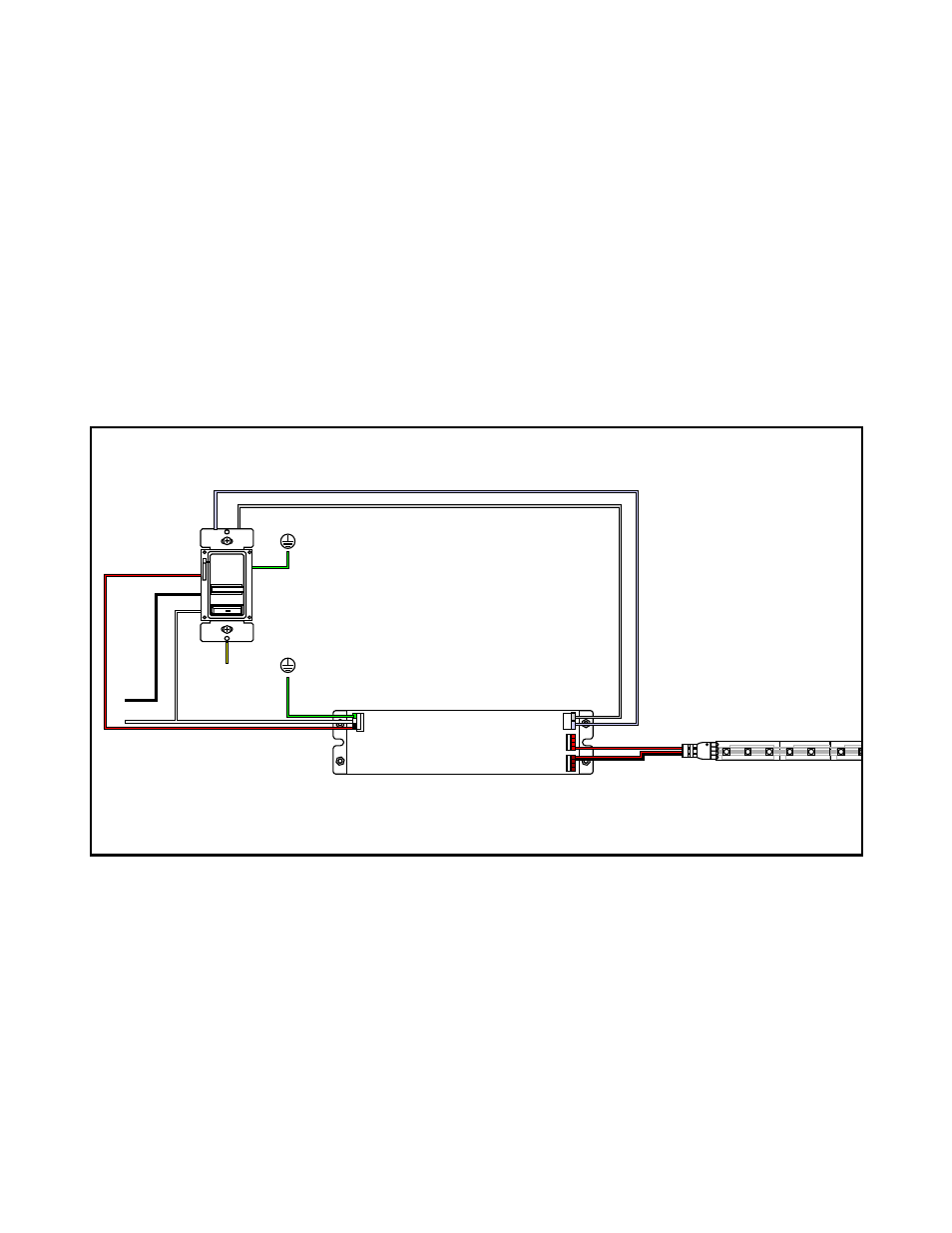

Wiring Diagram
