REPLACEMENT PARTS LIST

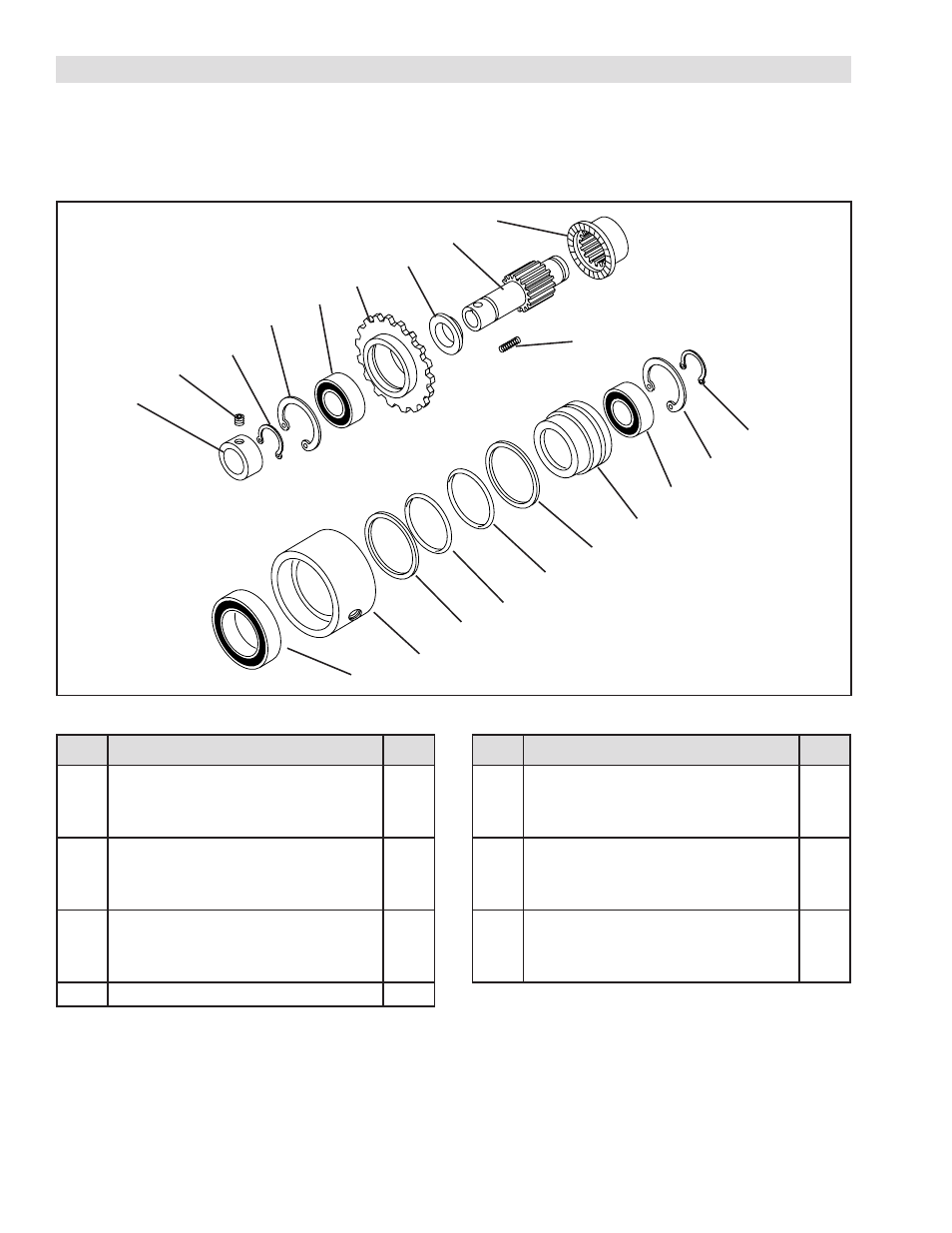

The item or balloon number for all Nexen products is used
for part identification on all product parts lists, product
price lists, unit assembly drawings, bills of materials, and
instruction manuals.
When ordering replacement parts, specify model designa-
tion, item number, part description, and quantity. Purchase
replacement parts through your local Nexen Distributor.
2
20
1
7
3
8
10
11
18
6
5
15
14
13
12
4
8
10
11
9
1
Denotes Repair Kit Item. Repair Kit Product No. 911385.
ITEM
DESCRIPTION
QTY
1
Hub
1
2
Drive Ring
1
3
Drive Sprocket
1
4
Piston
1
5
Cylinder
1
6
Hub Collar
1
7
Backing Plate
1
8
1
Ball Bearing
2
9
1
Ball Bearing
1
10
Retaining Ring (Int.)
2
ITEM
DESCRIPTION
QTY
11
Retaining Ring (Ext.)
2
12
1
Back-up Ring
1
13
1
O-ring Seal
1
14
1
O-ring Seal
1
15
1
Back-up Ring
1
18
Set Screw
2
19
Key (not shown)
1
20
1
Compression Spring
3
22
Air Line (not shown)
1
