INTRODUCTION

INSTALLATION

Nexen’s UH01 is an Ultrasonic Web Edge Position Sensor, designed for use with Nexen Web Guide Amplifiers.

The UH01 senses the edge of transparent film, even if the film has coating or printing which on occasion reaches the
edge of the film. Because the sensing medium is ultrasonic, the UH01 is ideally suited for use with any photo sensitive
material.

Install Support Bar either

side (Unwind) Support

Bar must be part of Main

Machine Frame.

Install Support Bar either

side (Mid-Process).

Last Machine

Roll

FIGURE

Roll attached to

Unwind Stand

Guide Roll

Mechanism

Install Support Bar

either side (Rewind).

Support Bar must be

part of Rewind Stand.

First Machine

Roll

FIGURE

Adjustment

Screw Lock

Bar

Clamping

Screws

Adjustment

Screw lock

Hex Nut

Adjustment

WEB

θ

FIGURE

X

Y

WEB

ROLL OR

GUIDE BAR

GAP = X + Y

and X = Y

FIGURE 5

NOTES:
• Install UH01 in an area where the ambient

temperature is between °F [0°C] and 10°F

[50°C] and is free of rapid temperature changes.

• Install UH01 in an area that is free of drafts.
• Sending and Receiving elements of the Sensor

must not be exposed to dirt or moisture.

• Never touch Sending or Receiving elements with

metal objects.

MOUNTING BRACKET

1. Secure UH01 to threaded extension of Mounting

Bracket Adjusting Screw (See Figure 2).

NOTE: Make sure lock nut on threaded extension is

tight against UH01.

2. Secure Mounting Bracket to customer supplied

sensor mounting bar (1 In. [25 mm] square )
mounted across web (See Figure 3).

SENSING ANGLE

1. Adjust UH01 until angle y is 75

o

or less. This will

reduce any sensing errors caused by web path
fluctuations (See Figure 4).

NOTE: If it is impossible to maintain the angle

described, provide a roll or guide bar which will

ensure that the web path stays in the middle of

the sensor gap (See Figure 5).

The UH01 has two different output voltage ranges to meet the requirements of different controllers:
Hi: 0 - 5 VDC Lo: 0 - 300mVDC

NOTE: The UH01 selector switch comes factory set to Lo to operate properly with Nexen web guide controllers.

To ensure proper operation with other controllers, set the UH01 sensor output selector switch to Hi or Lo ac-

cording to the controller’s requirements.

ADJUSTING THE OUTPUT VOLTAGE SETTING

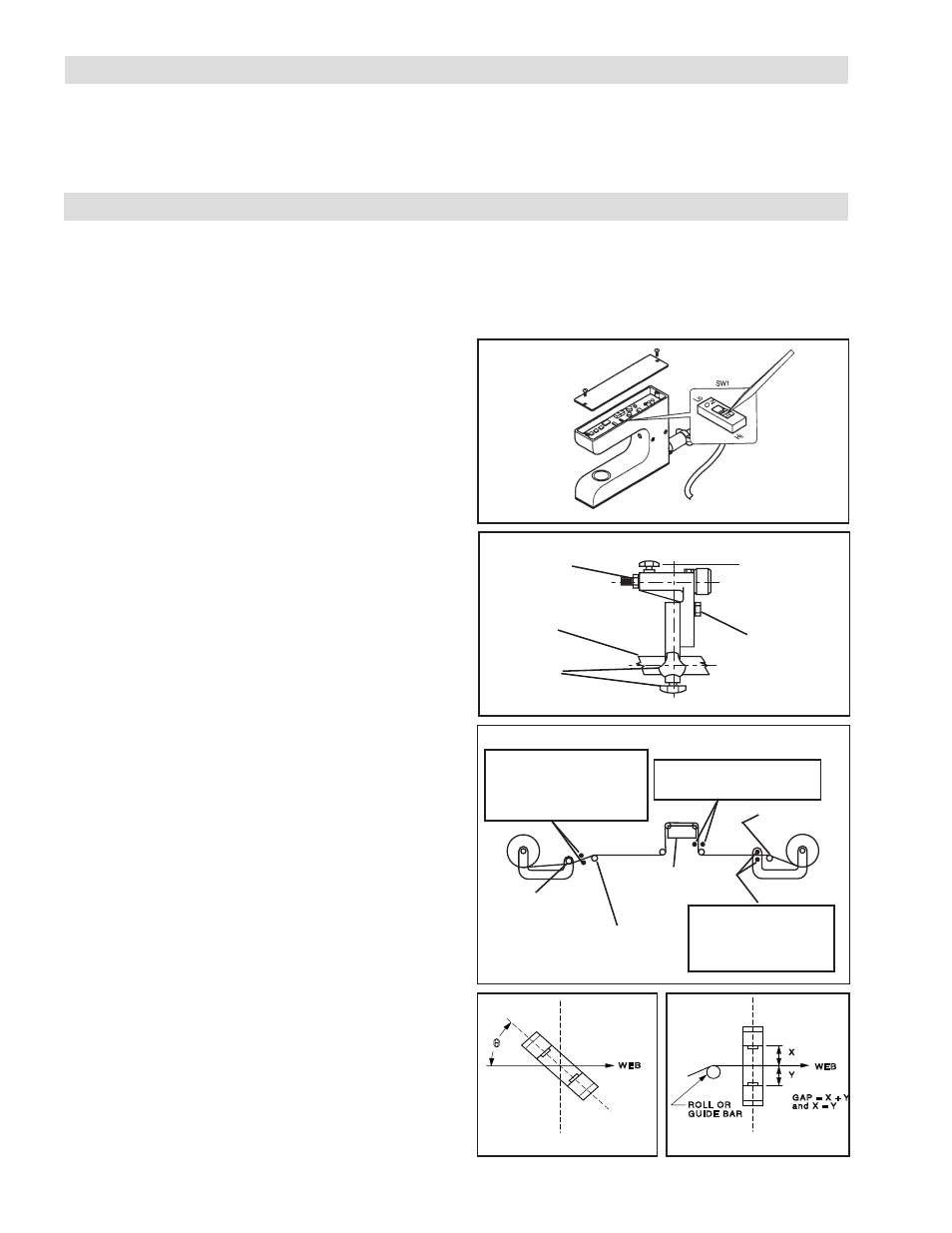

1. Remove the selector switch cover to access the

Hi/Lo switch. (See Figure 1)

2. Use a small, flat-blade screwdriver to adjust the

Hi/Lo output switch (SW1) to the desired setting.

FIGURE 1
