8. PANEL DESCRIPTION-MS8/MS12S
SPO
TLIGHT
PASSIVE SUBWOOFERS: MS12S
a).
Receive the signal coming from an external amplifier.
(SPK +1/-1 connected;+2/-2 not connected).
INPUT:
b).
Power output for satellite speaker, under passive crossover
OUTPUT:
filtered at 125Hz (SPK +1/-1 connected; +2/-2 not connected).

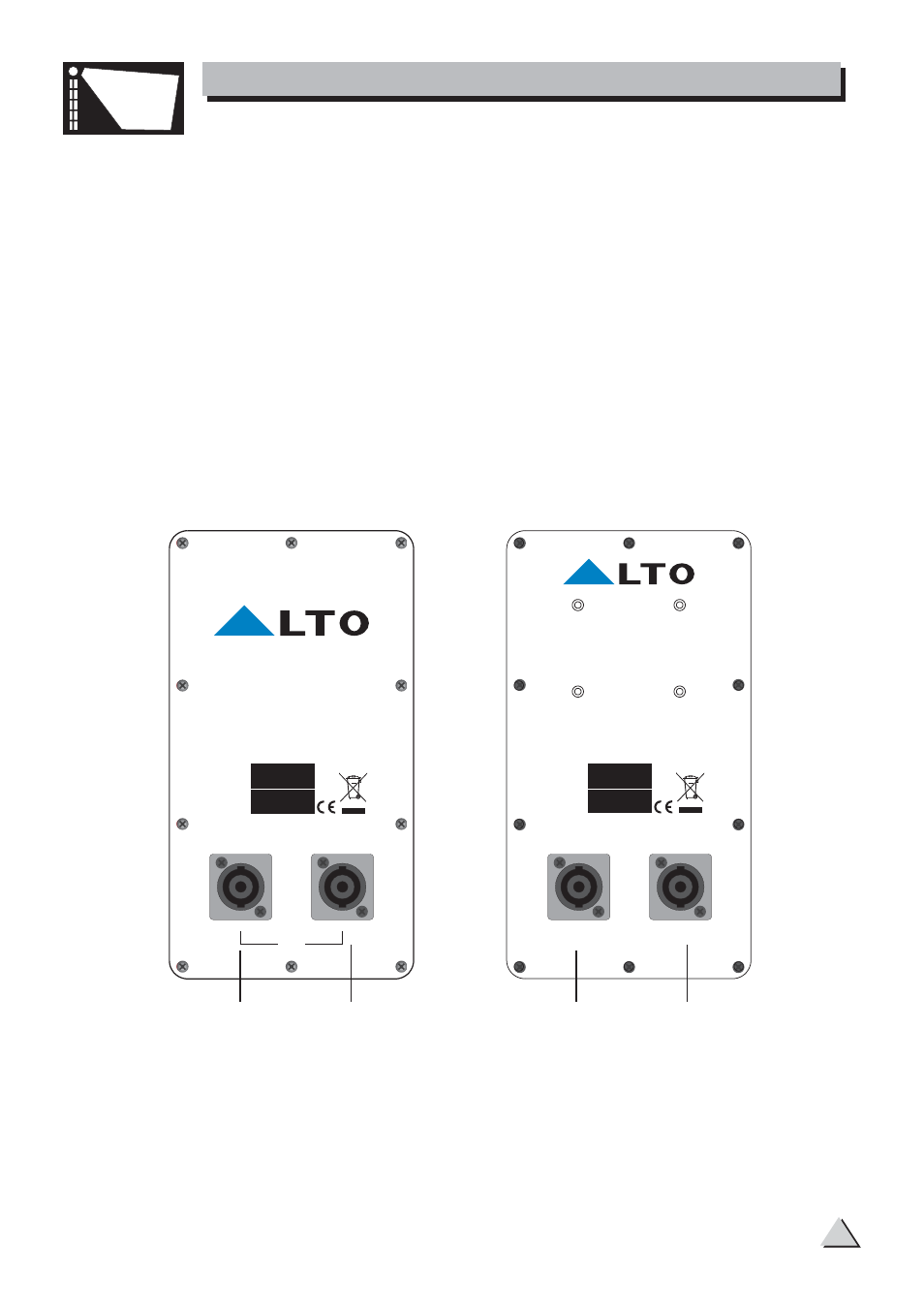

CONNECTION PLATE
PASSIVE FULL RANGE: MS8
(1) INPUT
(2) THRU
Receive the power coming from an external power amplifier.
(SPK +1/-1 connected; +2/-2 not connected)
Direct LINK for connect in parallel a second speaker cabinet.
(SPK +1/-1 connected; +2/-2 not connected)
Besides, the passive crossover included the electronic protection
on the driver.
(1)
(2)
THRU
LINK
INPUT
SOUND REINFORCEMENT SPEAKER SYSTEM
DESIGNED AND DEVELOPMENT IN ITALY
POWER HANDLING:
PEAK - 300 Watts
IMPEDANCE:
8 Ohm
SERIAL
MODEL
MS8
CONTINUOUS - 150 Watts
OUTPUT
INPUT
SOUND REINFORCEMENT SPEAKER SYSTEM
DESIGNED AND DEVELOPMENT IN ITALY
POWER HANDLING:
CONTINUOUS: 300 Watts
IMPEDANCE: 4 Ohm
Max SPL: 120dB at 1mt
SERIAL
MODEL
MS12S
