Rev. 1.05 - 14 -
SRP-330

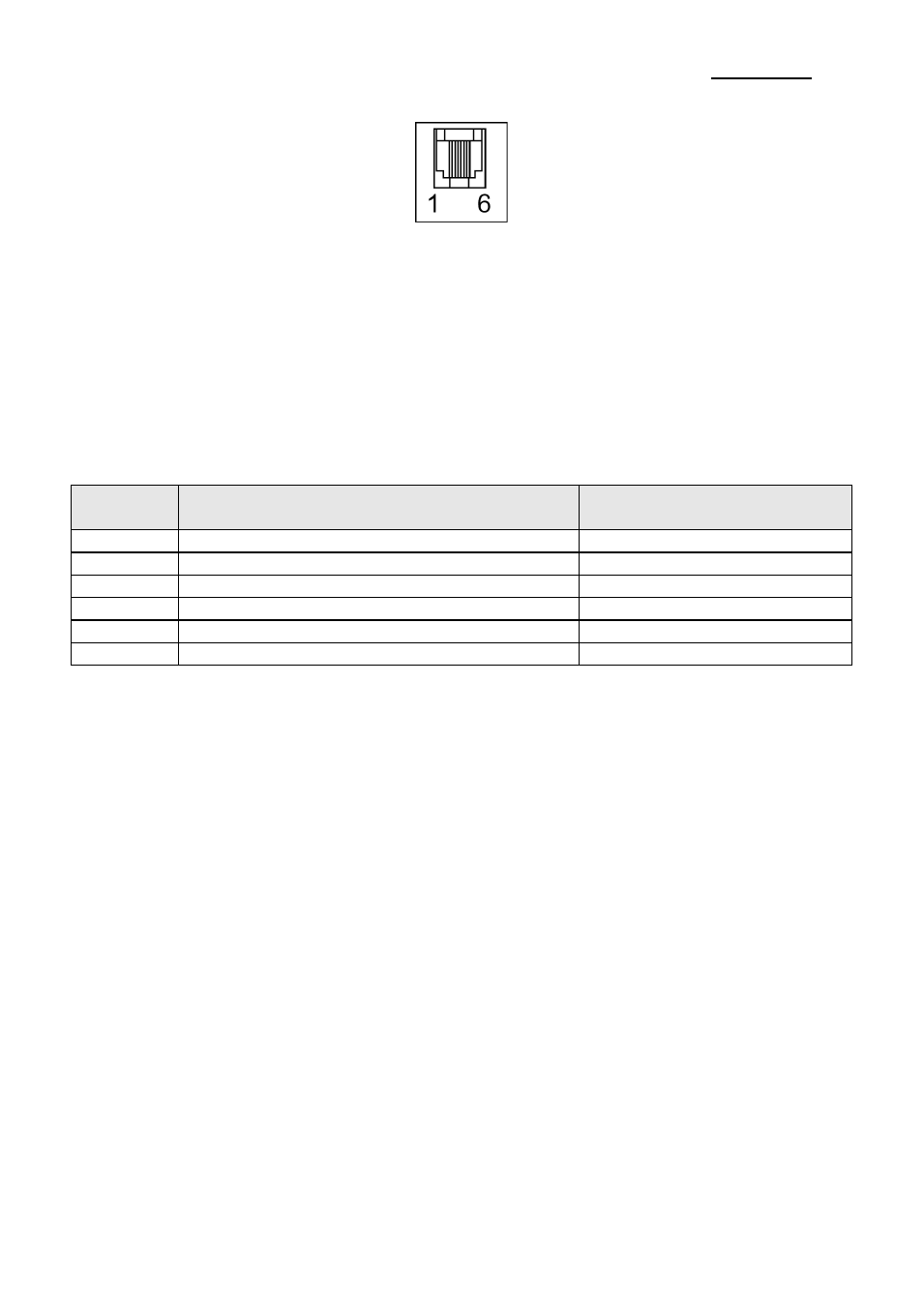

1-3 Drawer Cable
Connect the cash drawer cable to the cash drawer connector in the back of the printer.
※ WARNING
Use the cash drawer that complies with the printer specifications.
Use of cash drawer that does not meet requirements may cause problems to both case
drawer and printer.
※ PRECAUTION
Do not connect the telephone cable to the cash drawer connector port.
Connecting to phone line may case problems to phone line or printer.
Pin
Number
Signal Name Direction
1 Frame Ground -
2 Drawer Kick-out Drive Signal 1 Output
3 Drawer Open/Close Signal Input
4 +24V -
5 Drawer Kick-out Drive Signal 2 Output
6 Signal Ground -
