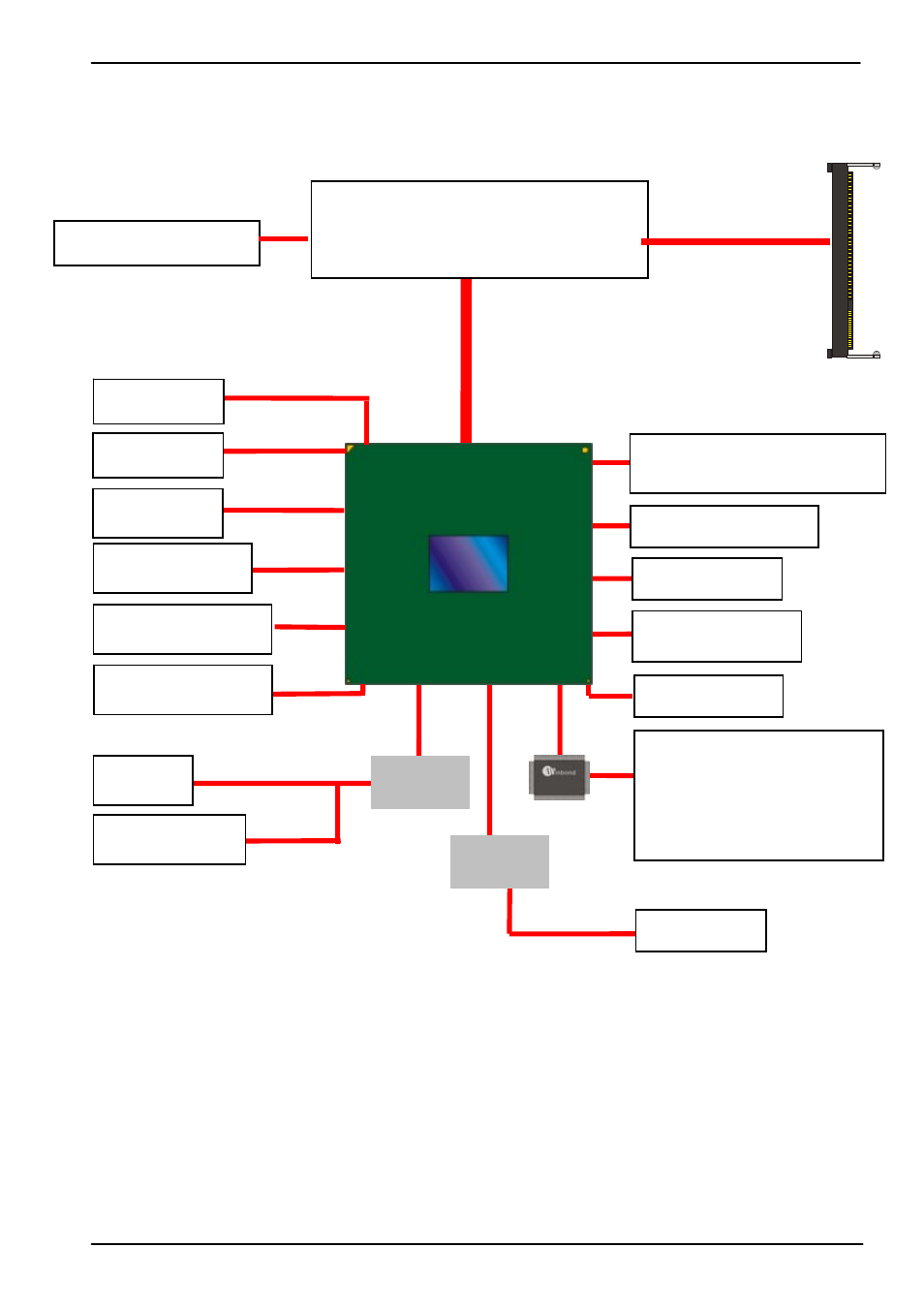

1.4 <Block Diagram>
QM67
W25X64 SPI
2 x Intel 82574L
1 x RS232/422/485
1 x RS232 & GPIO & IrDA
1 x LPT
2
nd
Generation Intel® Core™ i7,
Core™ i5, Core™ i3
and Celeron® Mobile Processor
1 x PCI Express x16
2 x 204-pin DDR3
SO-DIMM
1066/1333/1600 MHz
up to 16GB
1 x LVDS
4 x Serial ATAII
8 x USB 2.0
1 x PCI Express mini card
1 x DVI
1 x CRT
2 x Serial ATAIII
4 x RS232
ALC888 HD
F81216
1 x PCI Express x4
2 x PCI
1 x Mini PCI
SI383
