MS-C73 User’s Manual
- 18 -
2.8 <Onboard Display Interface>
Based on Intel Sandy Bridge CPU with built-in HD Graphic, the board provides one
DB15 connector on real external I/O port, one 40-pin LVDS interface with 5-pin LCD
backlight inverter connector and provides 26-pin DVI interface.
The board provides dual display function with clone mode and extended desktop mode
for CRT, LCD and DVI.
2.8.1 <Analog Display>

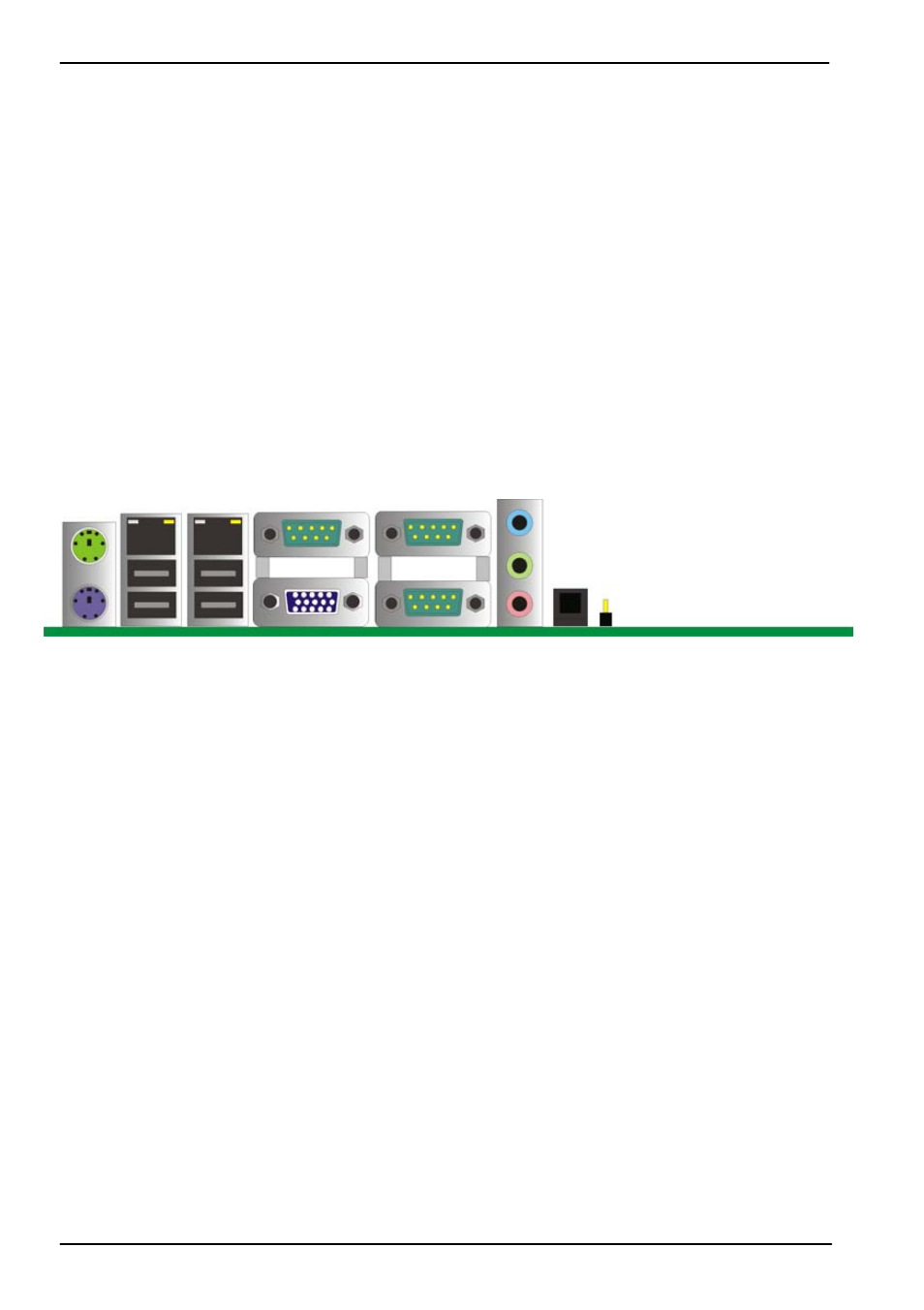

Please connect your CRT or LCD monitor with DB15 male connector to the onboard
DB15 female connector on rear I/O port .
CRT
