MS-C73 User’s Manual
- 28 -

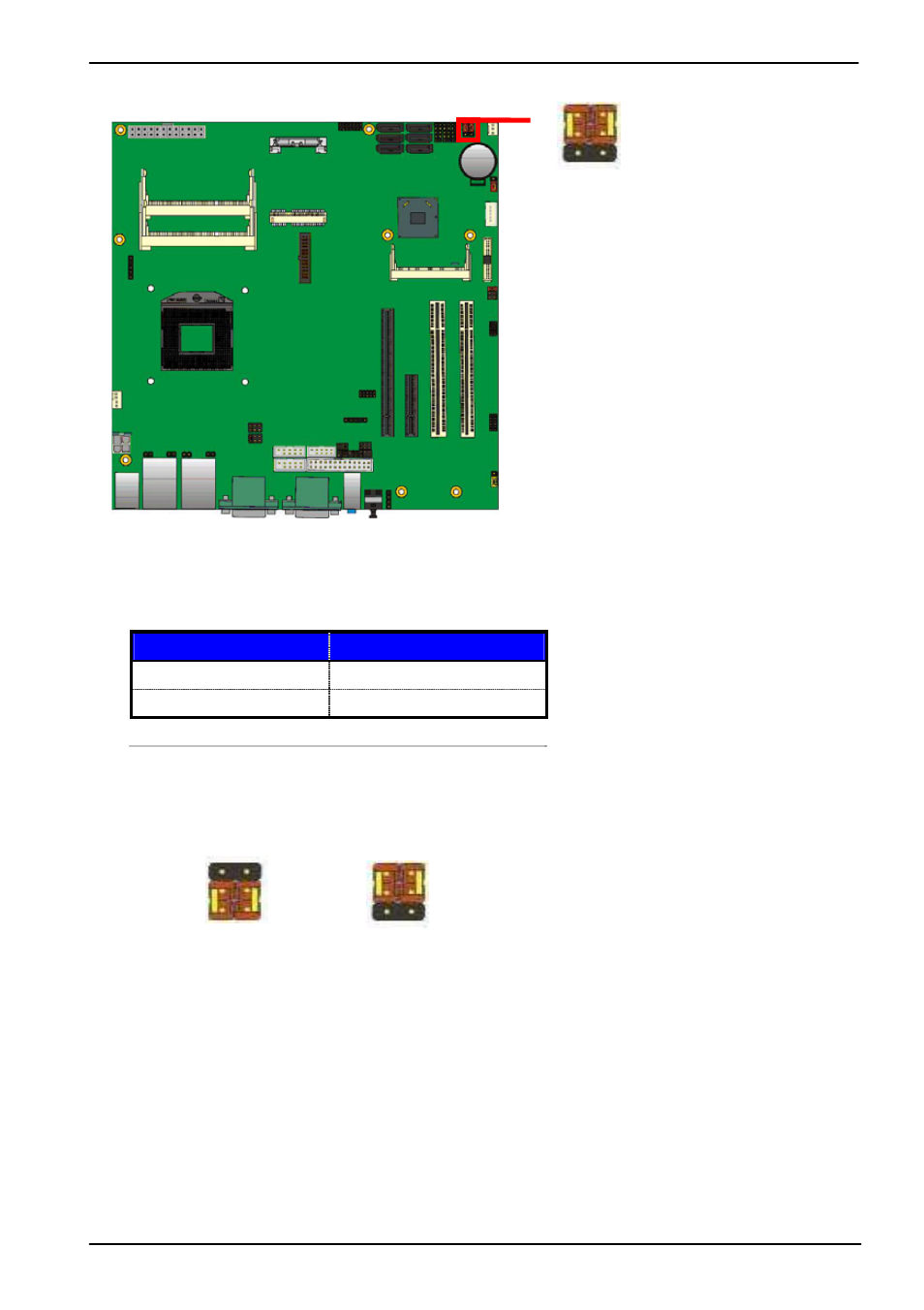

Connector: JVUSB
Type: 6-pin Power select jumper
Pin Description
1-3 & 2-4 5V_SB
3-5 & 4-6 5V
Default: 1-3 & 2-4
Effective patterns of connection: 1-3 & 2-4 or 3-5 & 4-6
Warning: Others will cause damages.
JVUSB
1 2
2
6 2
6 1
5 1
5
9 10
