CN_AUDIO
2 1
2.9 <Onboard Audio Interface>

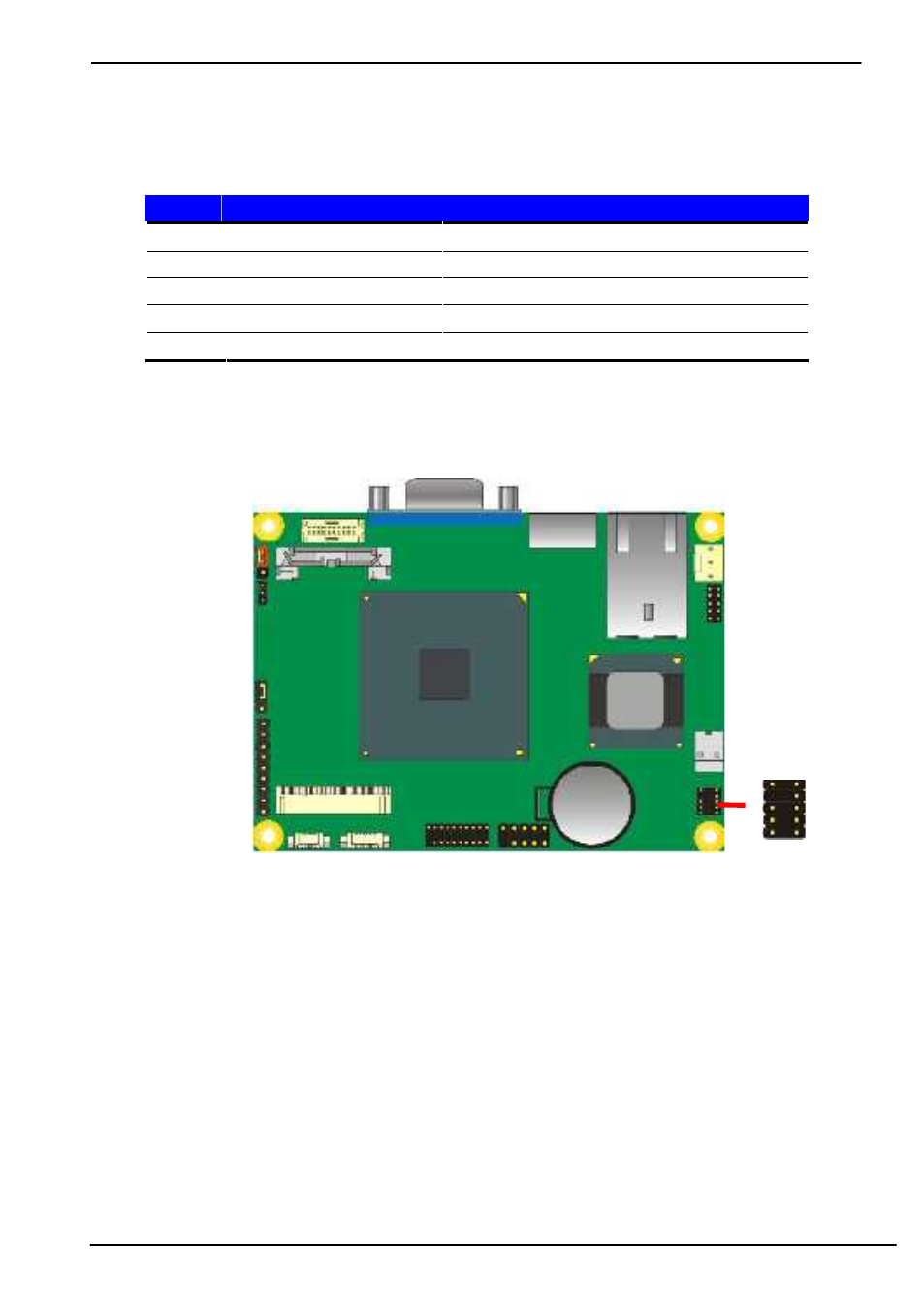

The board provides the onboard high definition audio with Realtek ALC888
Connector: CN_AUDIO
Type: 10-pin (2 x 5) 1.27mm x 2.54mm-pitch header
Pin Description Pin Description
1 MIC_L 2 Ground
3 MIC_R 4 AVCC
5 FRO_R 6 MIC_JD
7 SENSE 8 N/C
9 SPK_L 10 LINE2_JD
