LP-171 User’s Manual

-

28

-

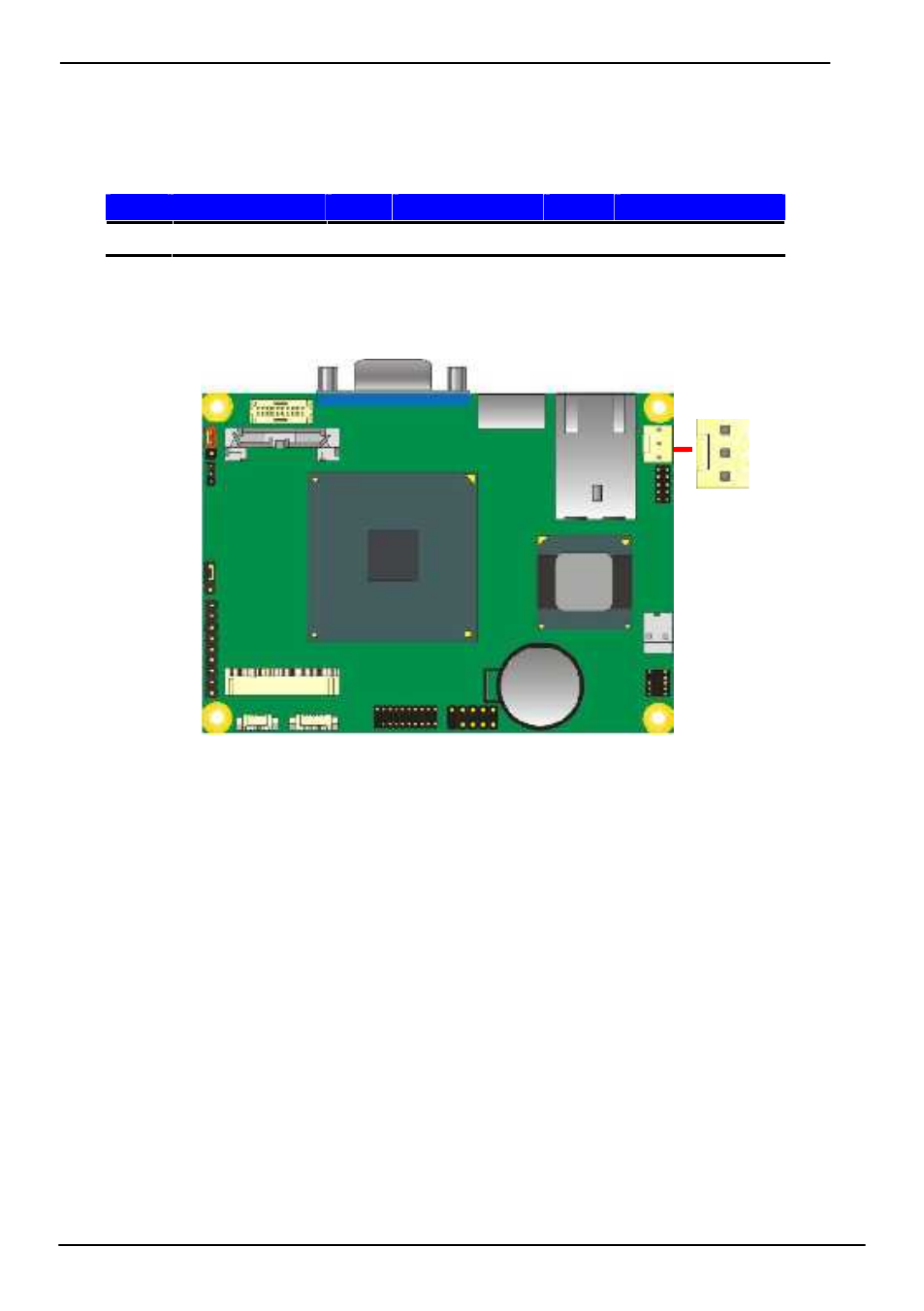

2.12.3 <Fan Connector>

Connector: SYSFAN, CPUFAN
Type: 3-pin fan wafer connector

Pin

Description

Pin

Description

Pin

Description

1

Ground

2

+12V

3

Speed detect

FAN

1

3
