5.2. IR Control - EPROM Preparation .................................
When using the smartCUE for IR control the data for controlled equipment must be included in
smartCUE in the especially dedicated EPROM memory chip.
Preparation and changing of IR data EPROM
1. Use the Cue Library Director and Teach-In unit to check the functionality of the IR codes
required for the project.
2. In the case of necessity capture new IR codes using the Cue Library Director and
Teach-In unit.
3. Open the interface
• Unscrew (4) screws on the left and on the right side.
• Remove the top covering.
4. Remove EPROM from position U11 in smartCUE - see picture below.
5. Prepare EPROM using Cue Library Director and Teach-In unit.
6. Install the EPROM in position U11 in smartCUE - see picture below.
7. Shut up the interface
• Install the top covering back.
• Screw in (4) screws on the left and on the right side.

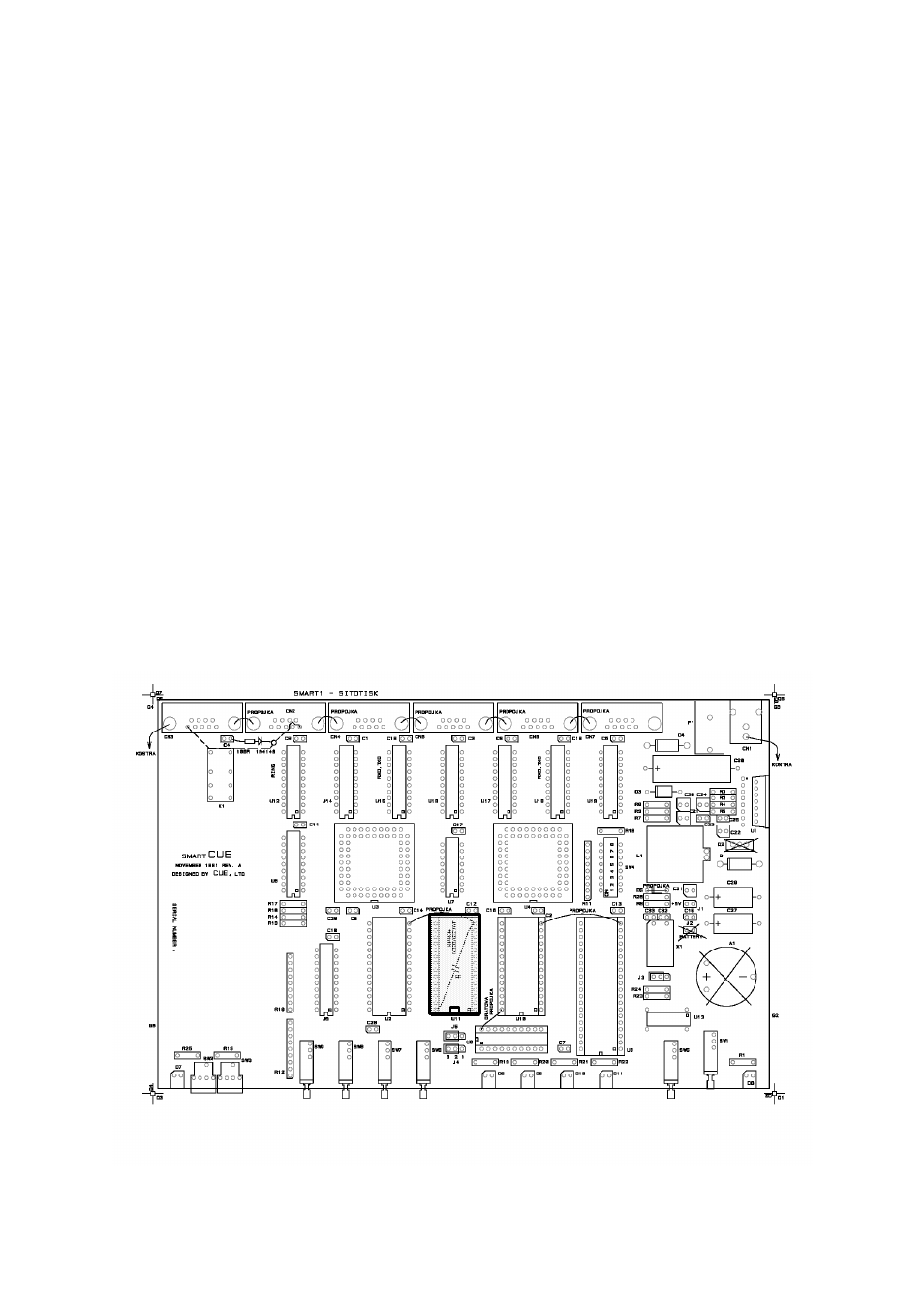

Open interface top view
CUEring IN CUEring OUT
EPROM
U11
