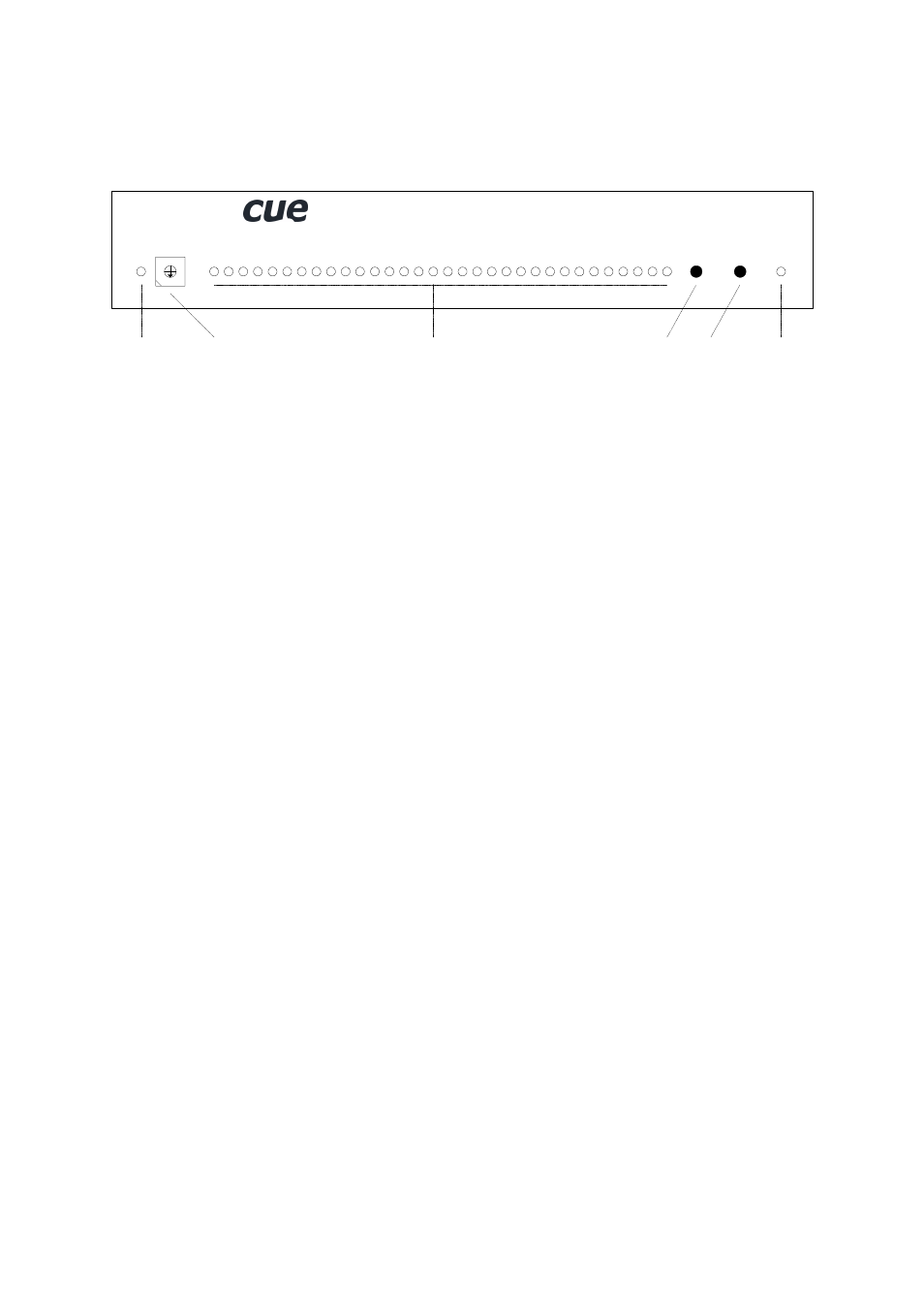

7.3.1. Overview
0
5
4
3
1
2
6
7
8
9
TE
ST
RE
SE
T
BA
NK
DA
TA
O
.K
.
analogCUE
17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
12 13 14 15
6
7
8
9
10 11
5
4
3
2
1
16
Data
Indicator
Address
Selector
Test
Button
Reset
Button
Power Supply
Indicator
Analog Output 1 to 32
Level Indicators
7.3.2. Indicators
DATA O.K.
This LED diode is blinking if the interface received correctly the data coming from the CUEring. This
LED blinks OK by Morse after power on, if auto-diagnostic runs correctly.
POWER
Power diode indicates that the interface is powered up.
OUTPUT 1 to 32
During normal operation these LED are lighting up if the output voltage is higher than 50% (5.0 V) of
the maximum, they go out when the output voltage is lower that 50% (5.0 V) of the maximum.
7.3.3. Buttons
TEST
This button serves for switching over to the testing mode. A detailed description of the testing you can
find in the chapter Diagnostic.
RESET
This button serves for resetting of the interface. During normal operation it is not being used, it solely
serves for testing purposes.
