There are several flying options, if you use a K&F U-Mount or K&F ceiling bracket. These mounts are designed
specifically for each speaker systems. For further information, please contact our local dealer.
Ensure that all installation connections comply with the applicable safety guidelines and that the size and
strength are sufficient. Further instructions are in our user's manual for assembly equipment and in the gen-
eral safety instructions for speakers and accessories.

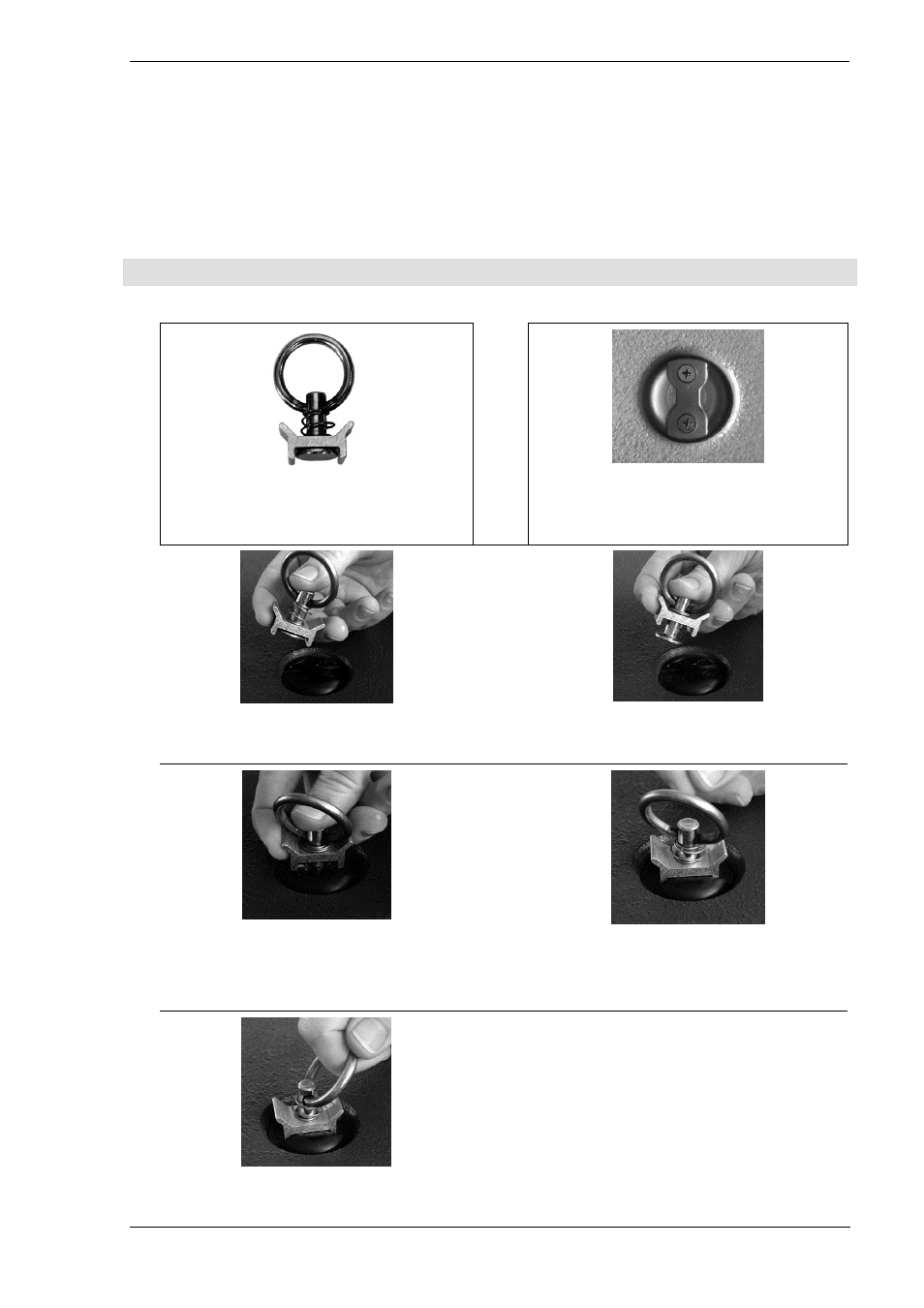

8.2 Using the ‘allsafe JUNGFALK’ Flying Points
Single Stud Fitting
Used as fastener to the ‘allsafe JUNGFALK’
flying point.
‘allsafe JUNGFALK’ flying point
Receptacle for special fasteners.
1.) 2.)
Take the single stud fitting in one hand... ... and push the locking device up against the
spring tension.
3.) 4.)
Put the flat head of the holding bolt into the
guiding of the flying point. Release the locking device when the single stud
fitting is located in the middle of the flying
point. Make sure that the locking device clicks
into place.
5.)
Check that the single stud fitting is securely
fastened and cannot be pulled out.
