Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved.
10
NDiS 167 User Manual
Chapter 2: Jumpers and Connectors
Jumpers

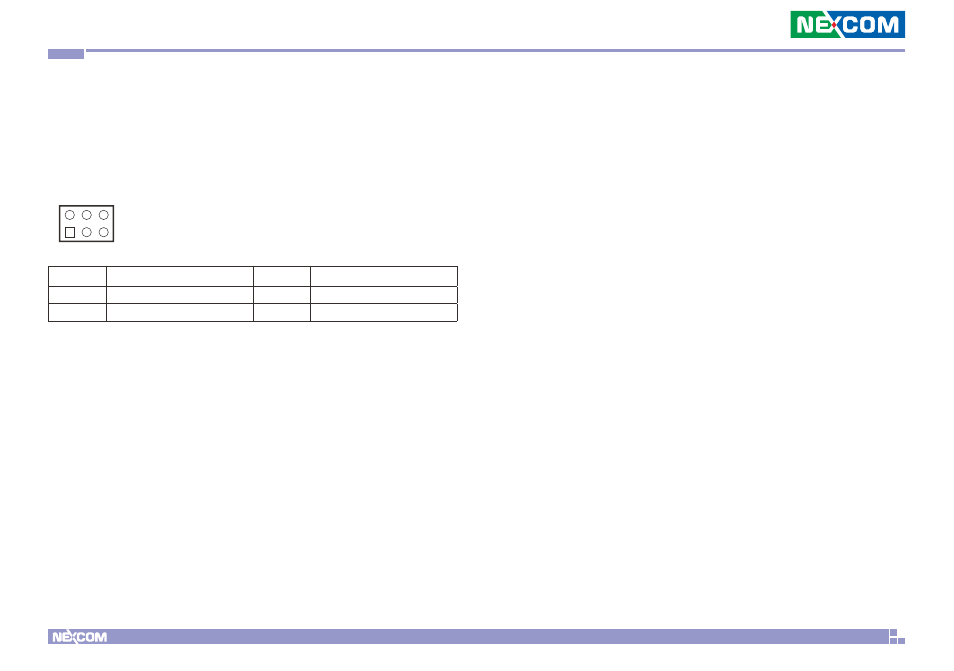

RTC/ME Clear Select
Connector type: 2x3 6-pin header
Connector location: JP5
Pin
Settings
Pin
Settings
1-3
Normal
3-5
CLR CMOS
2-4
Normal
4-6
CLR ME
1-3 On: default
1
5
2
6
