Z8 Encore! XP
®
F64XX Series Development Kit
User Manual
Introduction UM015110-0508
2
Hardware
The hardware in Z8 Encore! XP F64XX Series Development Kit
includes:
• Z8 Encore! XP Z8F642 Development Board
• USB Smart Cable for PC to Z8 Encore! XP
®
Z8F642 development
board (Previous versions of the development kit used a serial smart
cable. Refer your original documentation for information on using the
serial smart cable).
• 5 V DC power supply

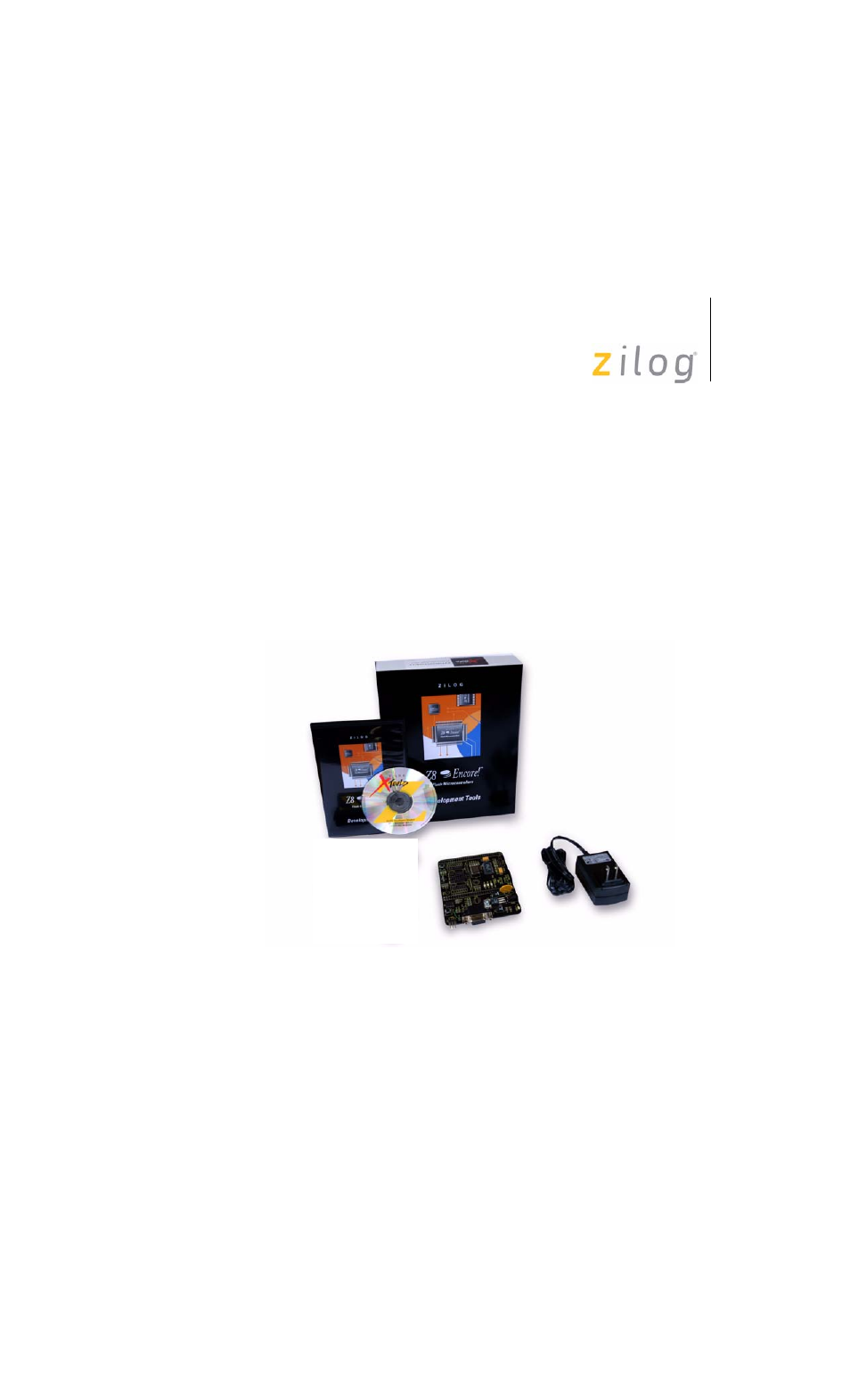

Figure 1. Z8 Encore! XP MCU Development Kit Contents
(USB Smart Cable not shown)
Development
Board
Packaging
CD-ROM Containing
Documentation
Power
Supply
