Chapter 7: Technical Specifications
4X M4x0.7-6H
10
45
∅ 3.0
54
10
+.10
-.03
7 2X

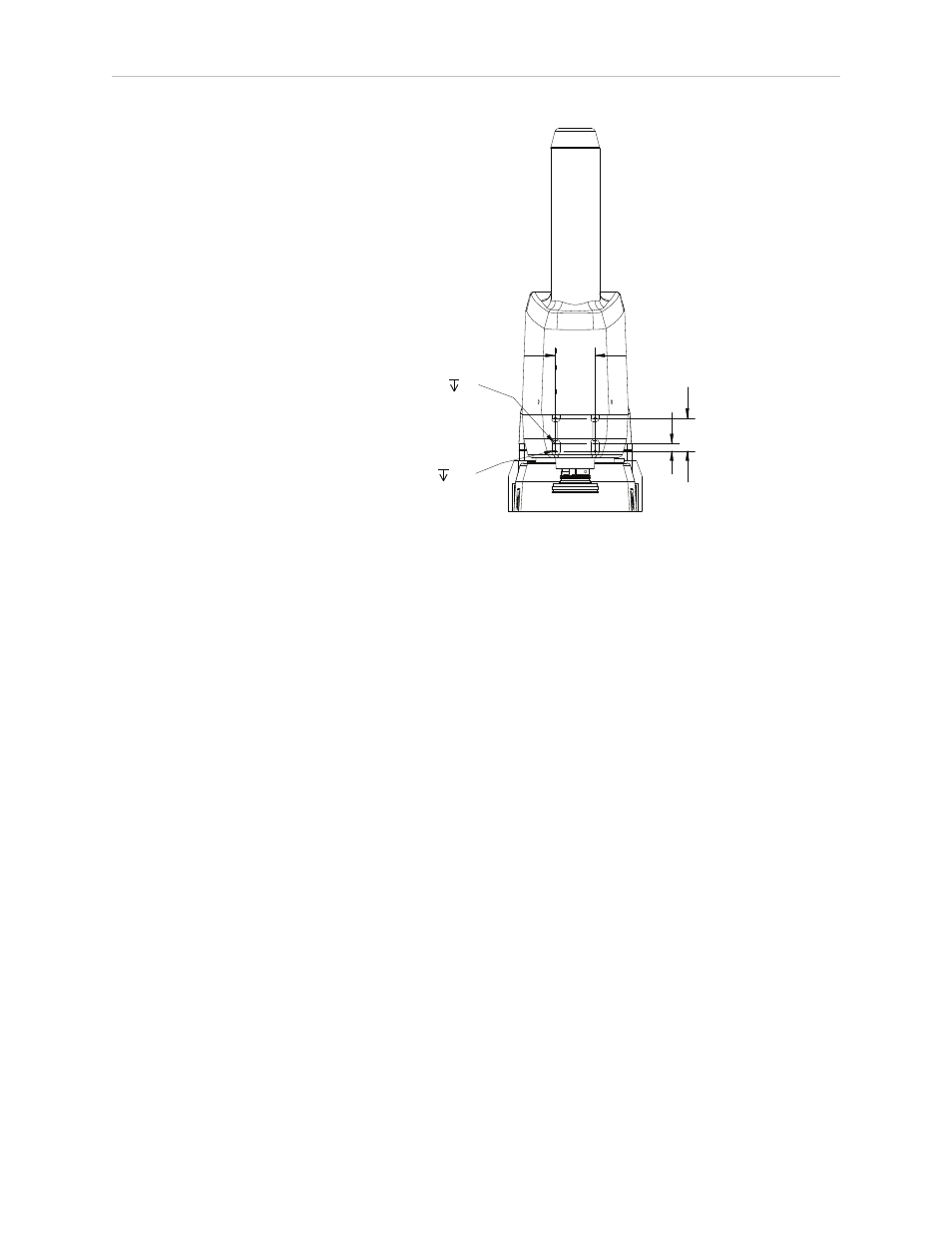

Figure 7-3. Dimensions of the Camera Bracket Mounting Pattern
