3 Device Installation
Note: All the installation and operations here should conform to your local electric safety rules.
3.1 Check Unpacked NVR
When you receive the NVR from the forwarding agent, please check whether there is any visible damage.
The protective materials used for the package of the NVR can protect most accidental clashes during
transportation. Then you can open the box to check the accessories.
Please check the items in accordance with the list. Finally you can remove the protective film of the NVR.
3.2 About Front Panel and Rear Panel
The model number in the stick on the bottom of NVR is very important; please check according to your
purchase order.
The label in the rear panel is very important too. Usually we need you to represent the serial number
when we provide the service after sales.
3.3 HDD Installation
Important：
Please turn off the power before you replace the HDD.
The pictures listed below for reference only.
For the first time install, please be aware that whether the HDDs have been installed.
You can refer to the Appendix for HDD space information and recommended HDD brand. Please use
HDD of 7200rpm or higher. Usually we do not recommend the PC HDD.
Please follow the instructions below to install hard disk.
3.3.1 NVR100/100-P Series
Please make sure the metal surface of the HDD is facing up when you are installing!
This series NVR has only one 2.5-inch SATA HDD.
Please follow the instructions below to install HDD.
○

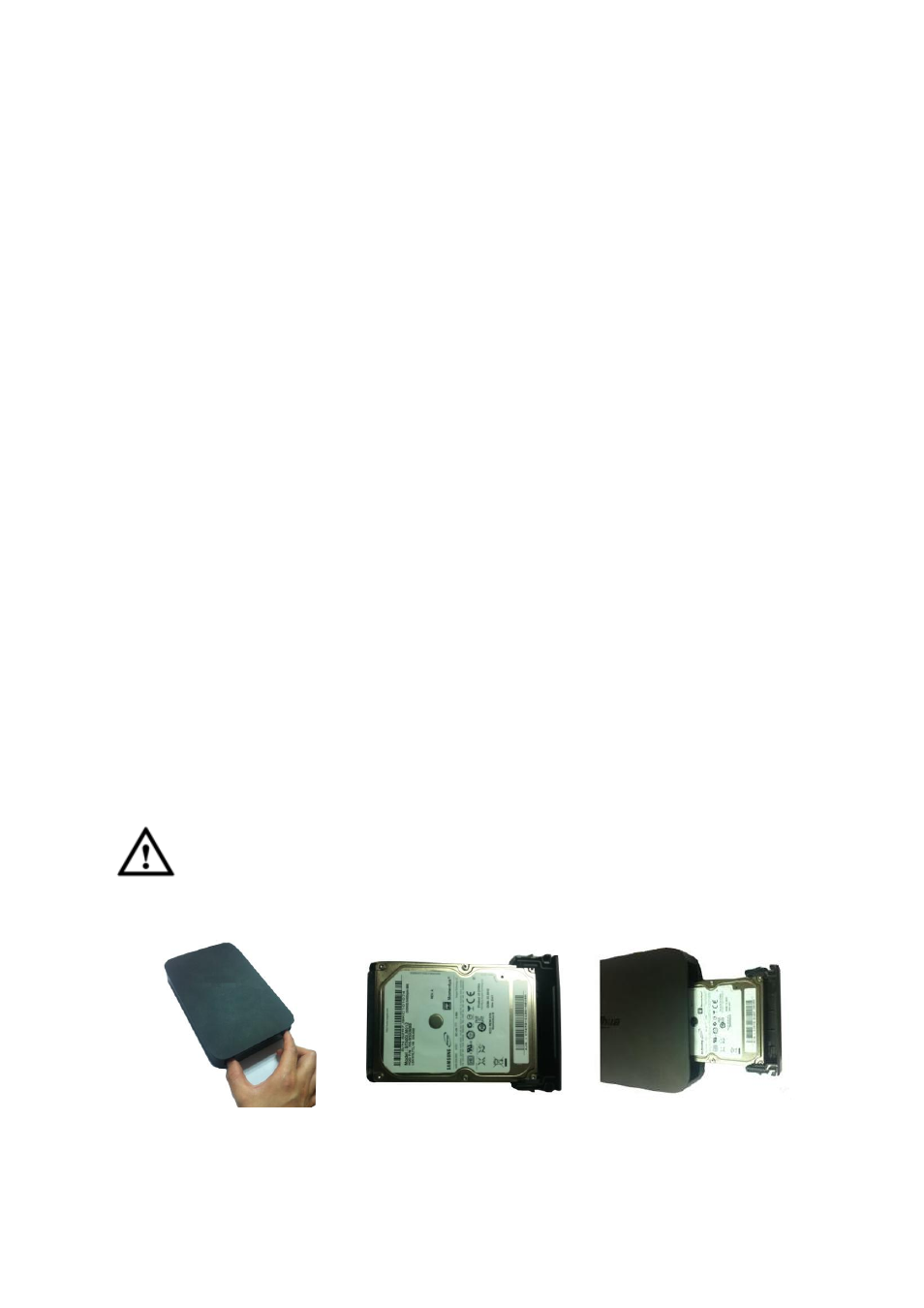

1 Draw out the HDD bracket
○
2 Make sure the HDD metal
surface is facing up and then put
the HDD into the bracket
○
3 Put the HDD into the device.
