Chapter 2 : INSTALLATION TRANS-SCALER XT™
PAGE 6
Chapter 2 : INSTALLATION
• Table Top Mounting : The TRANS-SCALER XT
™
can be used directly on a table. The unit is delivered with 4 plastic
feet.

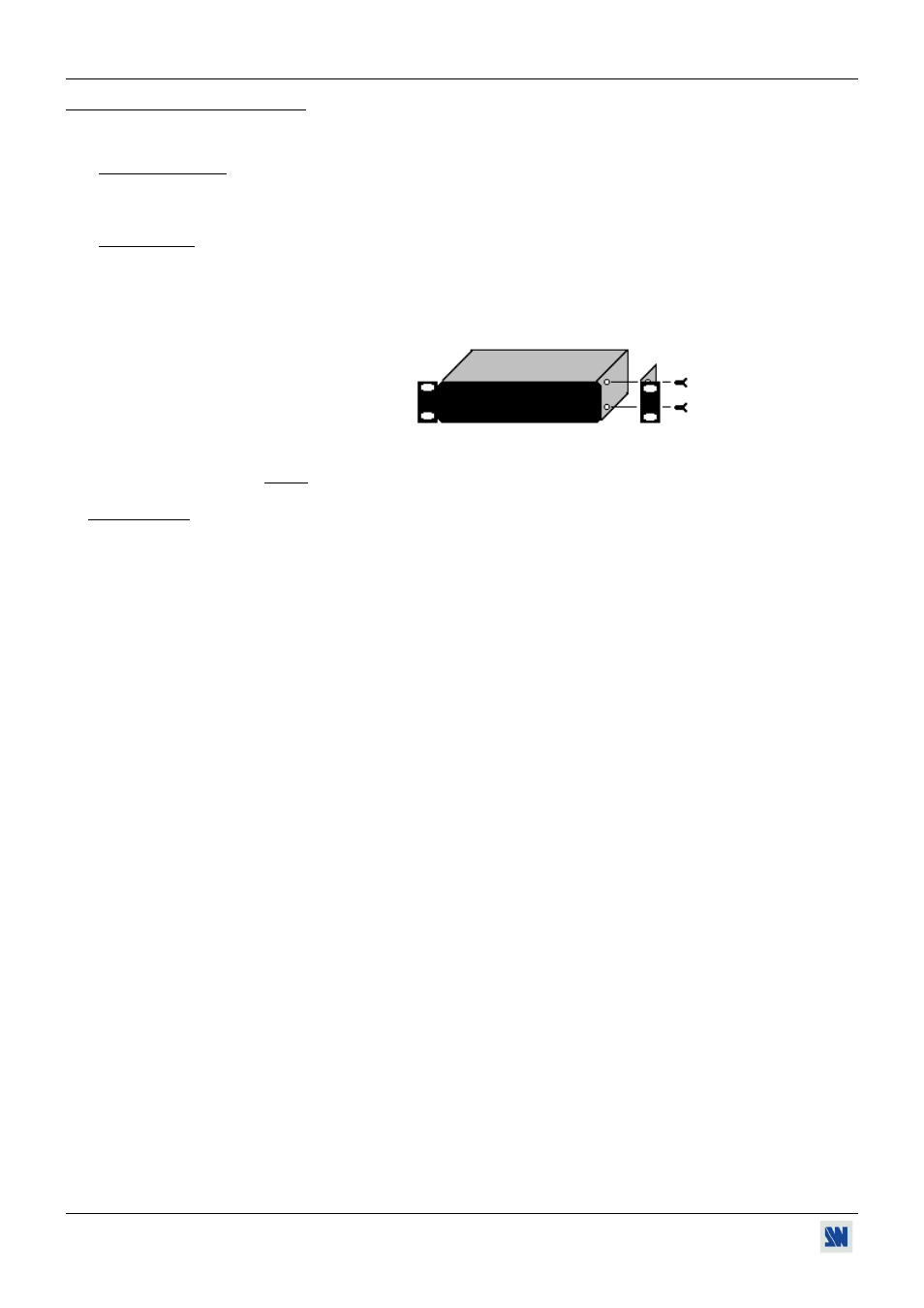

• Rack Mounting :
The TRANS-SCALER XT
™
is compatible with a 19" enclosure. Please follow the instructions
below to install the TRANS-SCALER XT
™
into a 19” rack:
c Screw the supplied 19" brackets to the sides of the TRANS-SCALER XT
™
.
d Put the TRANS-SCALER XT
™
into the rack.
NOTE : The 19" front panel screws are not included.
IMPORTANT:
• Be sure that no weight is added on the TRANS-SCALER XT
™
in excess of 2 kg (4.4 lbs.).
• The maximum ambient operating temperature must not exceed 40 °C (104 °F).
• The rack and all mounted equipment in it must be reliably grounded to national and local
electrical codes.
