P AGE 20
F
INALIZING THE
I
NSTALLATION - For Qualified Installers Only!
! Turn the gas control valve to "OFF" prior to conducting any service.

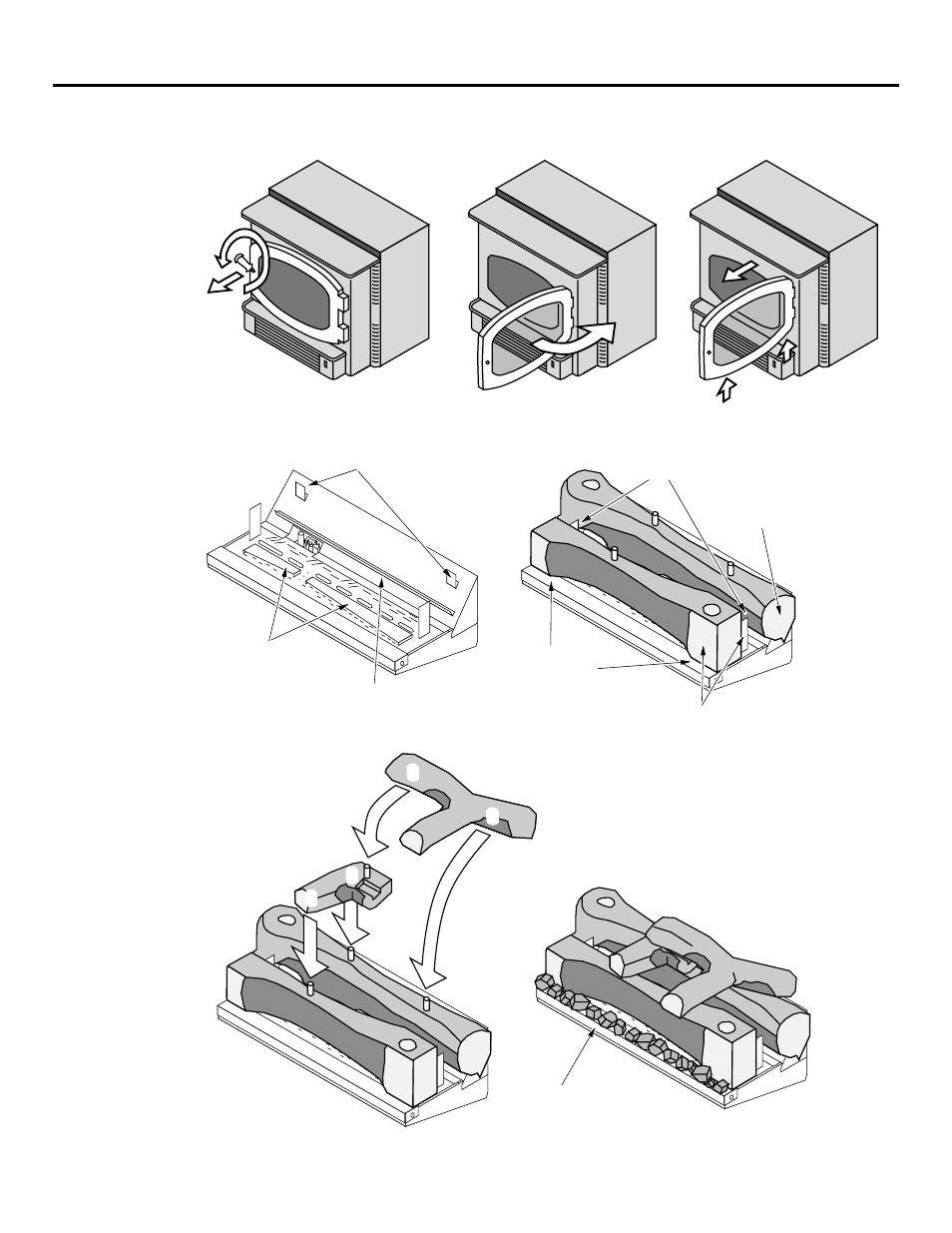

1 Remove
the door.
Unscrew and remove the door handle.
NOTE: When re-installing, make sure the handle points away from the glass when finished.
Swing the door until it is open 90¡ Lift the door up and away from the heater.
2 Install the
logs,
twigs, and
embers.
Rear Log (largest)
Front Log
Burner Pan
The rear log has a
flat portion that
rests on this ledge.
The front log rests on
these platforms.
These clips keep the rear log
from tilting backwards.
Log Installation
Twig
Installation
Slide the front log all the way
back against the air deflector.
The rear log
protrudes over the
burner pan on both
sides.
The front edge of
the front log rests
on this ledge.
The rear log contacts
the air deflectors.
Align the holes
in the left twig
over the pegs
on the front and
back logs.
Ember
Installation
Place the embers on this ledge at the
front of the firebox . Do not place the
embers over the burner holes.
Align the holes
in the right twig
over the pegs
on the left twig
and back log.
! We recommend you purge the gas line at this time (with the glass removed). This allows gas to be
detected once it enters the firebox, ensuring gas does not build up.
