564 HO Ember-Fyre Burner and Log Set
Installation Instructions
(sku 96900116)
Page 6 of 9 17601655 — 11/14/12 © Travis Industries, Inc.
10. Install the Rear Log onto the 2 pins at the rear of the firebox, as shown below. The log rests against the back
wall or fireback.
NOTE: NG and LP configurations require different log placement settings. For NG pull the rear log forward for
maximum glow. For LP push the rear log to the back to avoid sooting.

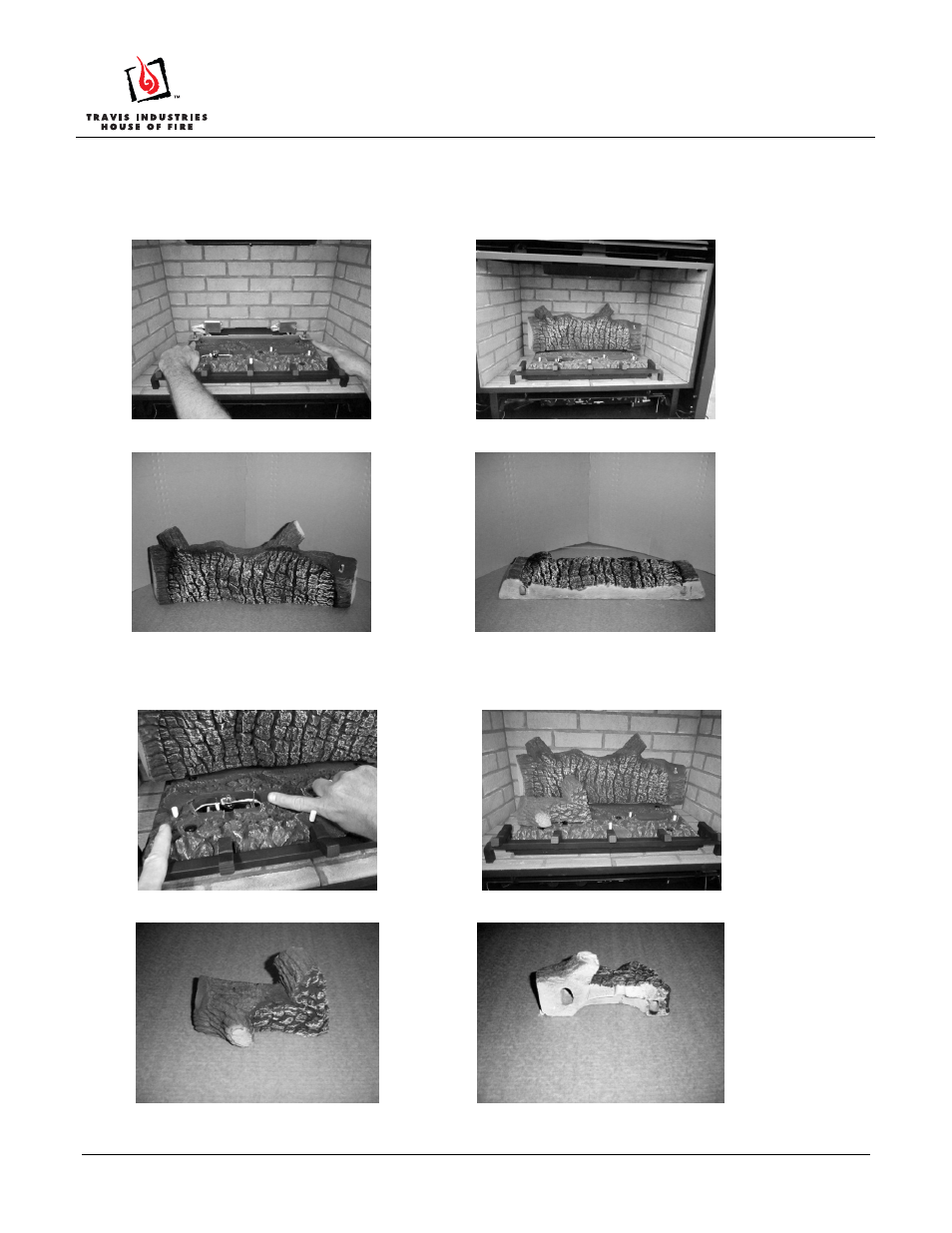

Figure 3: Rear Log Location Figure 4: Rear Log Installed
Figure 5: Rear Log – Top View Figure 6: Rear Log - Bottom View
11. Install the Left Log onto the 2 pins at the left of the firebox, as shown below. Note how the pin and metal post
insert into the holes on the log.
Figure 7: Left Log Location Figure 8: Left Log Installed
Figure 9: Left Log – Top View Figure 10: Left Log - Bottom View
