Settings
Power system settings are configured on the Power System settings screen (Figure 229) in
BESTCOMSPlus. Setting ranges and defaults are summarized in Table 92.

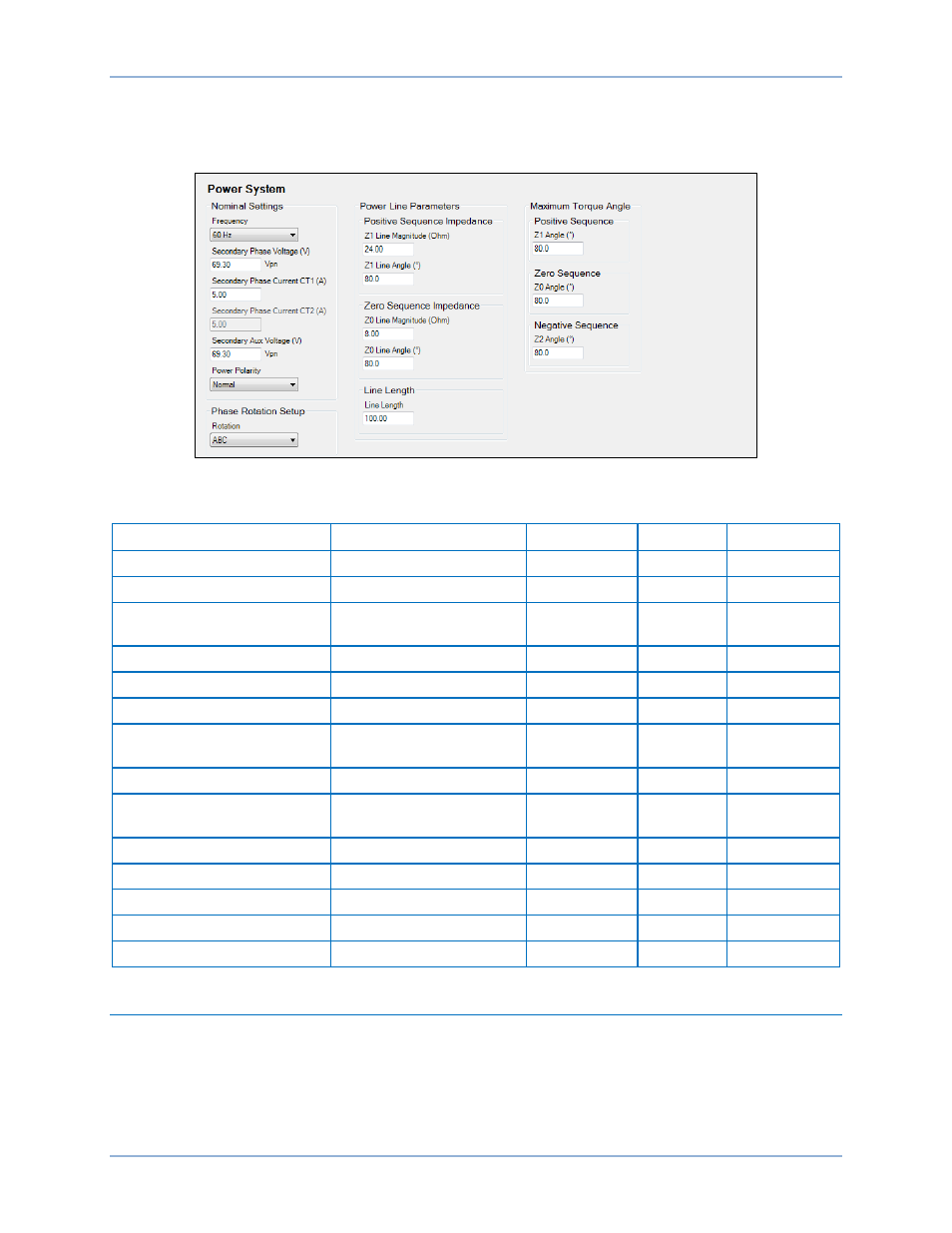

Figure 229. Power System Settings Screen
Table 92. Power System Settings
Setting Range Increment Unit Default
Nominal Frequency 25, 50, or 60 n/a hertz 60
Nominal Phase Voltage 50 to 300 0.01 volts 69.3
Nominal Phase Current
0.5 to 15 (5A CTs)
0.1 to 3 (1A CTs)
varies amps
5 (5A CTs)
1 (1A CTs)
Nominal Aux Voltage 50 to 300 0.01 volts 69.3
Power Polarity Normal or Reverse n/a n/a Normal
Phase Rotation ABC or ACB n/a n/a ABC
Z1 Line Magnitude
0.05 to 200 (5A CTs)
0.01 to 40 (1A CTs)
varies ohms 24
Z1 Line Angle 0 to 90 1 degrees 80
Z0 Line Magnitude
0.05 to 650 (5A CTs)
0.01 to 130 (1A CTs)
varies ohms 8
Z0 Line Angle 0 to 90 1 degrees 80
Line Length 0.01 to 130 0.01 units 100
MTA Z1 Angle 0 to 359.9 0.1 degrees 80
MTA Z0 Angle 0 to 359.9 0.1 degrees 80
MTA Z2 Angle 0 to 359.9 0.1 degrees 80
Sensing Transformers Settings
The BE1-11t requires information about the current and voltage transformers to provide metering, fault
reporting, fault location, and protective relaying.
Sensing transformer settings are configured on the Sensing Transformers settings screen in
BESTCOMSPlus. A summary of the settings appear at the end of this section.
