Page 103: Redundancy configuration, A.4.1, Mounting kit
C-Band Transceiver
Revision 1
CSAT-5060 5 to 25 Watt Installation
MN/CSAT5060.IOM
A–13
A.4
Redundancy Configuration
A.1.1
A.1.2
A.4.1
Mounting Kit
Table A-3 and Table A-4 reflects the contents of the mounting kits.
Table A-3. 1:1 Mounting Kit Assembly, AS/0596
Part No.
Nomenclature
QTY
*AS/0414
Kit, Redundancy, Pole Mount
2
AS/0489
Assy, 1:1 25W CSAT
1
*AS/0608
Assy, Bracket Mount 25W CSAT
2
IMPORTANT
Refer to A.3. Single-Thread Installation.
Table A-4. Assembly, 1:1 25W CSAT Switching, AS/0510
Part No.
Nomenclature
QTY
AS/0438 (see Note)
Kit, LNA Switch
1
AS/0440
Kit, Cable, 1:1 C-Band
1
AS/0461
Kit, Waveguide CPR229
1
AS/0490
Assy, Remote Switch Cast Box
1
AS/0503
Assembly,
TX
/Remote Switch
1
Note: Refer to Chapter 2, LNA for details.

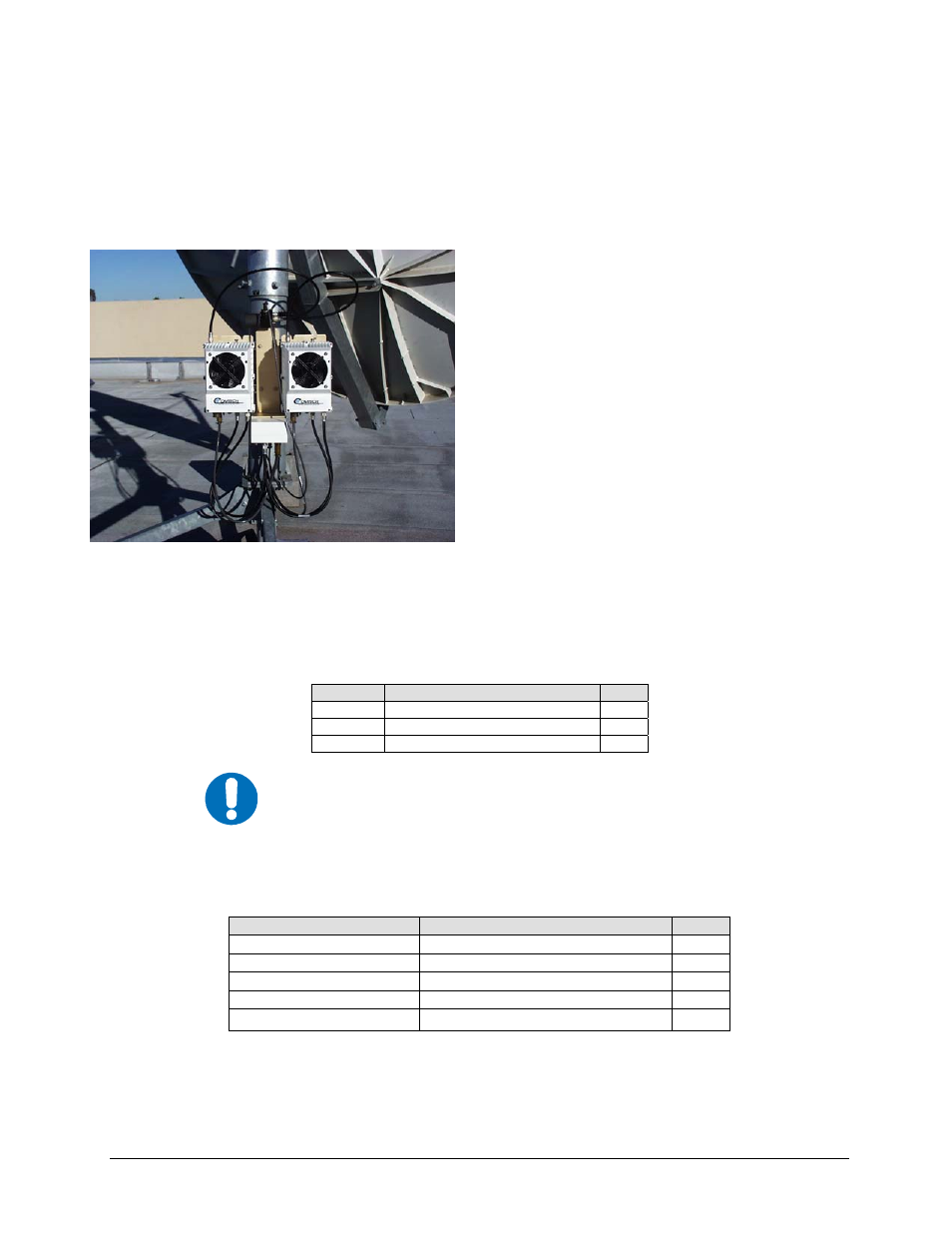

Figure A-14. Redundancy Configuration
