Reference Drawings 21
Appendix B: Reference Drawings
Drawing Title Drawing Number
Signal Connection; Installation .................................................................................................... A-28124
Backstop Mounting Suggestions ................................................................................................ A-91230
Wiring for Shot Clock on Portable Backstop .............................................................................. A-98293
Block Diagram: AS5000 BB- VB and WR #1 ............................................................................ A-124686
Block Diagram: AS5000 BB- VB and WR #3 ............................................................................ A-124688
Block Diagram, A/S 3000 or 5000 Hockey ............................................................................... A-124689
Schematic; Dual 1/4" Phone J-box w/ Shunt Jack .................................................................... A-125316
12V DC Horn Option Installation ............................................................................................... A-148960
T.O.L. Option Installation .......................................................................................................... A-149030
Corner Mounting ....................................................................................................................... A-150831
ID or Ad Panel Mounting to Scoreboard ................................................................................... A-156134
Hockey Scoreboard Configurations .......................................................................................... A-169166
Changeable Team Name Caption Installation ........................................................................ A-1132576
Suspension Lift Eye Installation ............................................................................................. A-1130959
Note: Site-specific system diagrams take precedence over any general setup drawings listed.

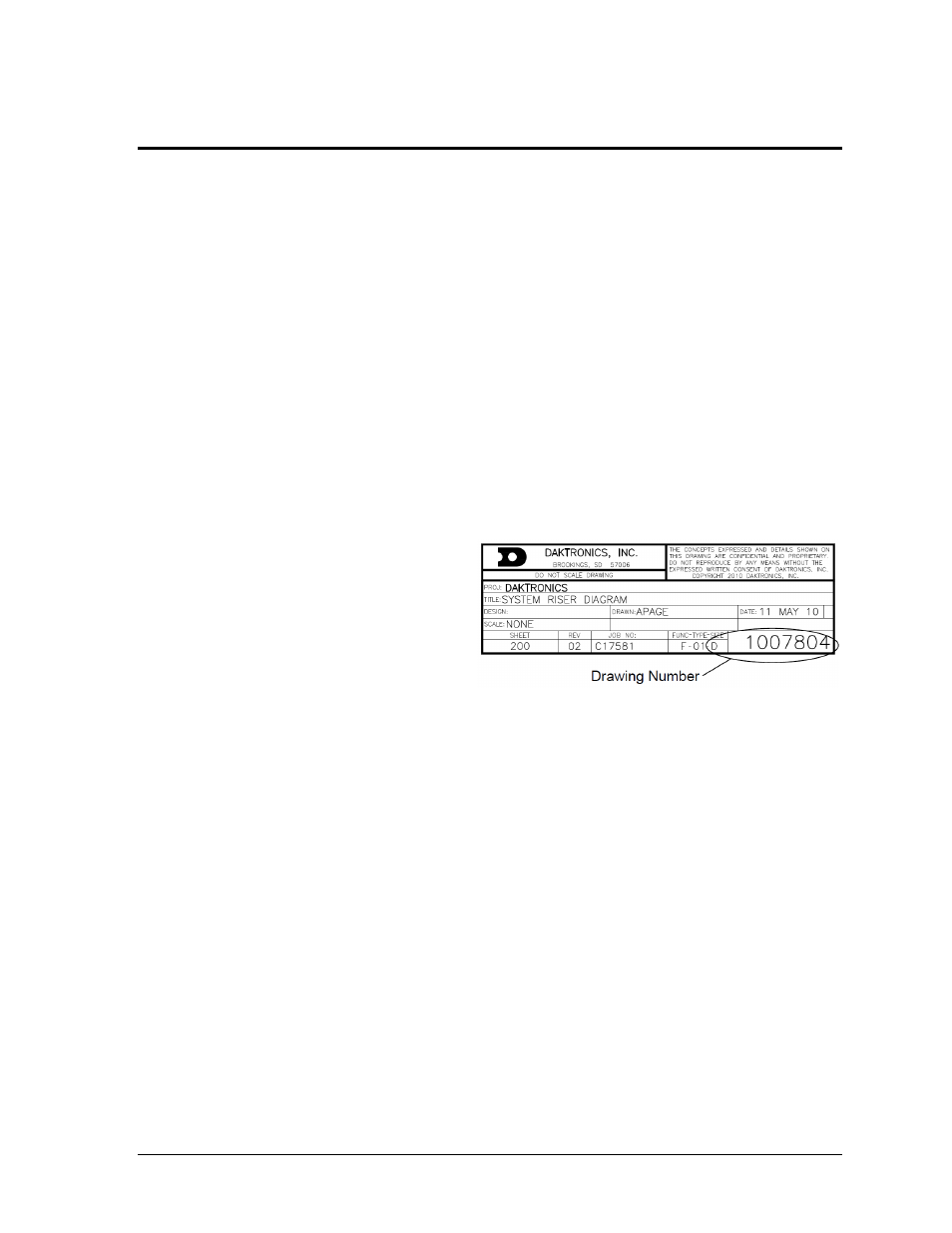

The image at right illustrates a Daktronics
drawing label. The drawing number is located
in the lower-right corner of a drawing. This
manual refers to drawings by listing the last
set of digits and the letter preceding them. In
the example, the drawing would be referred to
as Drawing D-1007804.
