2 Introduction
1.3 Resources

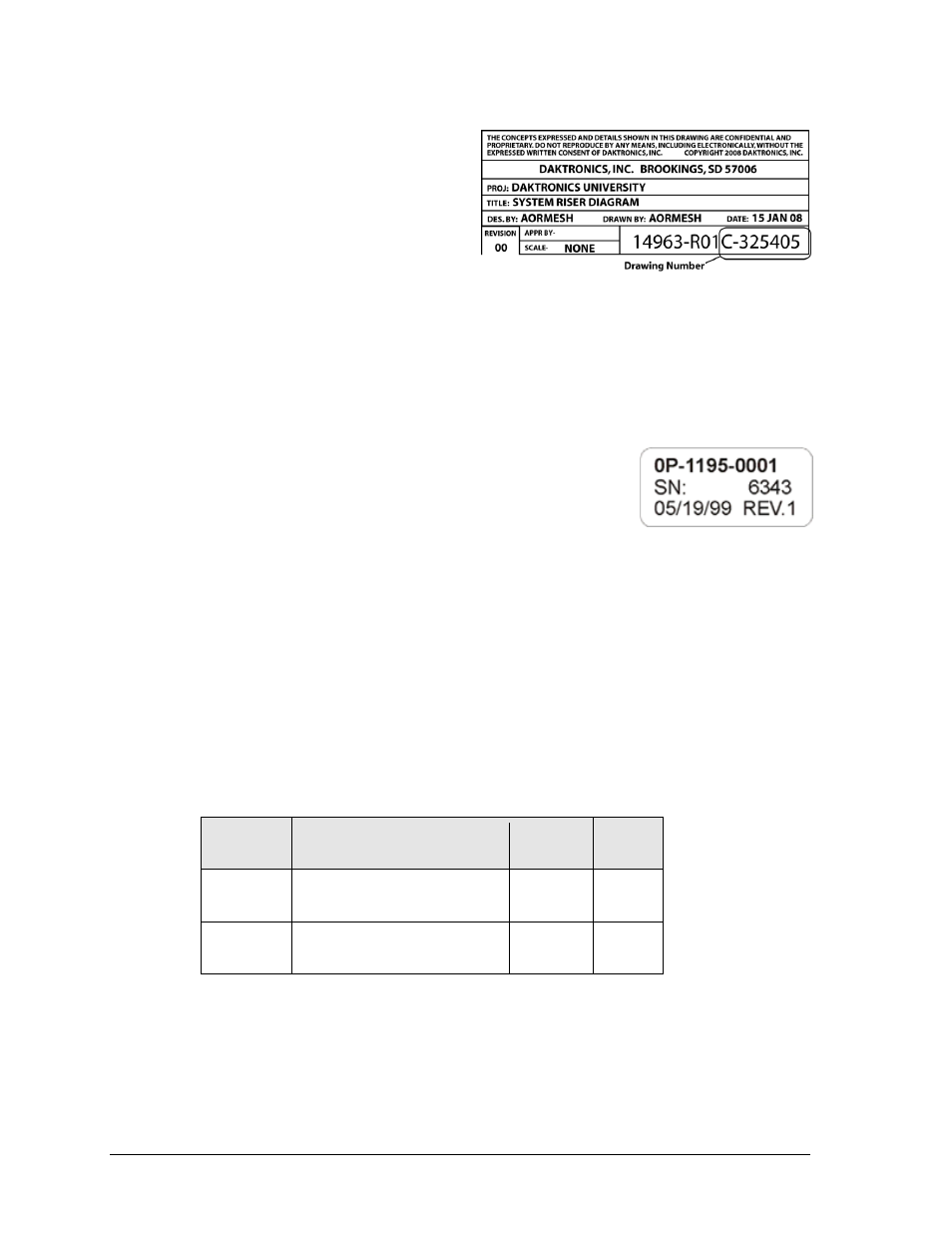

Figure 2 illustrates a Daktronics drawing
label. The drawing number is located in the
lower-right corner of a drawing. This
manual refers to drawings by listing the
last set of digits and the letter preceding
them. In the example, the drawing would
be referred to as Drawing C-325405.
Daktronics identifies manuals by the DD or ED number located on the cover page of each
manual. For example, this manual would be referred to as DD2757271.
Most components within this display carry a white label that lists the part number of the unit.
If a component is not found in the Replacement Parts List in Section 4.8, use the label to order
a replacement. Figure 3 illustrates a typical label. The part number is in bold.
Following the Replacement Parts List is the Daktronics Exchange
Policy and the Repair & Return Program. Refer to these
instructions if replacing or repairing any display component.
1.4 Product Safety Approval
Daktronics water polo scoreboards are ETL-listed, tested to CSA standards and CE-labeled.
Contact Daktronics with any questions regarding testing procedures.
1.5 Specifications
The chart below details all of the mechanical specifications, circuit specifications, and power
requirements for each display in this manual. Models are listed in alphanumeric order.
Note: All displays require a 120 VAC, 15 A circuit. Displays with a 240 VAC power
requirement are also available.
Figure 2: Daktronics Drawing Label
Figure 3: Typical Label
Model
Dimensions:
Height, Width, Depth
Uncrated
Weight
Watts
WP-2101 3'-6" H, 9'-0" W, 6" D
(1.07 m, 2.74 m, 152 mm)
100 lb
46 kg
200 W
WP-2101 +
WP-2102
5'-6" H, 9'-0" W, 6" D
(1829 mm, 2.74 m,152 mm)
170 lb
77 kg
400 W
