1-2 Introduction
All reference drawings and sport insert drawings are grouped in Appendix A and
listed in alphanumeric order.
1.2 Console
Overview
The All Sport 3000 Series Control Console is a state-of-the-art scoring and timing
system.
The anodized aluminum console features a sealed, "snap-action" keyboard with
changeable keyboard overlays to input event information and/or control the
scoreboards. A 32-character, two-line liquid crystal display (LCD) prompts the user
through the operation of the controller and provides vital feedback of game or event
data.
The LCD screen of the 3000 Series console is backlit to provide optimum viewing of
current event information, even in low-light areas, and an audible beep sounds to
indicate when a command has been received.
The controller features tenth-of-a-second timing, and a time of day display permits
scoreboards to display current time when not used for sporting events.
The console case is approximately
8.5" (216 mm) wide by 9" (229 mm
deep). Its maximum top height is
4.25" (114 mm). The controller
weighs 7 pounds.
The console operates on 120 V AC
power (60 Hz, 6 watts maximum).
Options include an external battery
that permits scoreboard control for
up to 30 hours, and wireless remote control. A 230 V, 50 Hz model is also available.
Console event data may be transmitted through standard wire signal cabling or fiber-
optic cable. With the radio-control model, transmission is wireless remote via FM
radio signal.
As a safety feature, this product has a three-wire, ground-type plug equipped with a
third (grounding) pin. This plug only fits into a grounding-type power outlet. (If you
are unable to insert the plug into the outlet, contact a qualified electrician to replace
the obsolete outlet.)
The All Sport 3000 is ETL-listed to UL
®
standards, CSA-tested and FCC-certified.
Inspect for Damage
When you open your console packages, inspect for shipping damage, such as dents
or rattles. Verify that all equipment is included as itemized on the packing slip, and
immediately report any deficiencies to Daktronics. Save all packing materials for
shipping in case warranty repair or exchange becomes necessary.

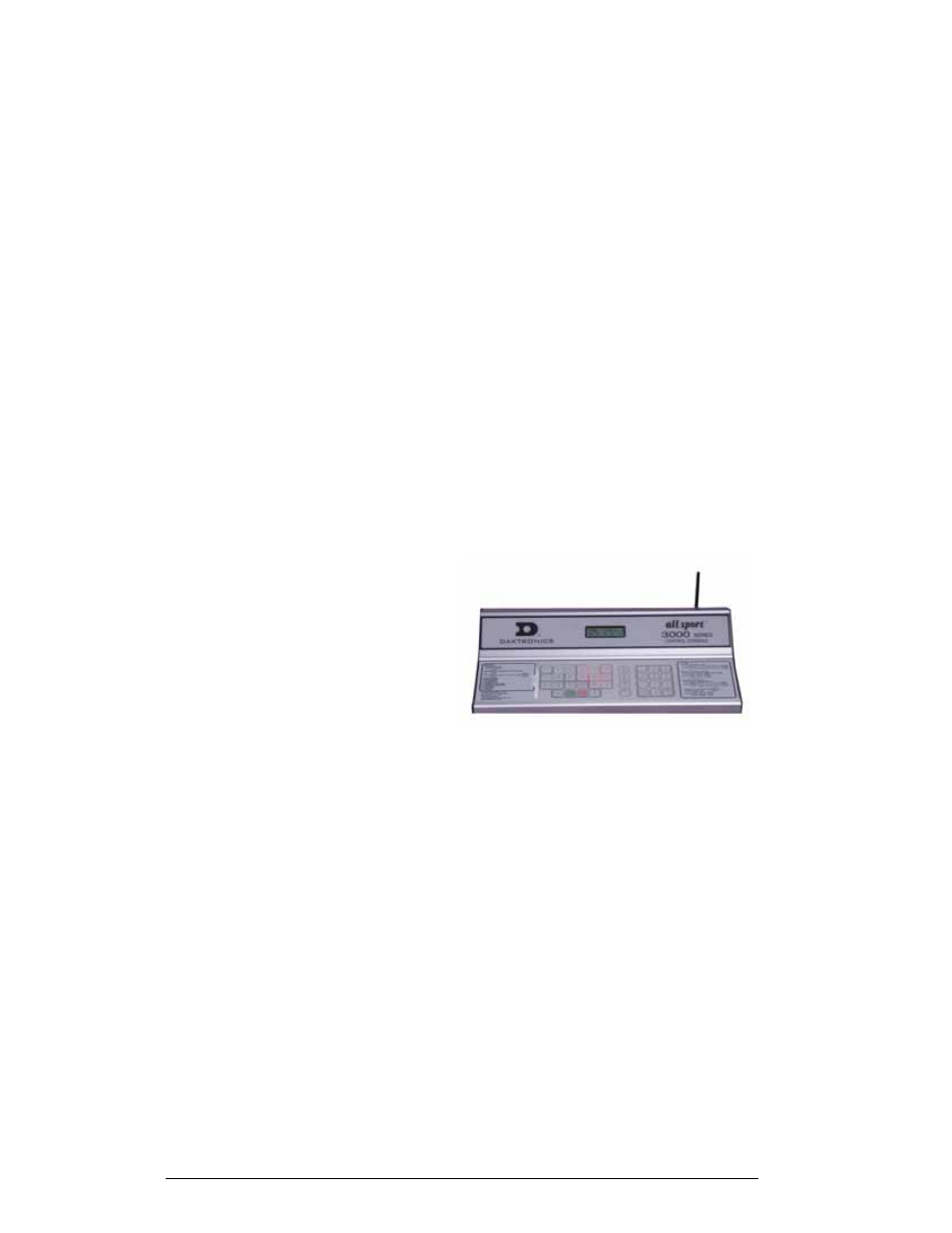

Figure 2: All Sport 3000 with Antenna
