Chapter 2 Hardware Installation

Chapter 2

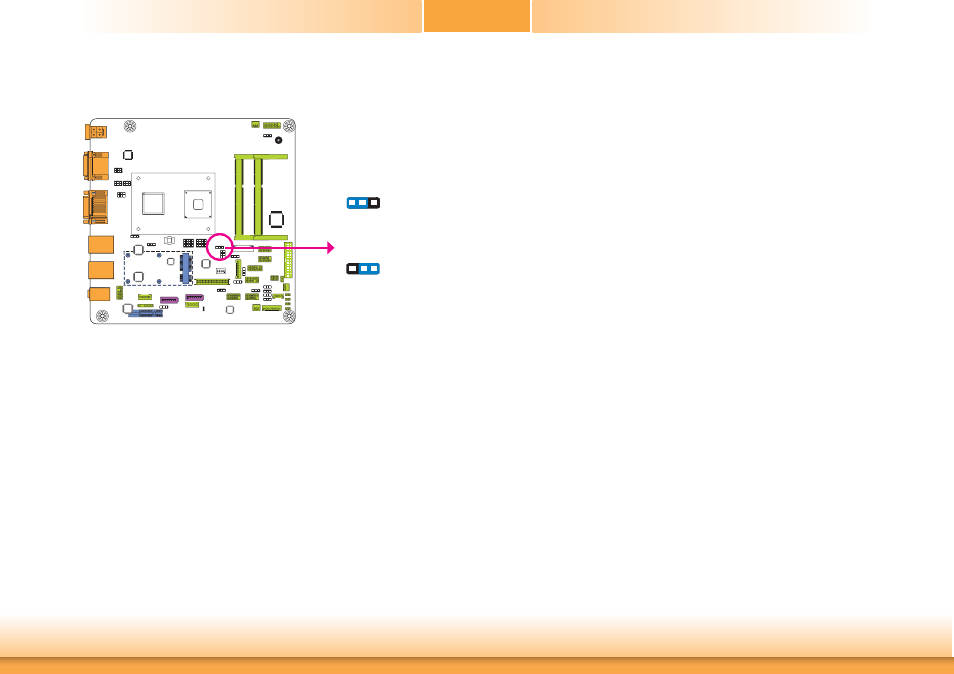

Dimming Control Select

JP22

2-3 On: Hardware mode

1-2 On: Software mode

(default)

1

3

2

1

3

2

JP22 allows you to select the mode for the lightness source of LVDS panel via the Software

mode or the Hardware mode.
