Chapter 2: Setting Up The DR 5-TON ELECTRIC LOG SPLITTER

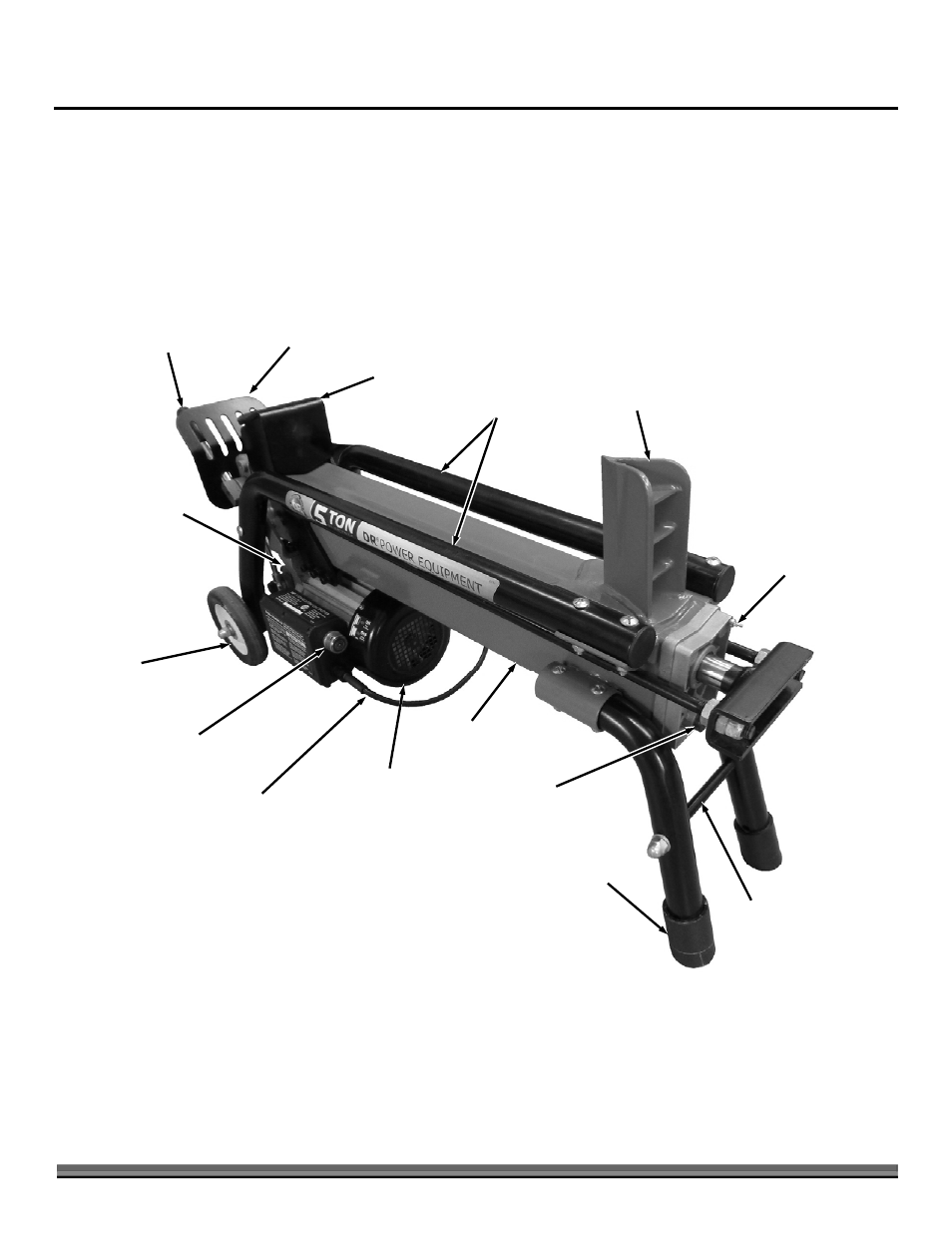

It may be helpful to familiarize yourself with the controls and features of your DR 5-TON ELECTRIC LOG SPLITTER as shown in
Figure 1 before beginning these procedures. If you have any questions at all, please feel free to contact us at www.DRpower.com.
DR 5-TON ELECTRIC LOG SPLITTER Controls and Features
Splitting Wedge
Log Ram
Rolling
Wheels
Oil Pump
Assembly
Electric Motor
On-Off Switch
Electric Motor
Electrical Cord
Log Retention
Tubes
Air Bleed Screw
Dipstick and
Hydraulic Fluid
Fill/Drain Port
Lifting
Handle
Control Lever
Hydraulic
Fluid Tank
Rubber Feet
Safety Guard
