8 DR ® 5-TON ELECTRIC LOG SPLITTER
Specifications
Motor
Electrical requirements 115V, 60Hz
Power output 1300W
Rated Current 12A
Motor Speed 3400 RPM
Power Cable SJTW 14 AWG (2.08mm²)
Log Capacity
Length 20.5 inches
Max Diameter* 10 inches
Splitting Force 5 ton
Hydraulic Pressure 2,700 psi
Hydraulic Fluid Capacity 3.8 L
Hydraulic Fluid Type (or equivalent) SHELL Tellus 22, MOBIL DTE 11, ARA Vitam GF 22, BP Energol HLP-HM 22
Machine Dimensions 39.5"L x 13.5"W x 20"H
Machine Weight 104 lbs
*The diameter of the log is indicative - a small log can be difficult to split when it contains knots or a particularly tough fiber. On
the other hand, it may not be difficult to split logs with regular fibers even if its diameter exceeds the 10" max. indicated above.
Installing the Control Lever
Tools Needed:

10mm Wrench

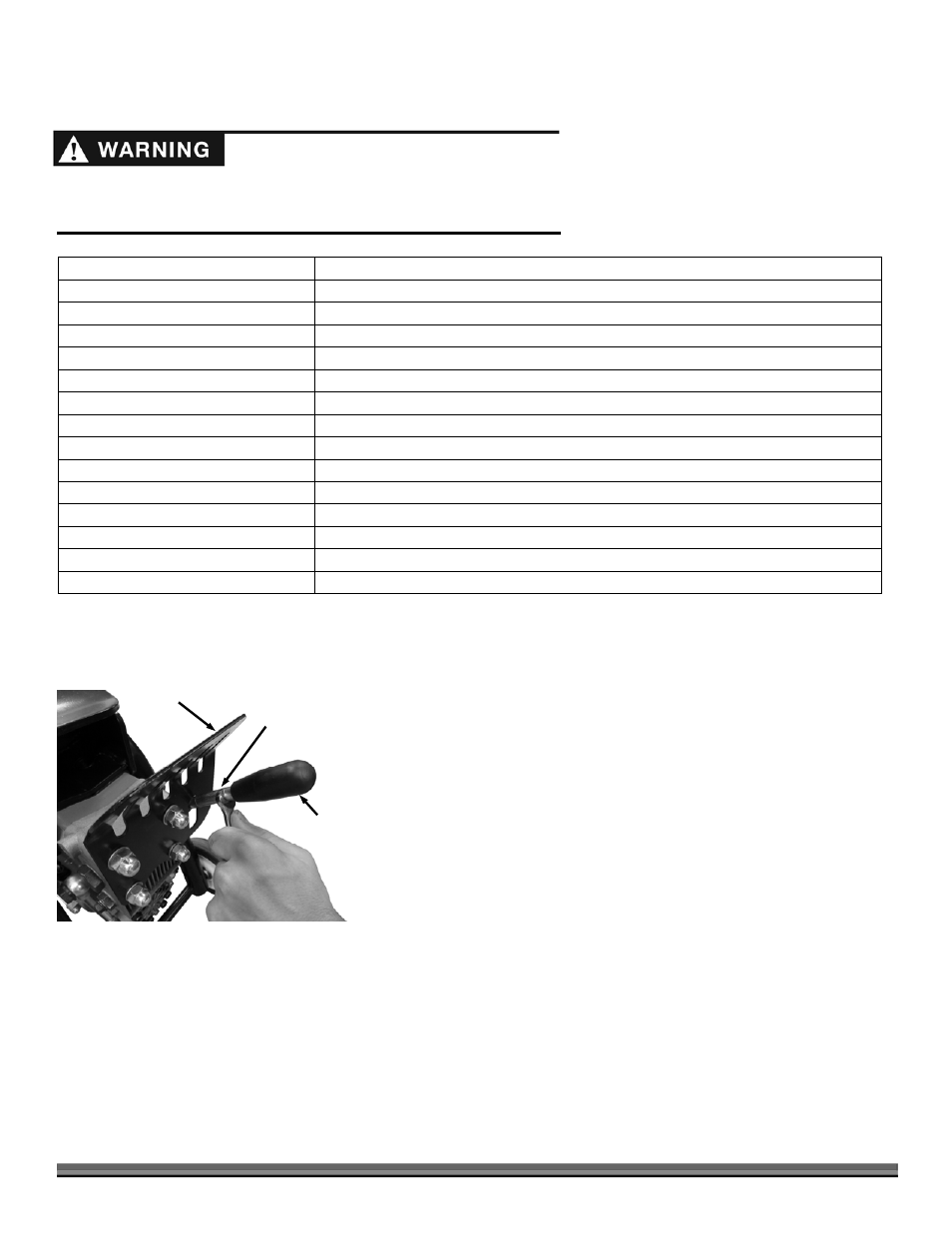

1. Place the Control Lever Shaft through the Guard and Screw the threaded end
into the Rotating Mount (Figure 2). Tighten with a 10mm Wrench using the
flats of the Shaft.
Control
Lever
Guard
Figure 2
Control
Lever Grip
Control
Lever Shaft
For your own safety, do not connect the log splitter to the power source until
the machine is completely assembled and you read and understand the entire
instruction manual
