U46 SE ESI
(3) File - Close Window
This will close the U46 SE Control Panel window but it will not shut down the control panel. You
can always relaunch the control panel by clicking ‘ESI’ icon on the system tray.
(4) Help – About
Shows information about the driver revision.

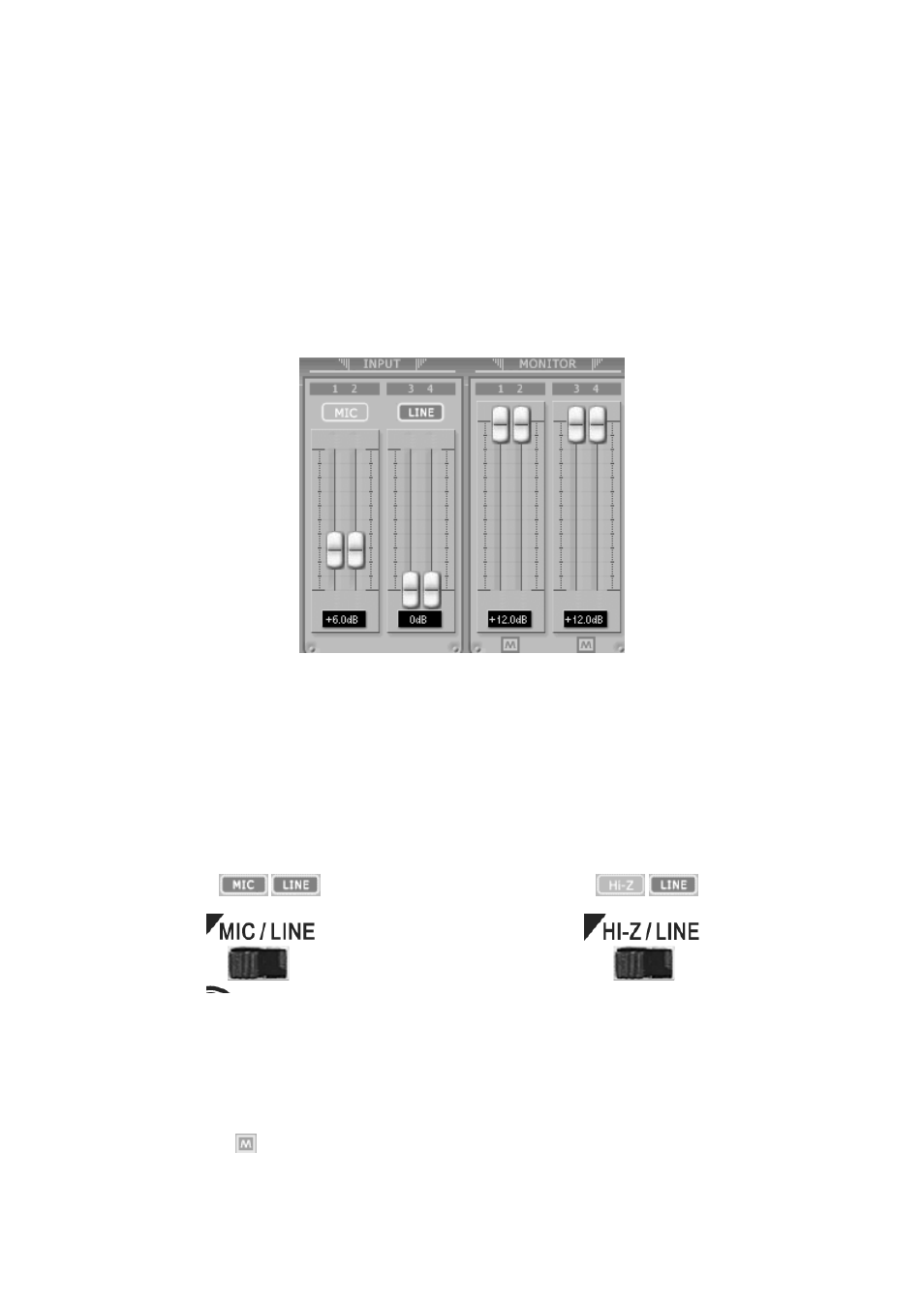

5.2 Input section
(1) Input
This is where you can increase the input level of the analog input 1/2. The input level 3/4 is fixed at
0dB. The number on the bottom indicates the relative level in dB.
(2) Input source display
This is where you can check current input source selected by the input source selector on the front
panel of U46 SE hardware.
Input CH 1/2 Input CH 3/4
(3) Monitor
This is where you can adjust input monitoring level of U46DJ. Set the level using the mouse, mouse
wheel, or cursor keys. The number on the bottom indicates the relative level in dB. You can also
select mute button (
) to mute each monitoring input source.
10
