KW941 Pump Power Monitor USER INSTRUCTIONS ENGLISH 71569285 02-12

Page 21 of 24

flowserve.com

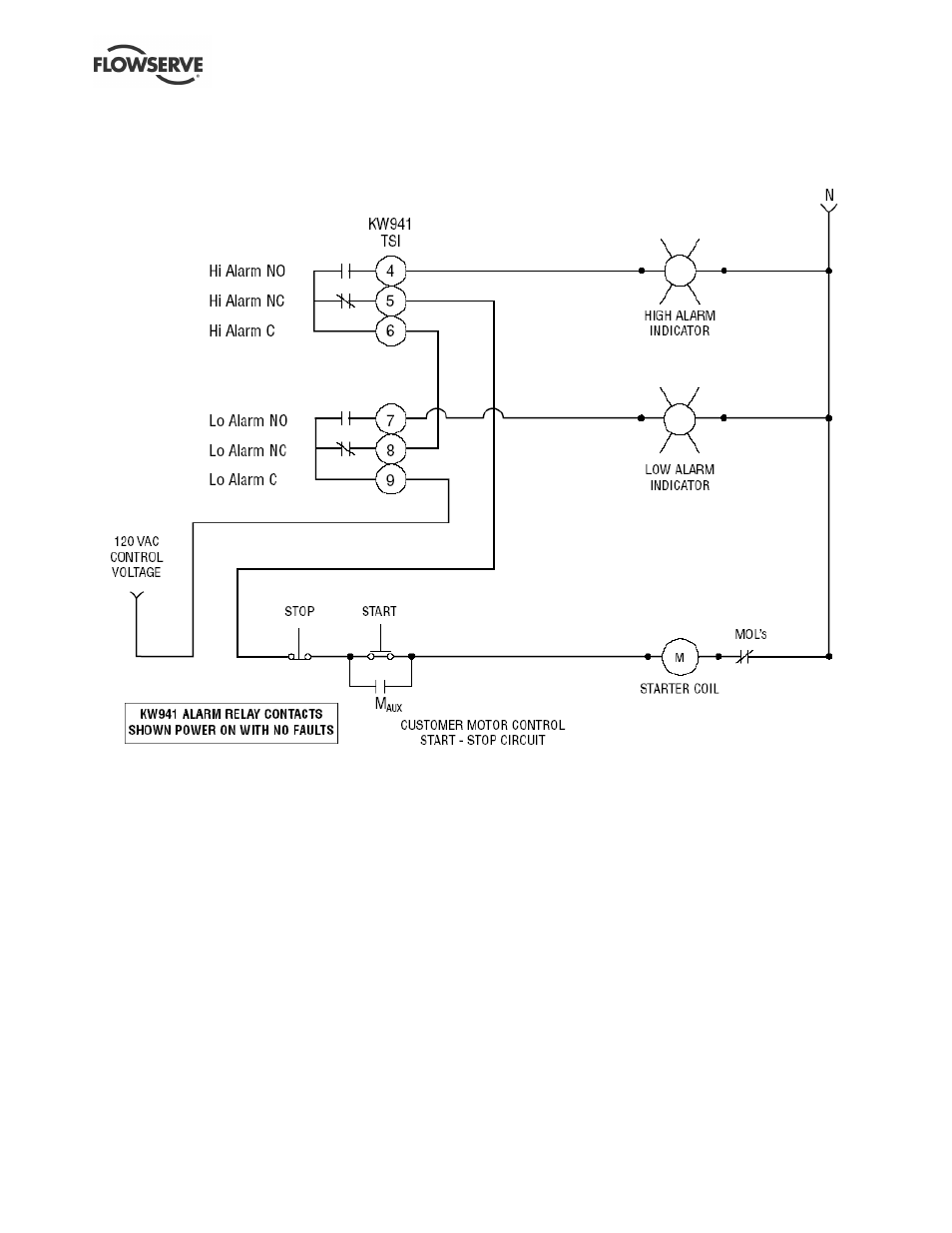

Figure 8.1
Schematic showing wiring arrangement used to shut off motor in case of HIGH or LOW Alarm and
provide 120 VAC to alarm indicators or other devices.
