KW941 Pump Power Monitor USER INSTRUCTIONS ENGLISH 71569285 02-12

Page 22 of 24

flowserve.com

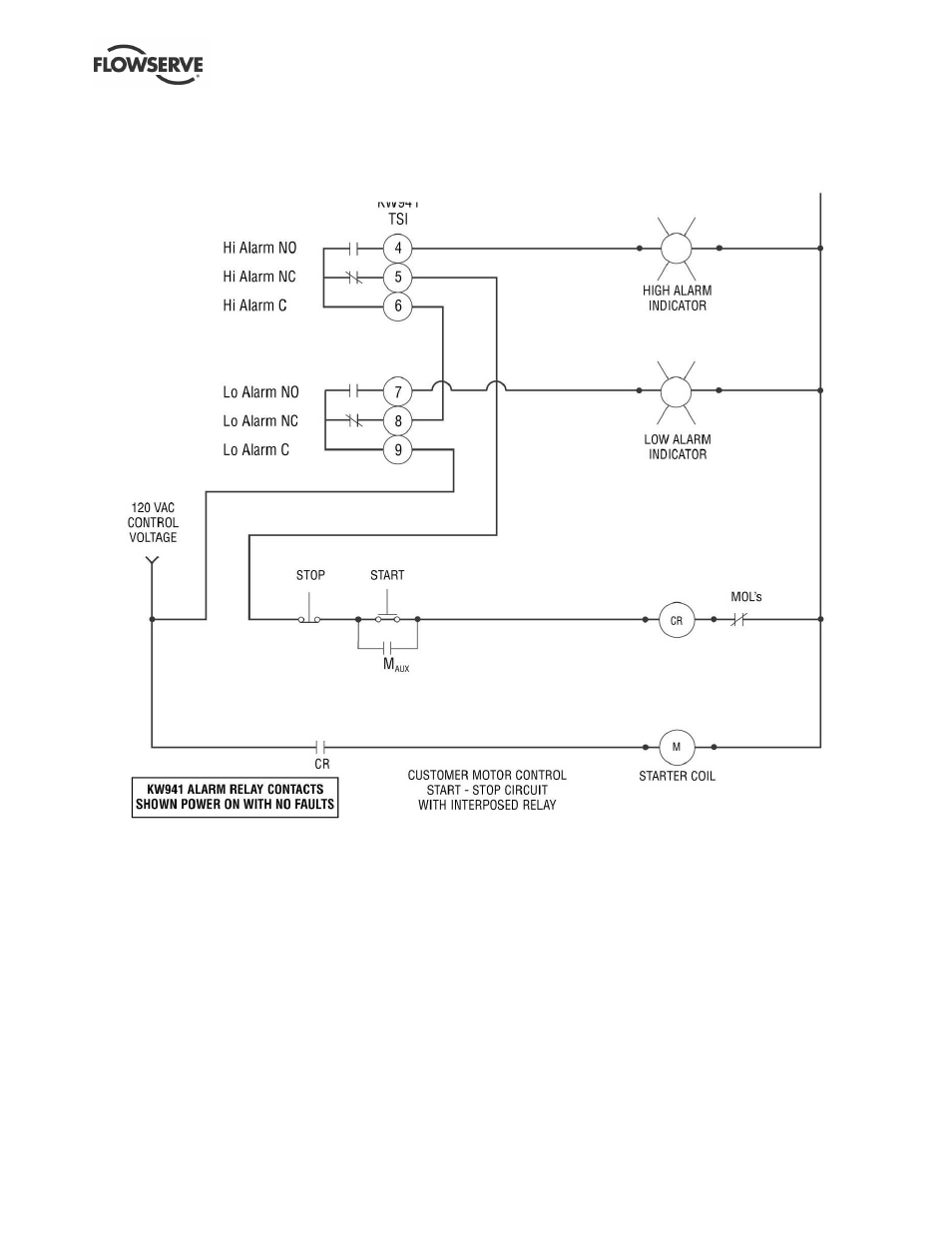

Figure 8.2:
Schematic showing wiring arrangement used to shut off motor in case of HIGH or LOW Alarm and
provide 120 VAC to alarm indicators or other devices (interposed relay).
