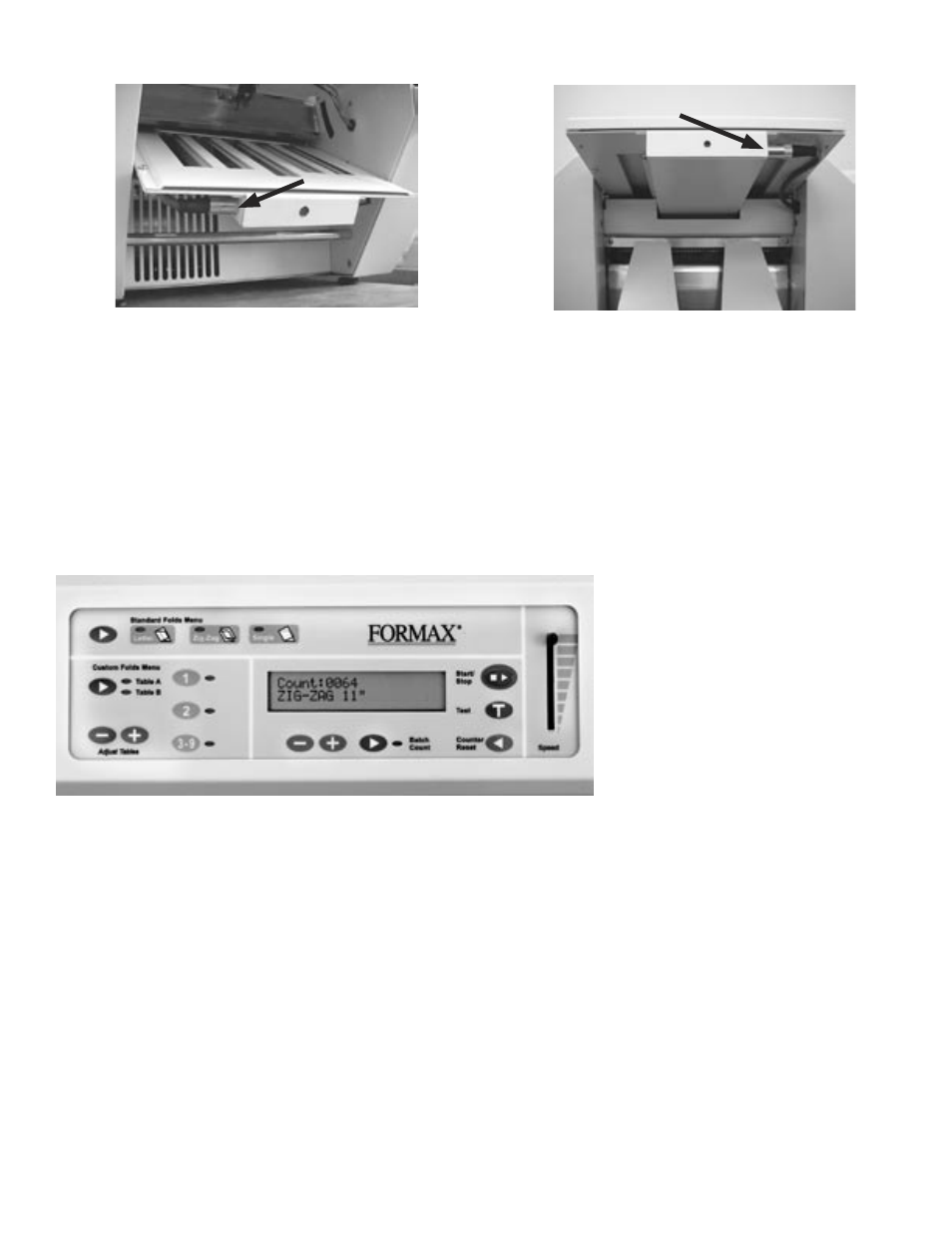

5. Install the lower fold table and plug the cord (figure 2a) into the fold plate receptacle.
6. Install the upper fold table and plug the cord (figure 2b) into the fold plate receptacle.
7. Plug machine into wall outlet.
CAUTION: Do not operate the machine without the fold tables plugged in.
NOTE: The display screen should read (COUNT: 0000) and a fold setting (i.e. Letter, ZigZag, Single or
custom #) when the machine is plugged in and the power is turned on.
Start/Stop...................Starts and stops the machine
Test.............................Allows one form to be folded
Counter Reset............Resets counter and resets faults
Display Screen...........Displays all current functions
Standard Folds Menu:
The Standard Folds Menu consists of three folds; Letter (C-fold), Zig-Zag (Z-fold), and Single (Half fold). By
pressing the green button in the Standard Folds Menu, you can toggle between the fold settings. An indicator
will light up on the fold type selected. These fold types are standard for 11” and 14” forms. The 2052 will
identify the form length 11” or 14” via a sensor.
Custom Folds Menu:
To use a custom fold setting press one of the custom fold buttons (1, 2, 3-9). Press the 3-9 button multiple
times to toggle through the 3 rd and the 9 th custom folds.
CONTROLS
2
