INSTALLATIONS

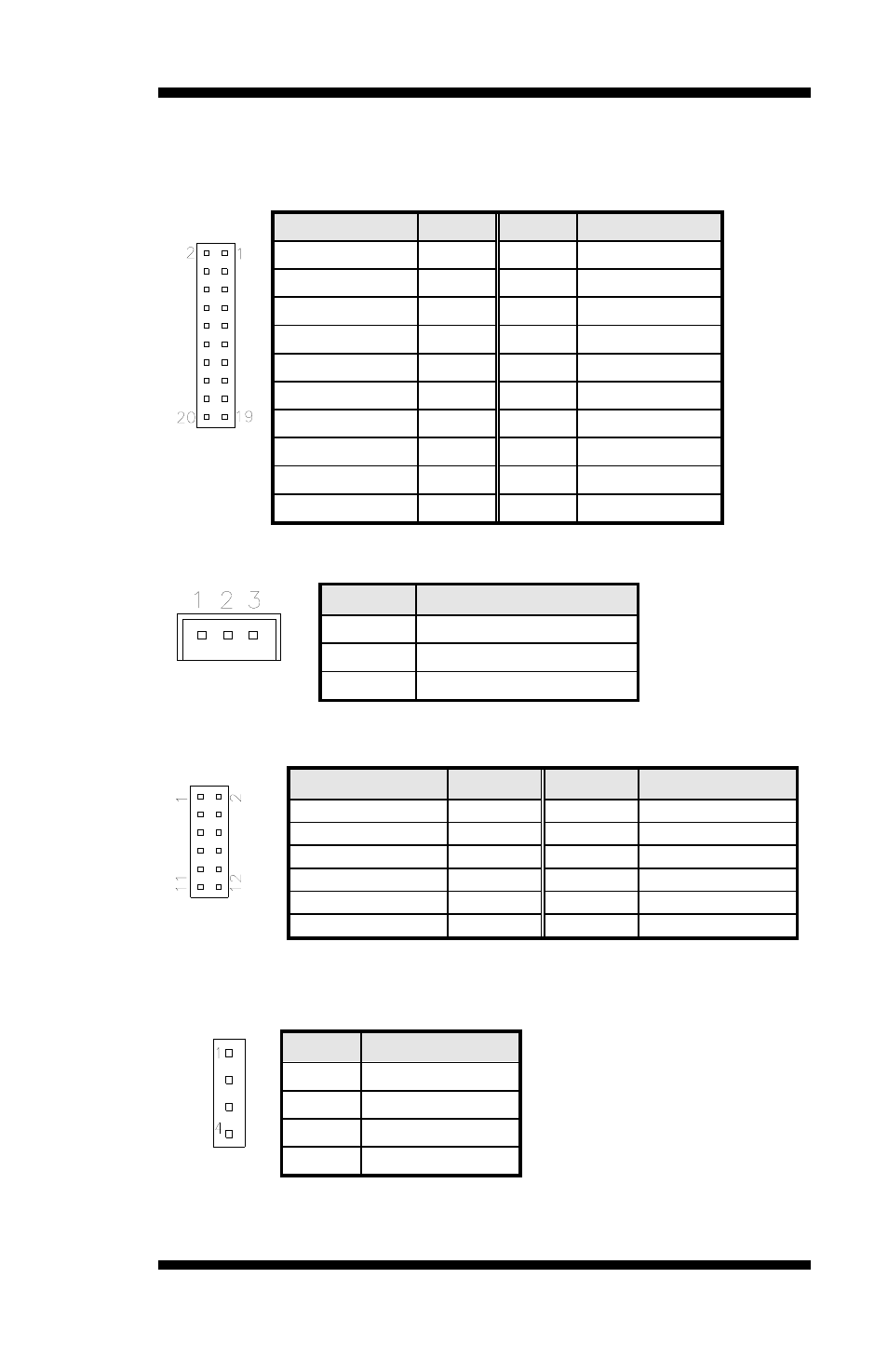

J2, J7: LVDS Connectors (1st channel, 2nd channel)
The LVDS connectors are composed of the first channel (J2) and second
channel (J7) to support 24-bit or 48-bit.
Signal Name
Pin #
Pin #
Signal Name
TX0- 2
1 TX0+
Ground 4 3 Ground
TX1- 6
5 TX1+
5V/3.3V 8 7 Ground
TX3- 10
9 TX3+
TX2- 12
11 TX2+
Ground 14 13 Ground
TXC- 16
15 TXC+
5V/3.3V 18 17 ENABKL
+12V 20
19 +12V
J3: Panel Inverter Power Connector
Pin #
Signal Name
1 +12V
2 ENABKL
3 Ground
J5: External Audio Connector
Signal Name
Pin #
Pin #
Signal Name
LINEOUT R
1
2
LINEOUT L
Ground
3
4
Ground
LINEIN R
5
6
LINEIN L
Ground
7
8
Ground
Mic-In
9
10
VREFOUT
Ground
11
12
Protect pin
J6: CD-In Audio Connector
Pin #
Signal Name
1
CD Audio R
2 Ground
3 Ground
4
CD Audio L
