INSTALLATIONS

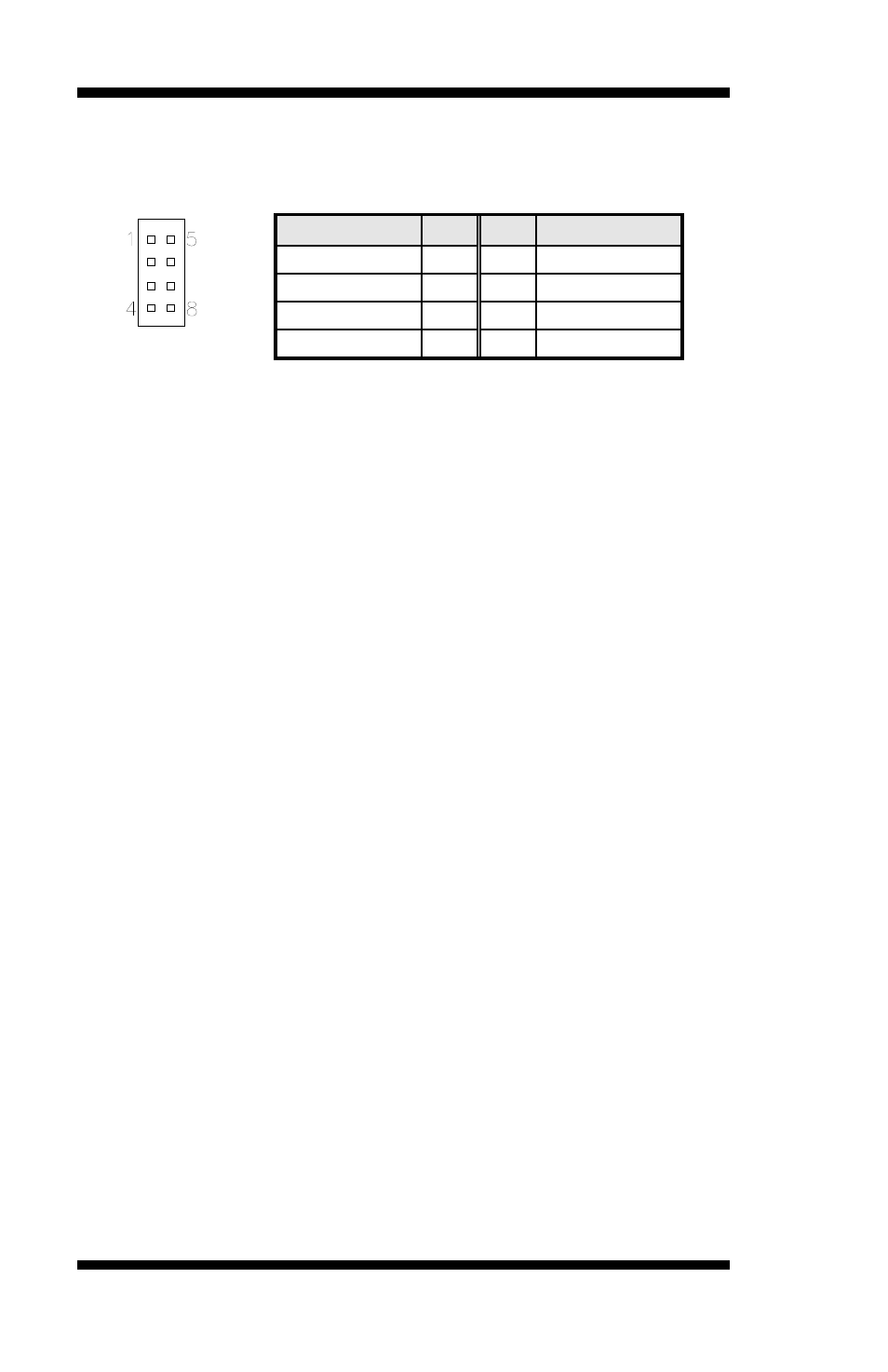

J14, J15: USB Connectors
J14 and J15 are pin headers that support two USB ports. The following
table shows the pin outs of the USB pin header.
J14
Signal Name
Pin
Pin Signal Name
Vcc 1
5
Ground
USB0- 2
6 USB1+
USB0+ 3
7 USB1-
Ground 4
8 Vcc
