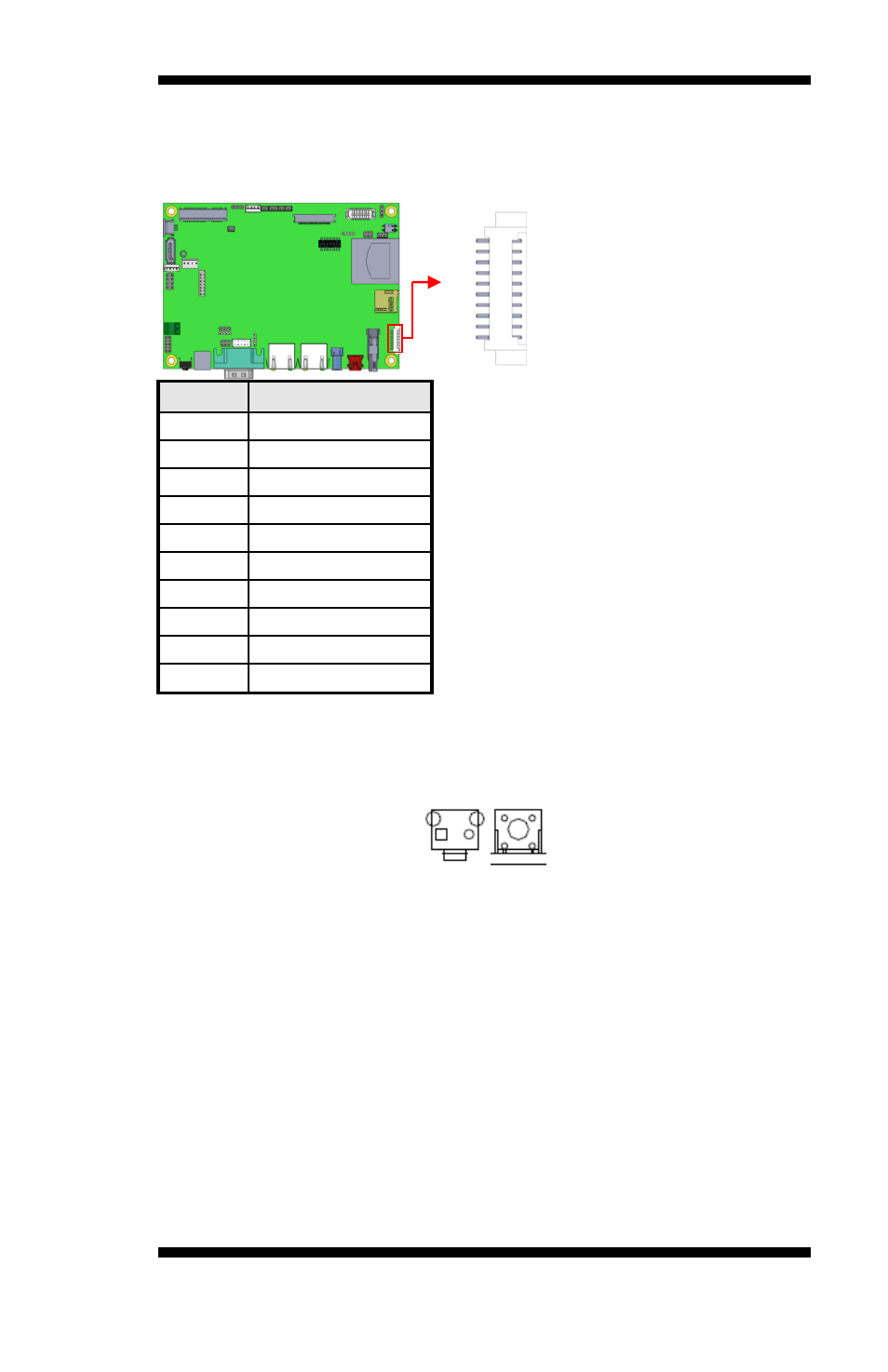

J11: External Key Port
Part Number: 0110-3221100
Description: Molex 53398 1.25mm Wafer R/A 10pin
Pin # Signal Name
1 GND
2 USER_KEY1
3 USER_KEY2
4 NC
5 RESET#
6 NC
7 NC
8 NC
9 +3.3V
10 +5V
Note: USER_KEY1 is used as RETURN key for Android OS.
USER_KEY2 is used as HOME key for Android OS.
SW2: Push Button for Hardware Reset
10
1
