INSTALLATIONS
34 IB112 User’s Manual

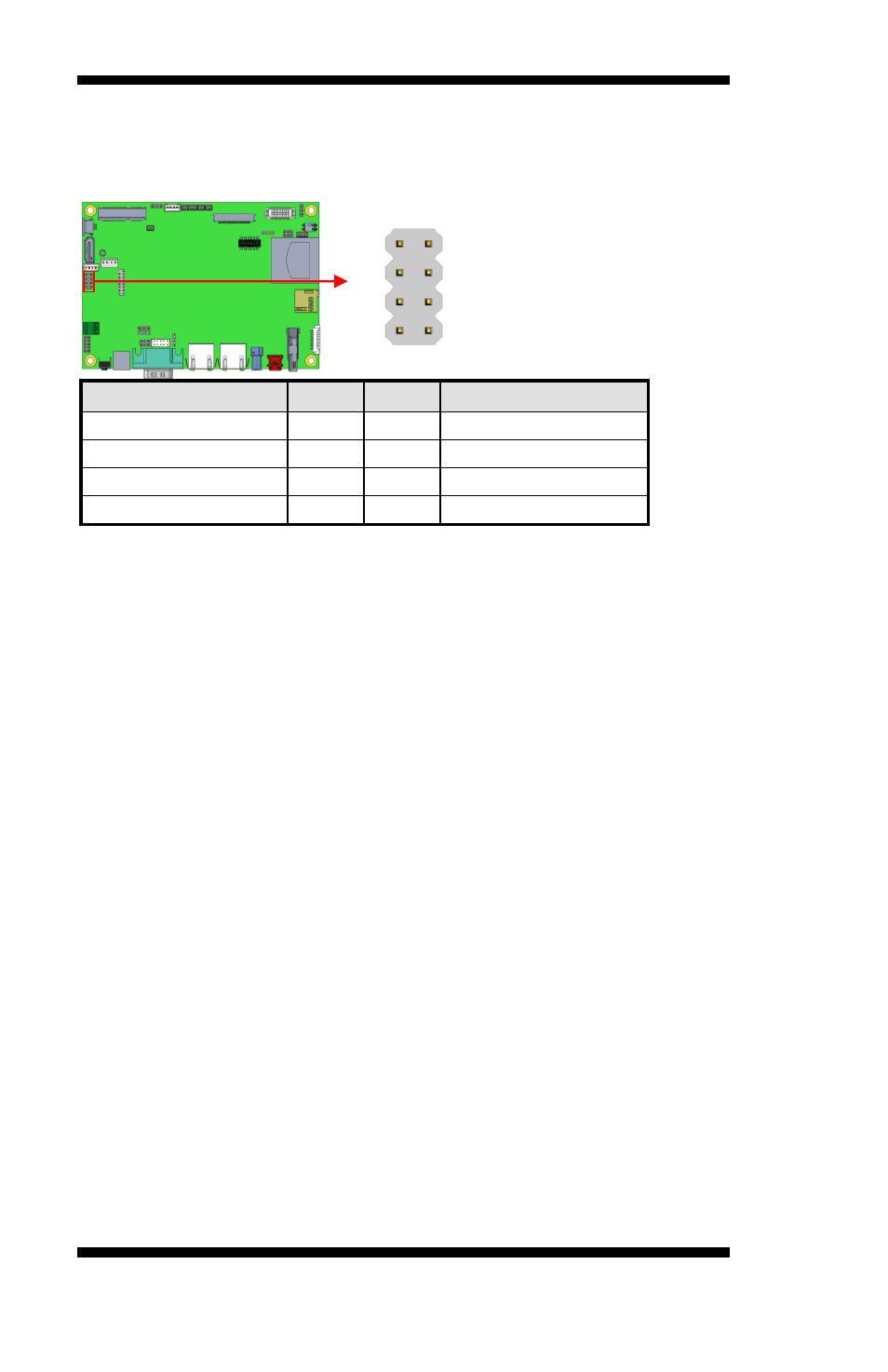

JP8: CANBUS Connector
Part Number: 0126-01-203-080
Description: 2.54*2.54mm S/T Dual Rows 2*4pin
Signal Name Pin # Pin # Signal Name
GND_ISO 1 2 GND_ISO
CAN1_H 3 4 CAN2_H
CAN1_L 5 6 CAN2_L
GND 7 8 GND
8
2
7
1
