17
6.

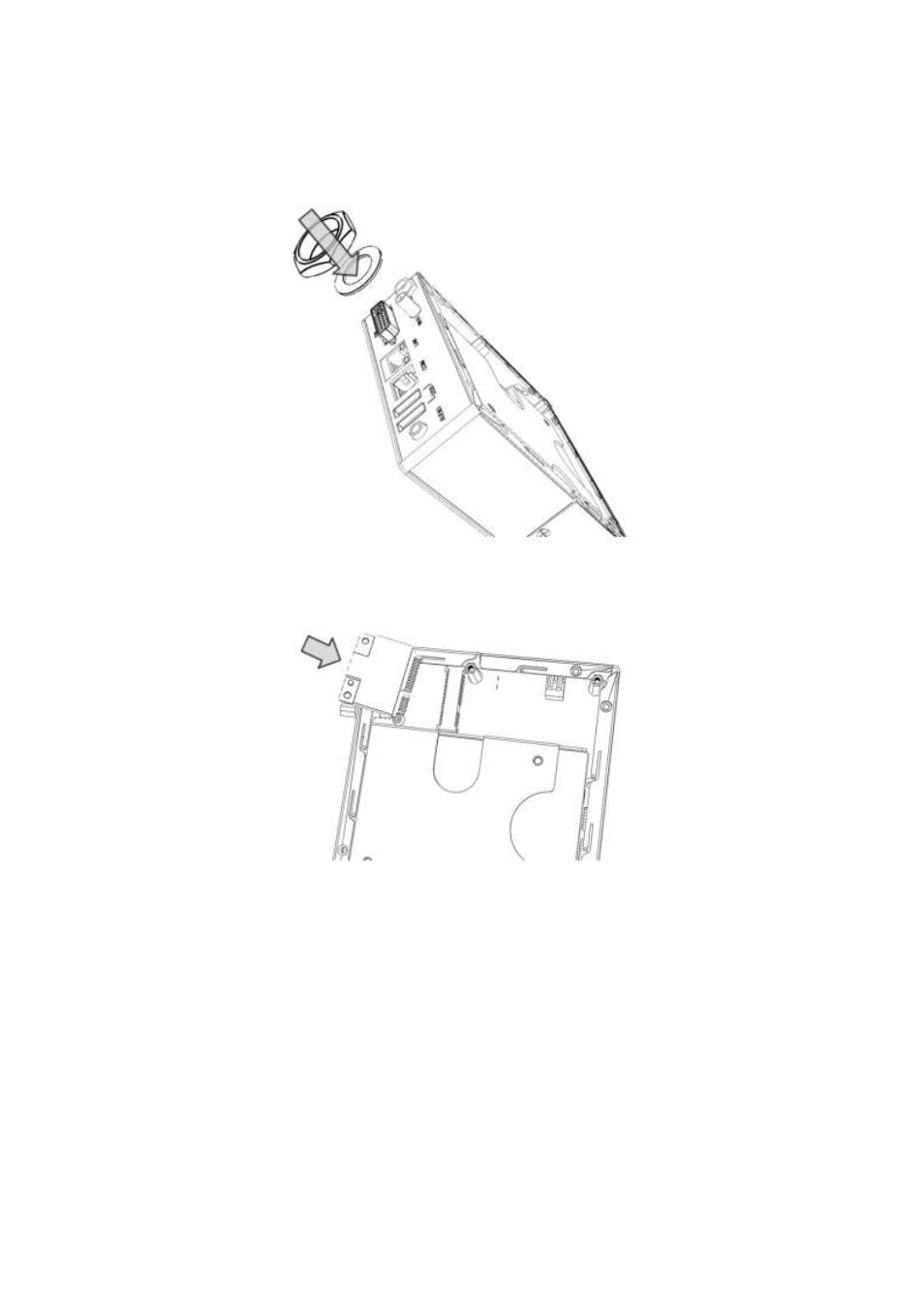

Install the antenna washer, then the hex nut on the SMA connector and use a
hex socket driver or pliers to fix the nut and secure the SMA connector to the I/O
wall.
7.
Install the WLAN card on the mini-PCIe connector and use the screw provided
with the WLAN card to secure the WLAN card in position on point D.
