ikan V8000HDMI-DK Quick Start User Manual
Uick, Tart, Uide
INTRODUCTION
Thank you for purchasing our ikan V8000HDMI LCD Monitor. We know you will be satisfied with our “V” series
monitors. Please visit www.ikancorp.com for more information on our current and future products including our
award winning fluorescent studio lights and light accessories.
PACKAGE INCLUDES
• V8000HDMI HD LCD Monitor
• AC Power Adapter
• Camera Shoe Mount
• DV Battery Plate
(check one)
: [ Sony ] [ Canon ] [ Panasonic ]
• User Guide
GETTING STARTED
1. Powering The Monitor.
a) Plug the AC adapter into the power input jack located on the left side of the monitor (when viewing from the rear).
b) Connect DV battery to the back of the monitor. See User Guide page 3.
c) Connect Pro battery to the back of the monitor. See User Guide page 3.
2. Connecting The Video Source
a) The V8000 HDMI allows you to connect your video cables directly to the rear of the monitor, with support for
HDMI, SD/HD Component, S-Video (Y/C), and Composite (A/V).
b) The V8000 HDMI features professional BNC connectors for your video inputs. If your equipment does not feature
these connectors, you can purchase BNC to RCA adapters at your local electronic store or directly from us at
www.ikancorp.com or call us at 713-272-8822.
Checked by
CONDITIONS OF WARRANTY SERVICE
• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period has expired.
Free Service will not be Provided in the Following Situations:
* Even if the product is still within the warranty period.
• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors etc.
Q
UICK
S
TART
G
UIDE /
V8000HDMI
3903 Stoney Brook Dr. Houston TX 77063. 1-713-272-8822, [email protected] © 2008 iKan Corporation. All right reserved. www.ikancorp.com
1. POWER
Power switch On / Off
2. LAMP
Power signal indicator
3. MENU
Access to all monitor settings: Brightness, Hue, etc.
4. >
Flip image horizontally
While in MENU mode, toggle as up adjust setting
5. <
Flip image vertically
While in MENU mode, toggle as down adjust setting
6. GUIDES
On-screen guide: 4:3 or Widescreen
7. ASPECT
Aspect ratio: 4:3 or Widescreens
8. INPUT
Video mode: HDMI, A/V (Composite), S-Video, SD/HD Component

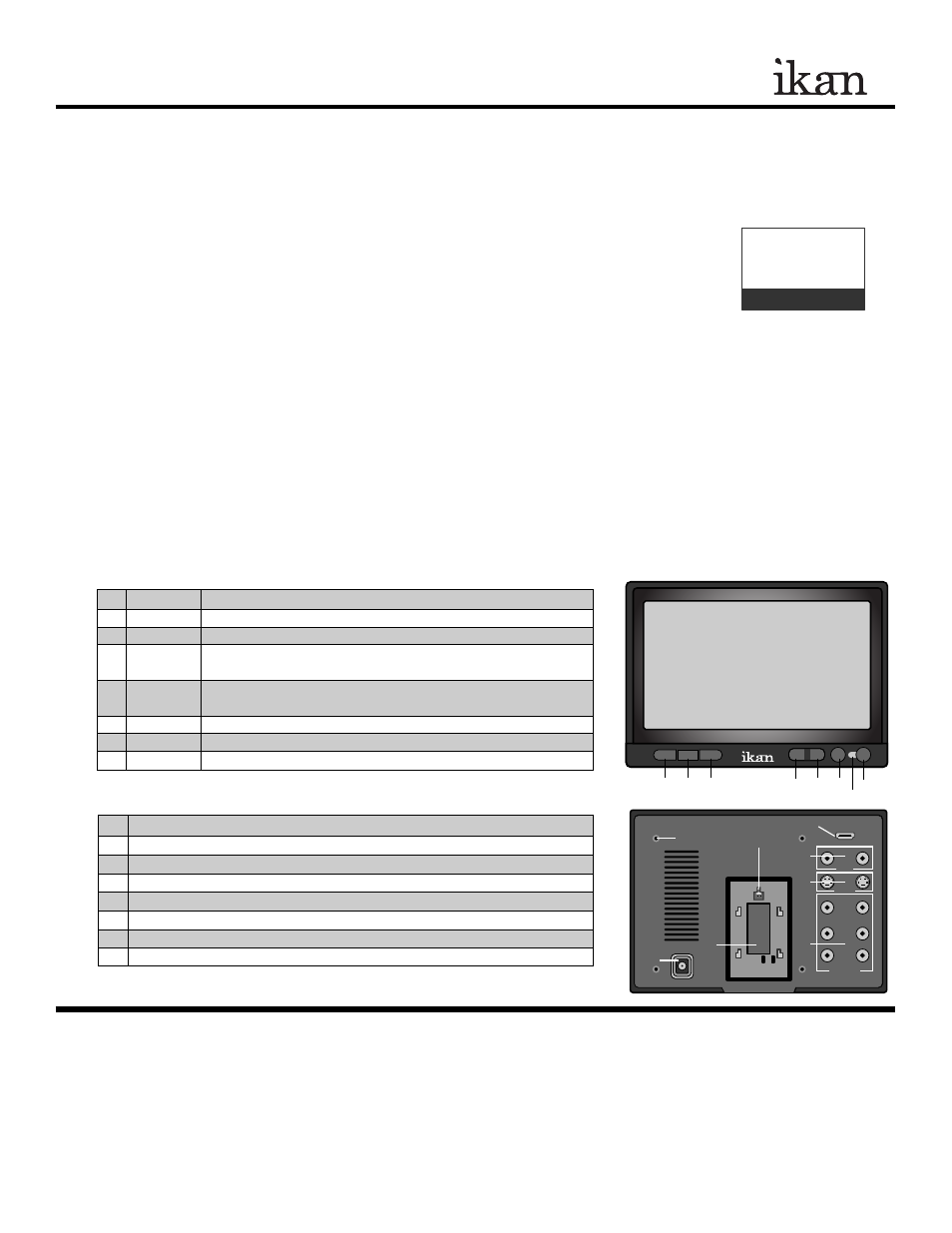

MONITOR DIAGRAMS
1. HDMI - In for HDMI signal
2. A/V - In/Out for standard definition composite signal
3. S-Video - In/Out for standard definition S-Video signal
4. Component - In/Out for standard definition, 720p, and 1080i HD signals
5. DV Battery Plate Slot
6. Pro Battery DC Connection
7. 100mm Vesa Holes
8. DC 12V Power Connection
GUIDES
INPUT
ASPECT
POWER
MENU
>
<
1
2
3
4
5
6
7
8
POWER
VIDEO
HDMI
OUT
IN
Y
Pb
Pr
S-VIDEO
COMPONENT
1
2
3
4
6
5
7
8
