Undercounter Refrigerators and Freezers
PAGE 9
6. dooR(s) And REFRIGERAtoR
dRAWER(s)
Your Kairak full-size undercounter model door(s) are field re-hingeable. If re-hinging
is required, please contact our in-house service department at 800-833-1106 for
instruction.
6A - REMoVInG tHE dooR And InstAllInG REF dRAWERs:
Doors are supplied standard on all TU Series Full-Size Undercounter models. However,
we have engineered our refrigerator models (only) with a drop-in feature that allows you
to easily convert door(s) into two 6” deep drawers or three 4” deep drawers.
The door(s) on the refrigerator models (only) can easily be converted to drawers in the
field. To begin the process, open the door to its maximum position. Support the non-
hinged end of the door so minimum movement occurs. When the bolts from the lower
hinge plate are removed, remove the lower hinge plate and then the door from the top
hinge bracket plate and then the door from the top hinge bracket. The hinge plate pin
and plastic bushing will remain in the top hinge plate.
notE: the lower hinge plate is under spring tension.

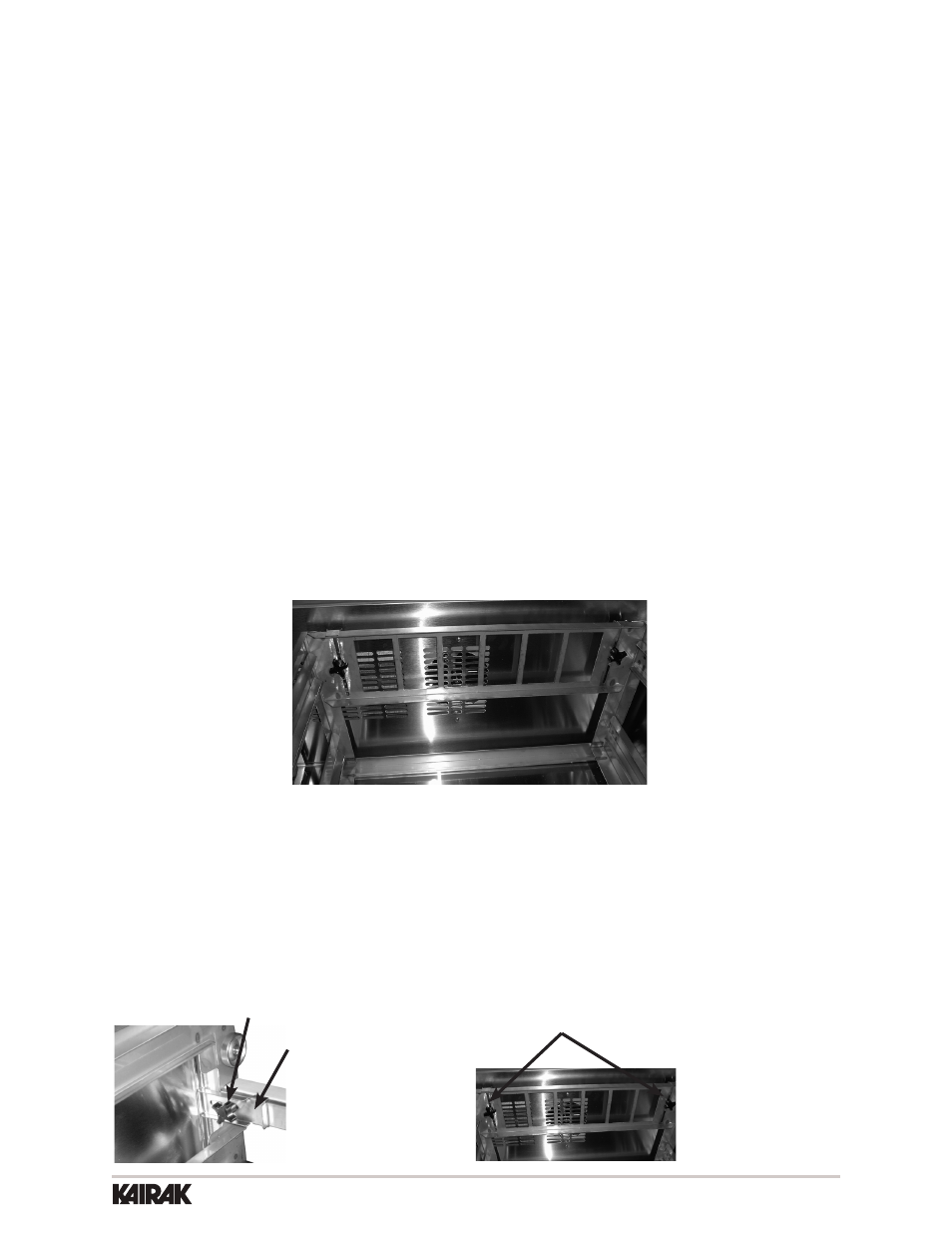

Once the door(s) have been removed, Insert drawer frame as shown below (Figure 5).
Once the drawer frame has been inserted, the drawer frame module can be installed by
tighting the black front and back clamping knobs (2 of each) located on the cross rail
locks and liner locks. Slide the front cross rail locks towards the center of the drawer
frame module and allow the liner locks to drop down from the top of the liner. Insert the
door frame module push towards the back of the unit. The entire frame assembly is now
installed and ready for use.
notE: Repeat process for multiple drawer(s) inserts.
FRont clAMPInG KnoBs
FRont cRoss
RAIl locKs
BAcK clAMPInG KnoBs
FIGURE 5
