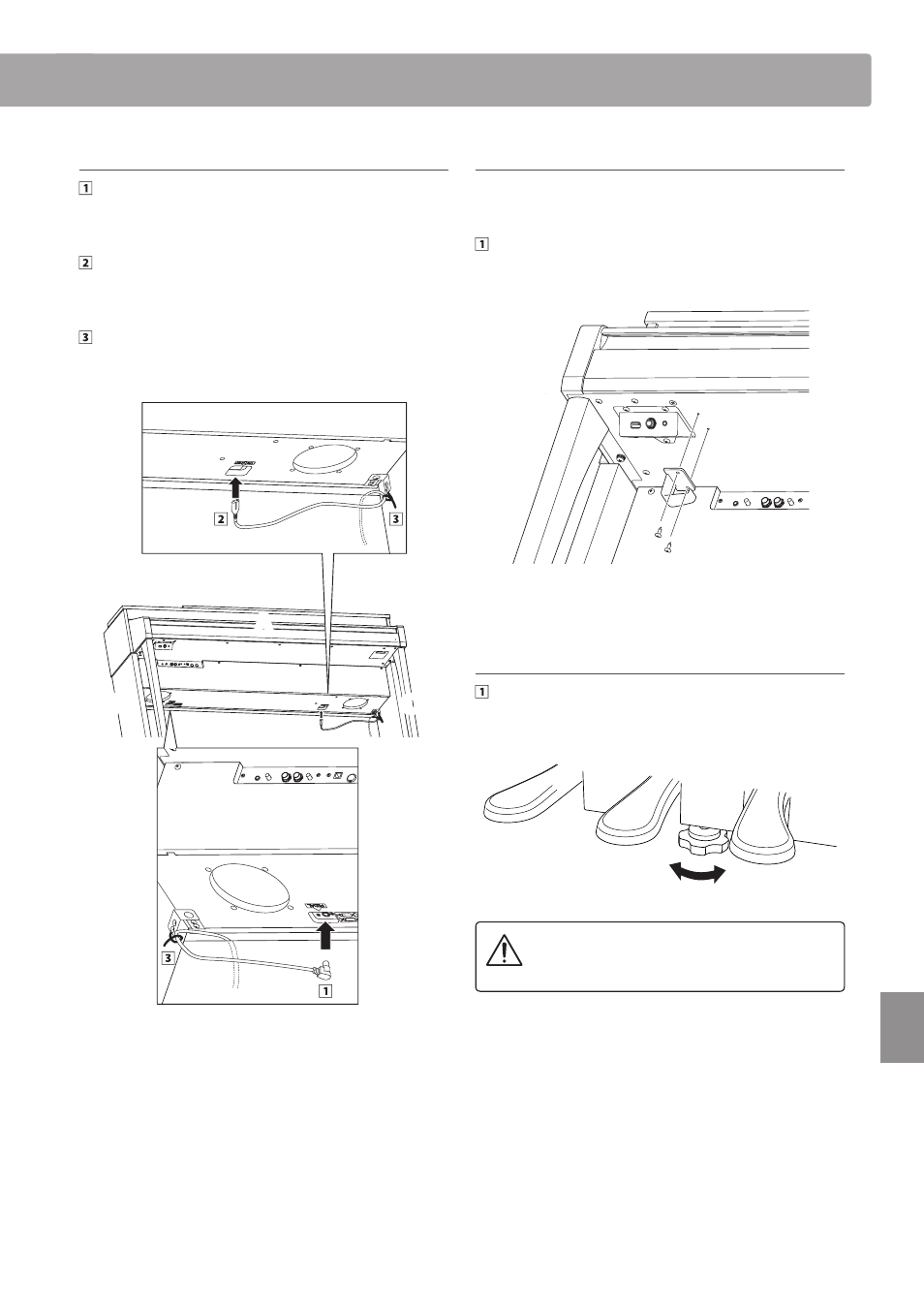

5. Connecting the pedal and power cables
Pass the pedal cable (extending from the rear of the pedal
board) through the aperture to the front of the main body,
and connect to the PEDAL terminal.
Connect the power cable to the AC IN terminal on the
underside of the main body, then pass the cable through the
back board aperture, and out to the rear of the instrument.
With the power and pedal cables connected, use the binders
to fix the cables in place and tidy their appearance.
A
B C
6. Attaching the headphone hook (optional)
A headphone hook is included with the CA97/CA67 digital piano
and can be used to hang headphones when not in use.
If desired, attach the headphone hook to the underside of
the main body using the two tapping screws provided.
7. Adjusting the pedal support bolt
Turn the pedal support bolt anti-clockwise, extending the
bolt until it makes contact with the floor and supports the
pedals firmly.
When moving the instrument, always adjust or
remove the pedal support bolt, then readjust
when the instrument is in its new position.
