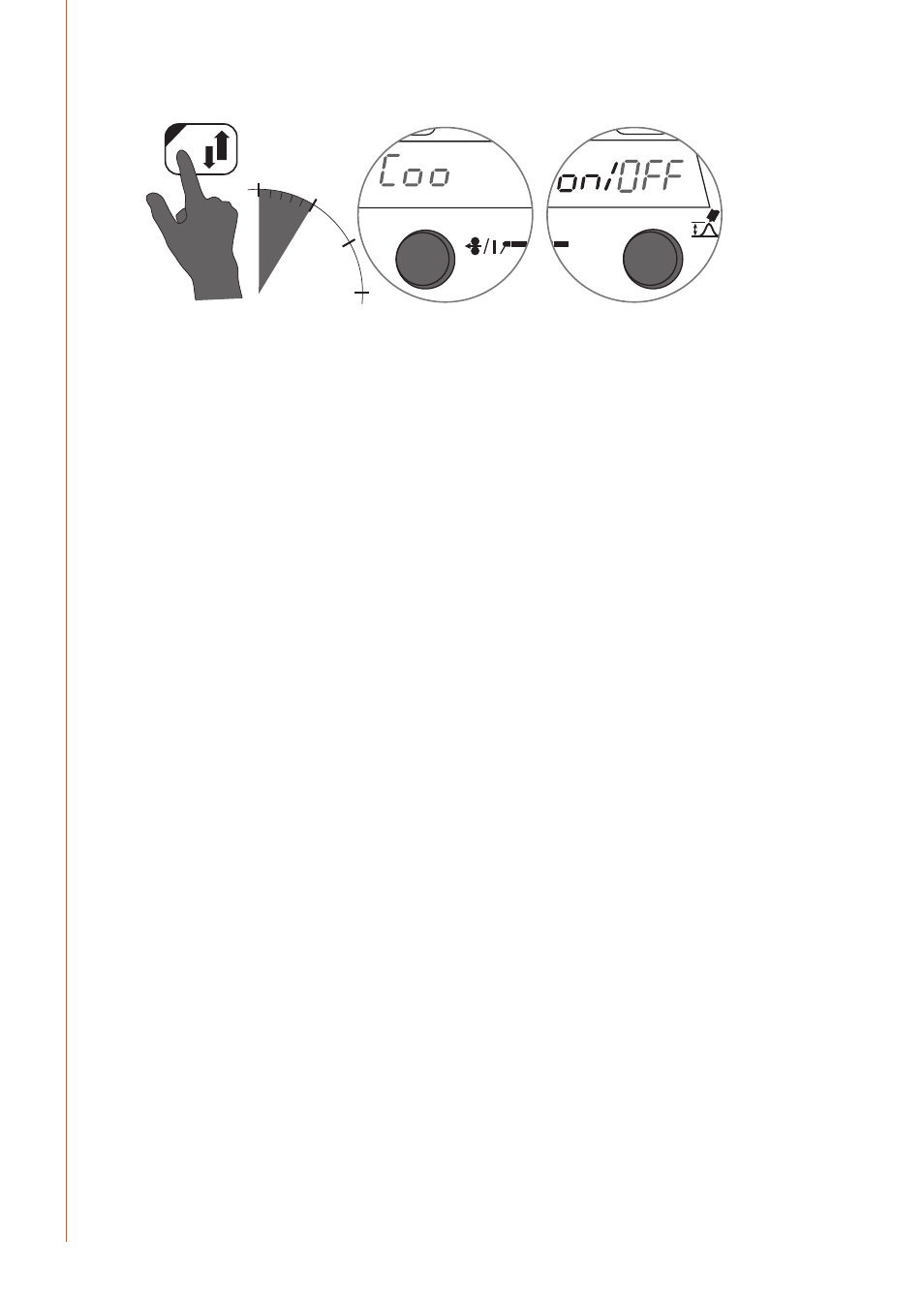

The factory default setting for FastMig Pulse is AUTO. If a cooling unit is not connected and
the operator tries to establish air cooled operation together with an air cooled gun, Err 27
is displayed. To establish air cooled operation, select cooler ‘OFF’. This is done in the ‘System
Config Menu’ as follows: Press the Menu button on the P65 power source panel. Move the
menu display arrow (via panels left-hand up-down arrow keys) to select ‘System Config Menu’
and then press select button. Choose ‘Water Cooling:Auto’ and change via control knob to
setting ‘Water Cooling:OFF’, then press Back/Exit. Cooler will then be set to the ‘OFF’ state for
air cooled operation. Reset power source via on/off switch and continue welding.
When selected, the operation of the cooling unit is automatic, starting when welding
commences. When welding stops the pump will continue operation for approx. 5 min,
so reducing the gun and the cooling liquid to ambient temperature. Read the operation
instructions for the FastCool 10 unit.
2.17 MXF hanging kit
The MXF 63, 65 and 67 wire feed units can be hanged from a special hanging kit available as
an accessory. This allows the wire feed unit to be suspended above the work area.
3. CONTROL PANEL OPERATIONS
MXF wire feeders can be connected to either FastMig Pulse, FastMig KMS or FastMig M power
sources.
PF 63 and PF 65 control panel are compatible with FastMig Pulse.
SF 53W and SF 54 or SF 51 and SF 52W panels enable compatibility with FastMig KMS power
sources.
MR 200, MR 300, MS 200 and MS 300 panels are compatible with FastMig M power sources.
FastMig MXF 63, 65, 67
