Kemppi Adaptive 180 - Manual (Page 13)

EN
NOTE! When driving the wire in to the gun, do not point the gun at yourself or
others or put, for example, your hand in front of the tip, because the cut wire end
is extremely sharp. Also, do not put your fingers near the feed rolls, because they
might get squeezed between the rolls.

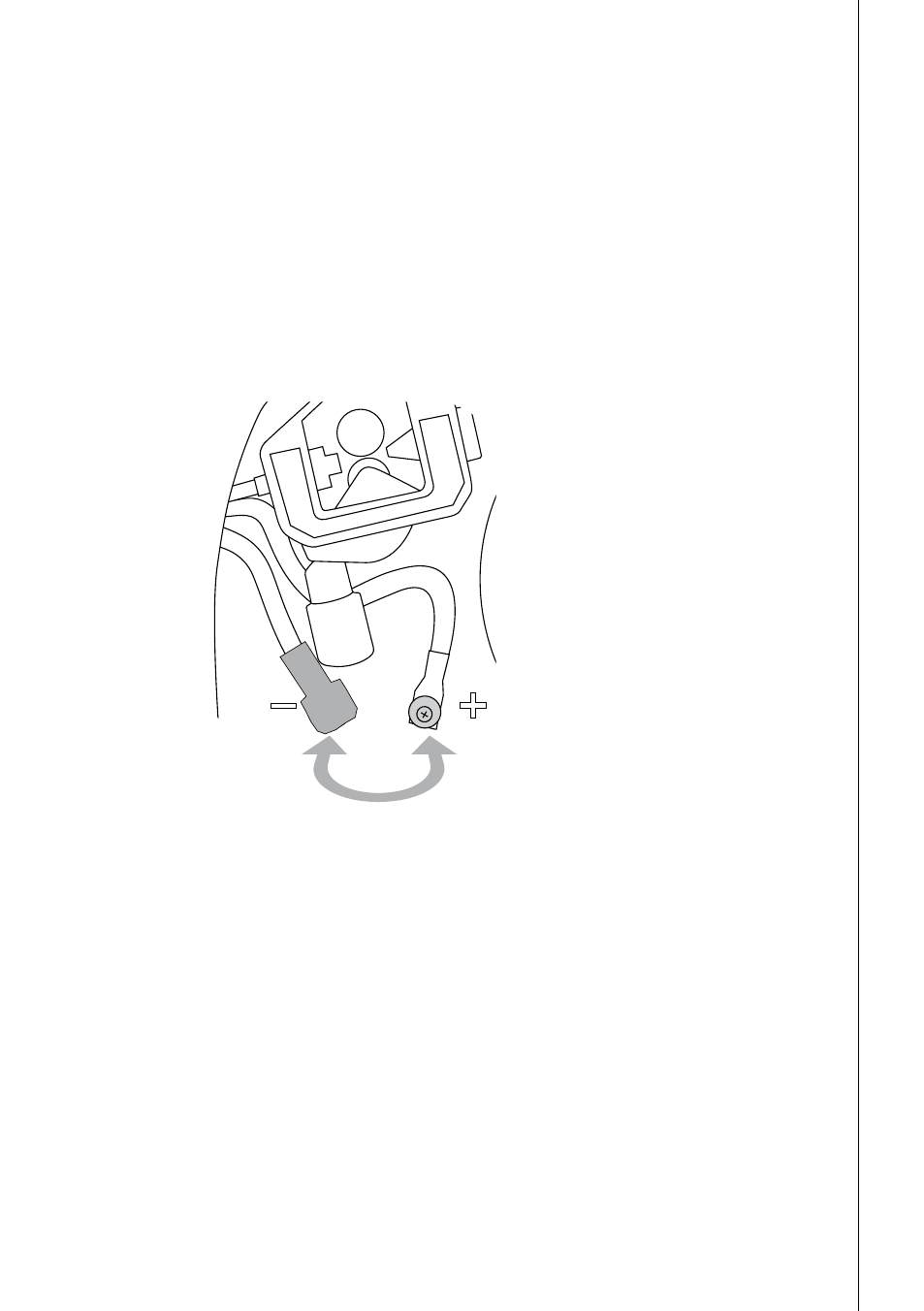

2.5.3 reversing polarity
Some filler wires are recommended to be welded with the gun in the –pole,
so the polarity should be reversed. Check the recommended polarity from
the filler wire package.
1. Disconnect the machine from the mains.
2. Bend the rubber cover of the earthing cable’s pole in such way that the
cable can be disconnected.
3. Remove poles’ tightening nuts and washers. Note the correct order of
the washers!
4. Interchange the cables.
5. Install the washers in place and close the tightening nuts to spanner
tightness.
6. Put the rubber cover of the earthing cable’s pole firmly in place. The
rubber cover must always protect the earthing cable’s pole.
