14
CB-7012, CB-7014, CB-7017 User’s Manual

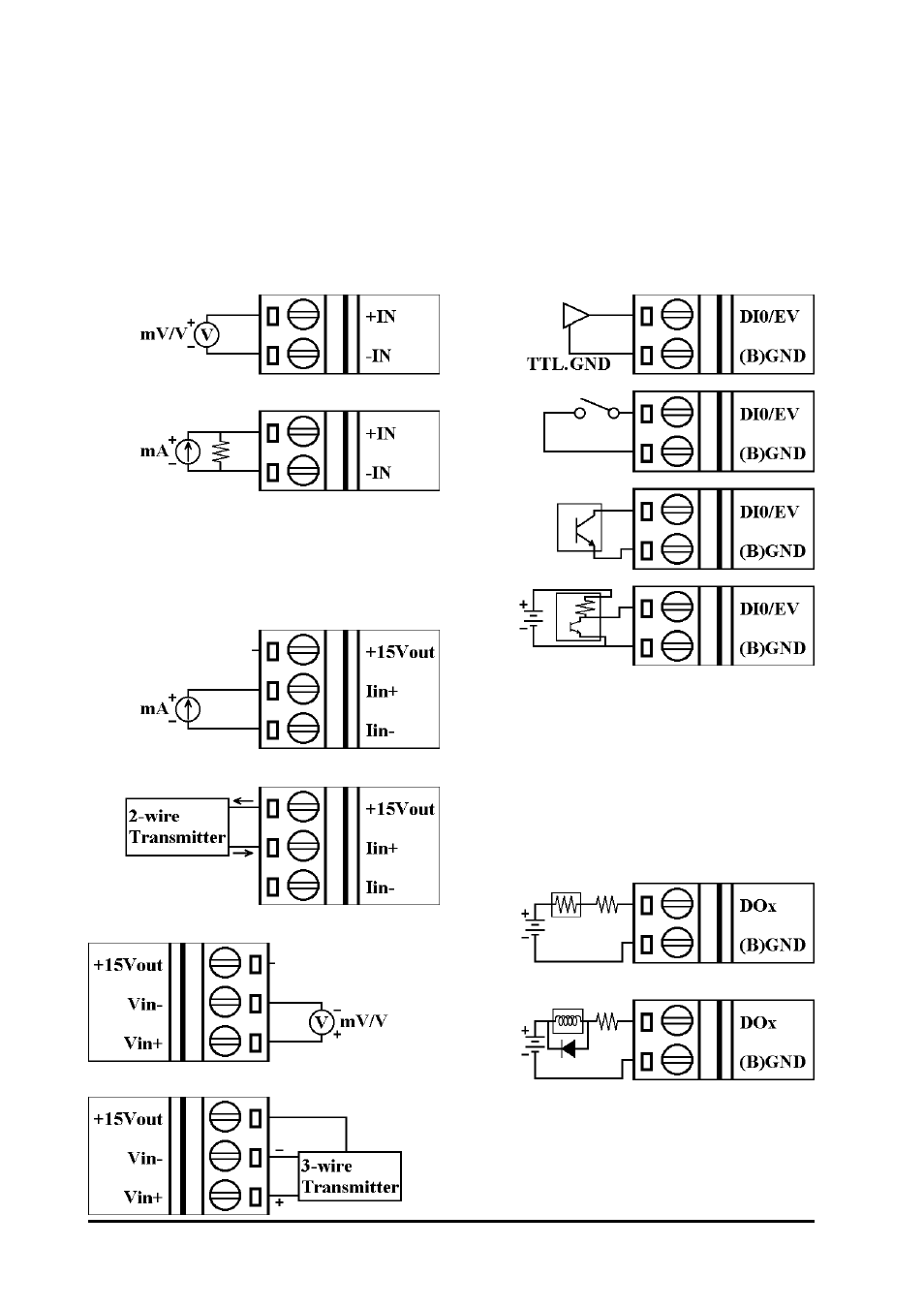

1.5 Connections
C B - 7 0 1 2 / 1 2 D / 1 2 F / 1 2 F D
Analog Input Wire Connection
CB-7014D Analog Input Wire
Connection
CB-7012/12D/12F/12FD/14D
Digital Input Wire Connection
CB-7012/12D/12F/12FD/14D
Digital Output Wire Connection
