15
CB-7012, CB-7014, CB-7017 User’s Manual

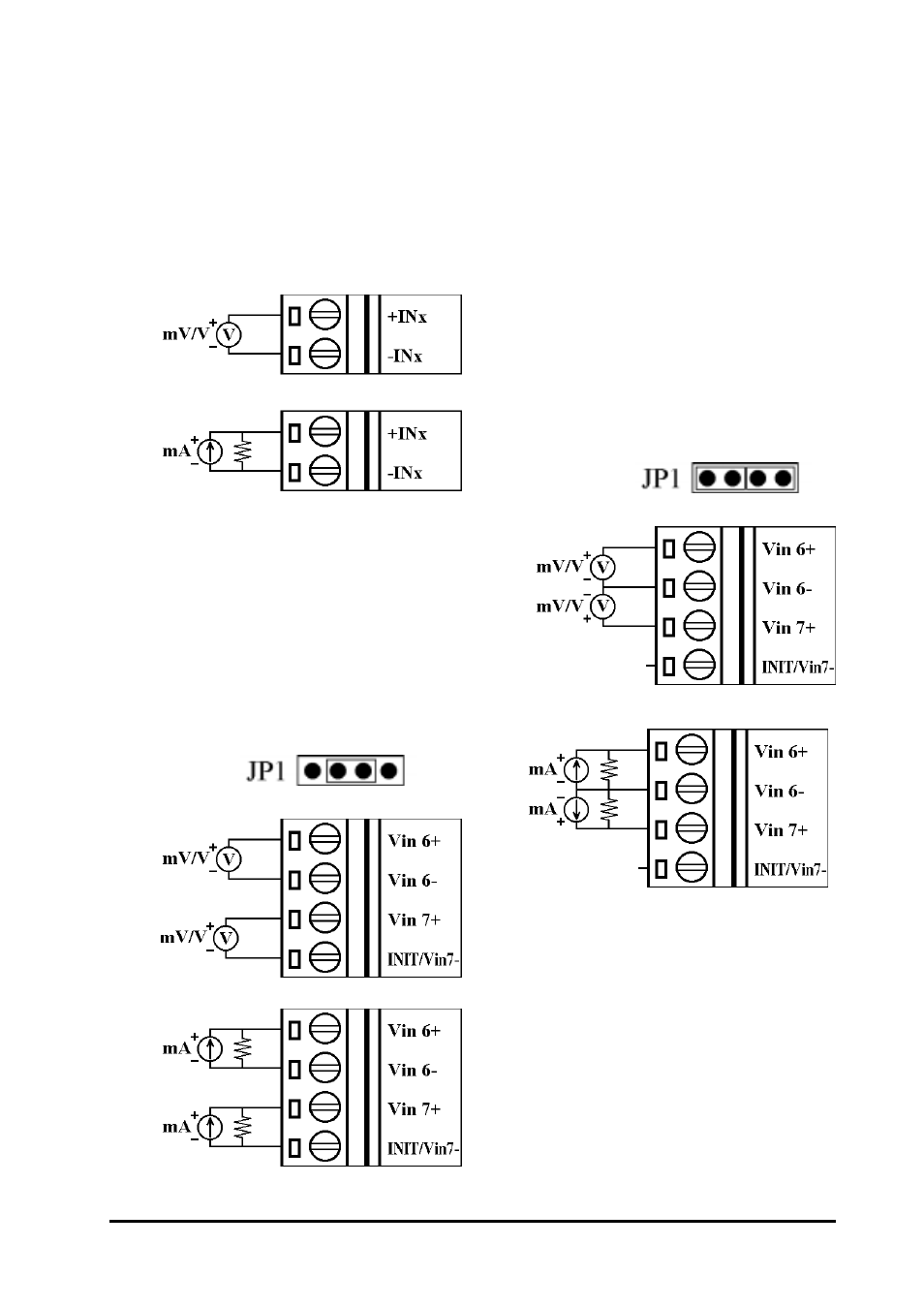

CB-7017/17F Analog Input
Channel 0 to 5 Wire Connection
CB-7017/17F Analog Input
Channel 6 and 7 Wire Connec-
tion, when the jumper JP1 set-
ting is 8 differential mode.
CB-7017/17F Analog Input
Channel 6 and 7 Wire Connec-
tion, when the jumper JP1 set-
ting is INIT* mode. (Remove
cover to gain access to jumper
JP1.)
