USB-1208FS User's Guide
Functional Details
11

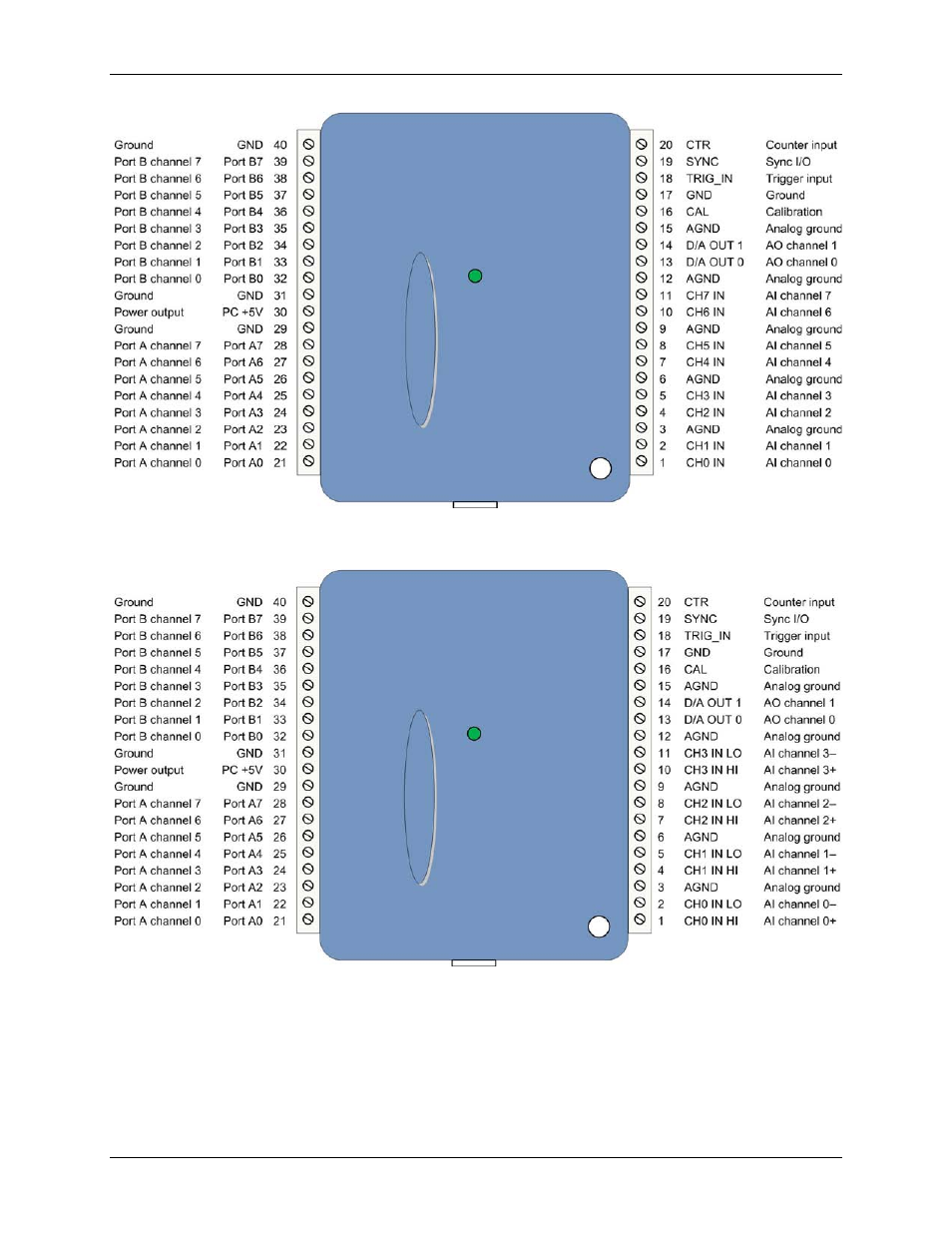

Figure 3. Single-ended mode pinout
The differential mode pinout is shown in Figure 4.
Figure 4. Differential mode pinout
Signal connections
Analog input
You can connect up to eight single-ended analog input connections to
CH0 IN
through
CH7 IN
, or four
differential connections to
CH0 IN HI/LO
through
CH3 IN HI/LO
.
