USB-2020 User's Guide Installing the USB-2020
Cabling
For signal connections and termination, you can use the CIO-MINI40 screw terminal board and C40FF-x cable.

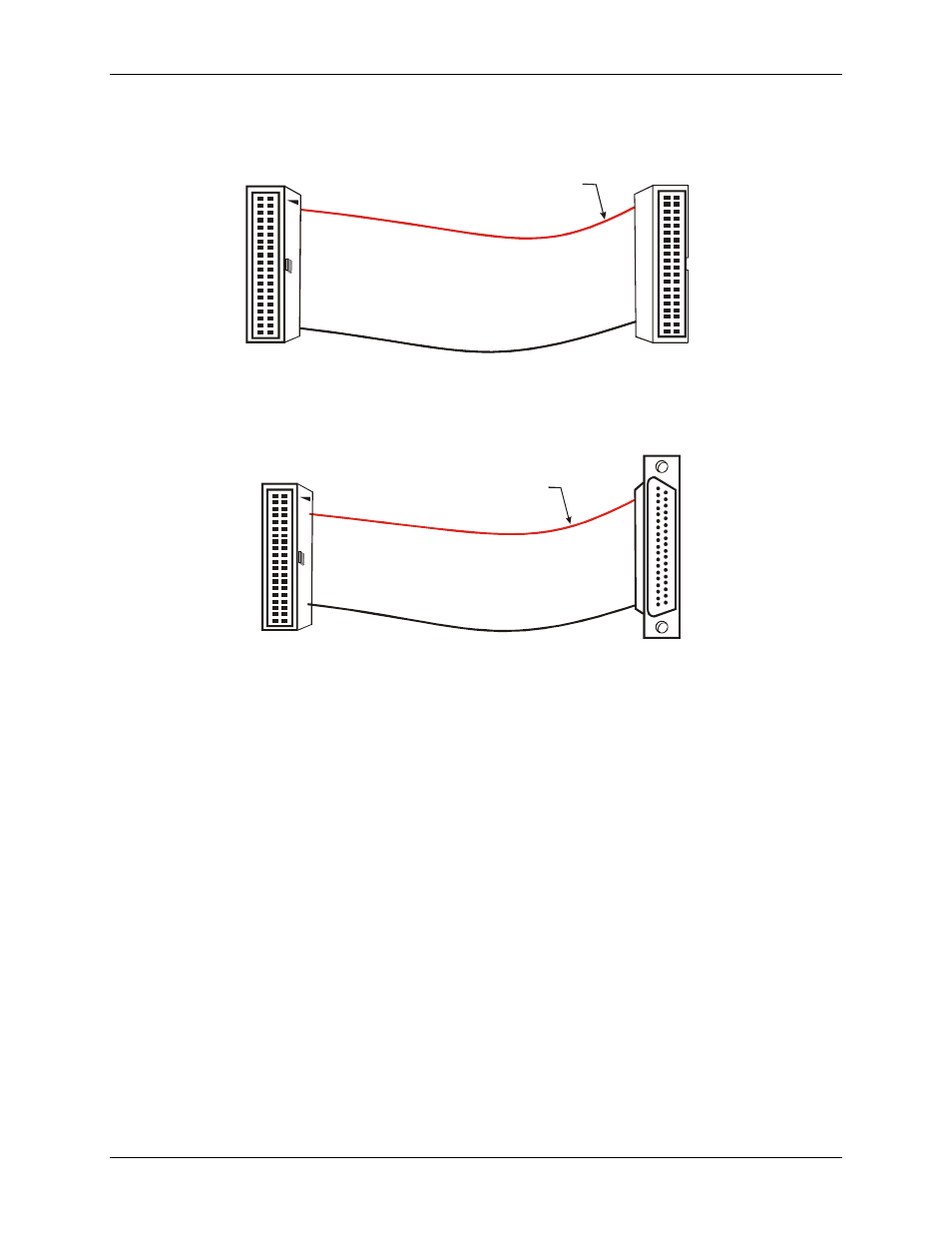

Figure 2. C40FF-x cable
For connections to 37-pin connectors or boards, you can use the C40-37F-x or C40F-37M-x cable.
Figure 3. C40-37F-x cable
Field wiring, signal termination and conditioning
You can use the 40-pin CIO-MINI40 universal screw terminal board to terminate field signals and route them
into the USB-2020 using the C40FF-x cable:
You can use the following MCC screw terminal boards to terminate field signals and route them into the
USB-2020 using the C40-37F-x cable directly:
 CIO-MINI37
– 37-pin universal screw terminal board.
 SCB-37 – 37-conductor, shielded signal connection/screw terminal box.
The red stripe
identifies pin # 1
40-pin Female
IDC Connector
1 2
39 40
40-pin Female
IDC Connector
1 2
39 40
20
1
37
19
The red stripe
identifies pin # 1
37-pin Female
Dsub Connector
40-pin Female
IDC Connector
1 2
39 40
